US ALUMINUM CAPFA4226D3 Air Conditioner and Coil System

Product Description

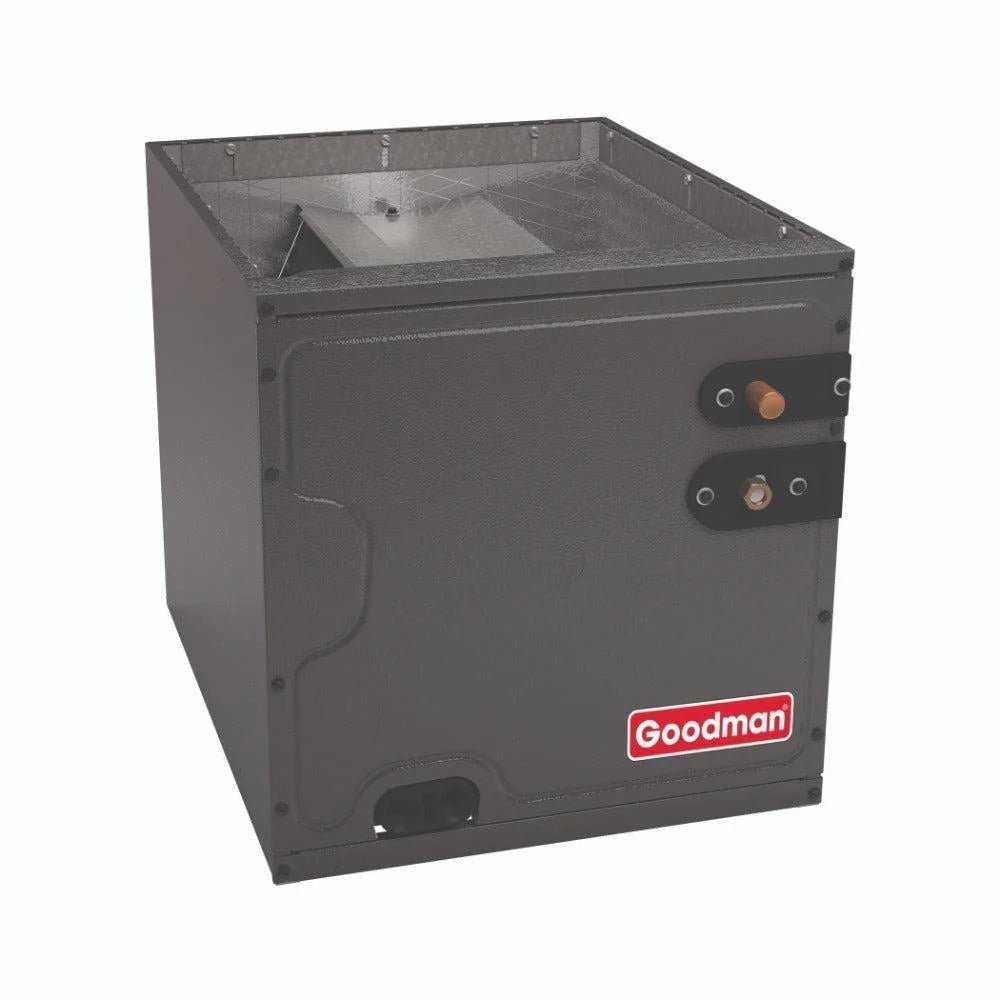

The US ALUMINUM CAPFA4226D3 is an evaporator coil designed for both upflow and downflow applications. It is compatible with air conditioners and heat pumps. This product boasts an all-aluminum construction which improves durability and heat transfer efficiency. The coil fits a cabinet width of twenty-four and a half inches. It is also suitable for R-32 refrigerant and is certified by AHRI, ETL, and ISO.

• Cased A coil design for easy installation.
• Compatible with R-32 refrigerant for efficient cooling.
• Operates in both upflow and downflow configurations.

Product Highlights

This evaporator coil is built for various HVAC applications, providing reliable performance.

Product Information

Standard Information

• Product Category: Air Conditioner & Coil Package
• Operating Mode: Cooling

Technical Specifications

• Refrigerant Type: R-32
• Coil Width: 24 inches
• Configuration: Upflow/Downflow
• Compressor Stages: Single Stage
• DOE Regional Compliance: North
• Capacity: 2.5 tons
• Cooling Capacity: 30000 BTU
• SEER2: 13.4
• EER2: 11.2
• Product Weight: 46 pounds
• Certifications: AHRI, ETL, ISO
• AHRI Reference Number: 215287949
• Installation Location: Outdoor
• Maximum Sound Level: 74 dB
• Voltage: 208/230 Volts
• Frequency: 60 Hz
• Product Height: 26 inches
• Product Width: 24 1/2 inches
• Product Depth: 21 inches
