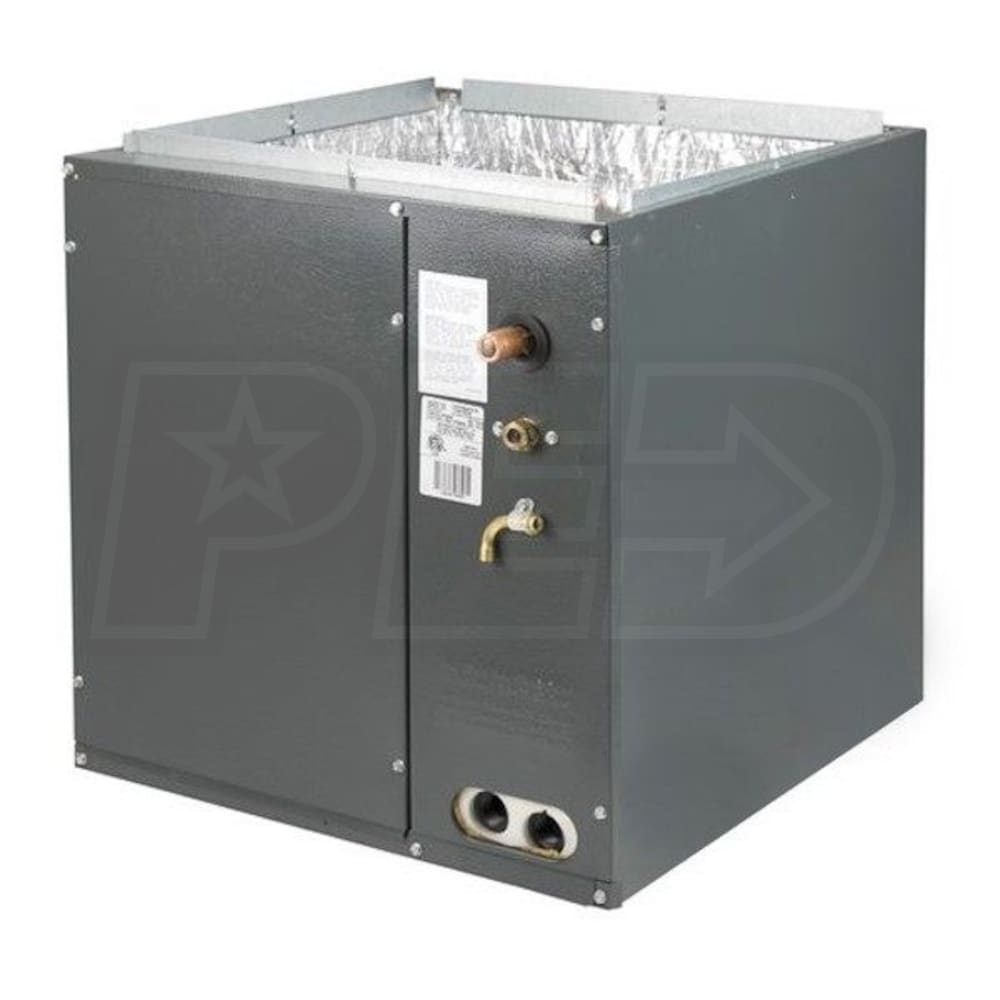

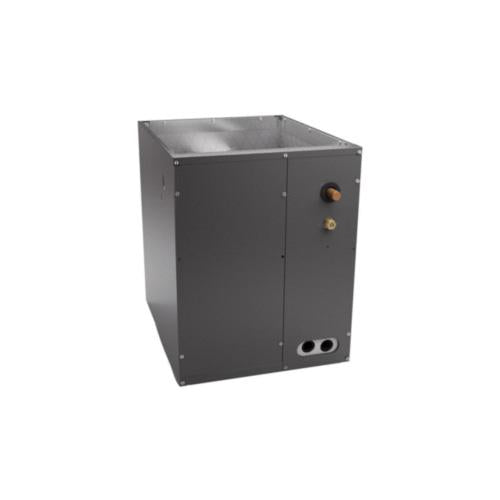

US Aluminum CAPFA1818A6 1.5 Ton Upflow/Downflow A Coil

Product Description

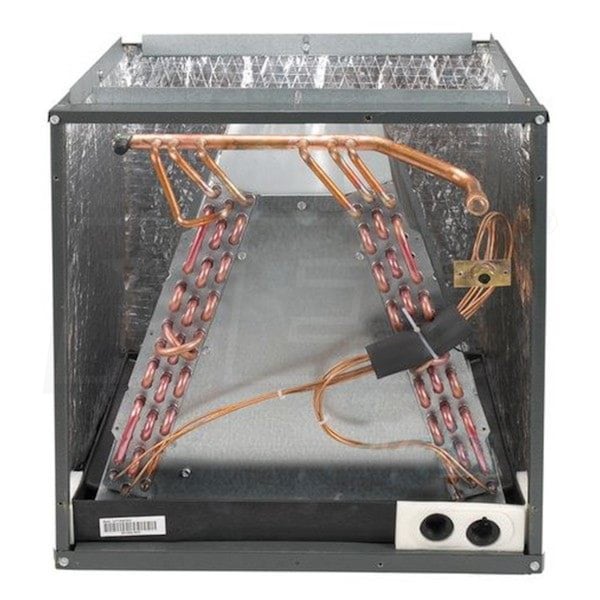

The US Aluminum CAPFA1818A6 is a cased A coil that serves split system air conditioners and heat pumps. This coil is versatile, as it is suitable for both upflow and downflow installations. Constructed with all-aluminum tubing and corrugated aluminum fins, it provides durability and efficiency.

• All-aluminum evaporator coil
• Compatible with R-410A refrigerant
• Includes a rust-resistant, thermoplastic drain pan

Product Highlights

This coil is made for optimal cooling performance in various home climates.

Product Information

Standard Information

• MPN: CAPFA1818A6
• Brand: US Aluminum

Technical Specifications

• Series: CAPFA Series
• Coil Type: Type A
• Tonnage: 1.5 ton
• Capacity: 1.5 Tons
• Configuration: Downflow, Upflow
• Refrigerant Type: R-410A
• Connection Size: 3/4 inch
• Connection Type: FNPT
• Suction Connection Size: 3/4 inch
• Liquid Connection Size: 3/8 inch
• Piston Size: 0.055 inch
• Material: Aluminum
• Finish: Painted
• Dimensions: 18 inches H x 14 inches W x 21 inches D
• Product Weight: 23 pounds
• Cooling BTU: 18000
• Suitable For Use With: Air Conditioners, Heat Pumps
• Casing: Cased
• Style: A Coil
• ETL Listed: Yes
• AHRI Certified: Yes
