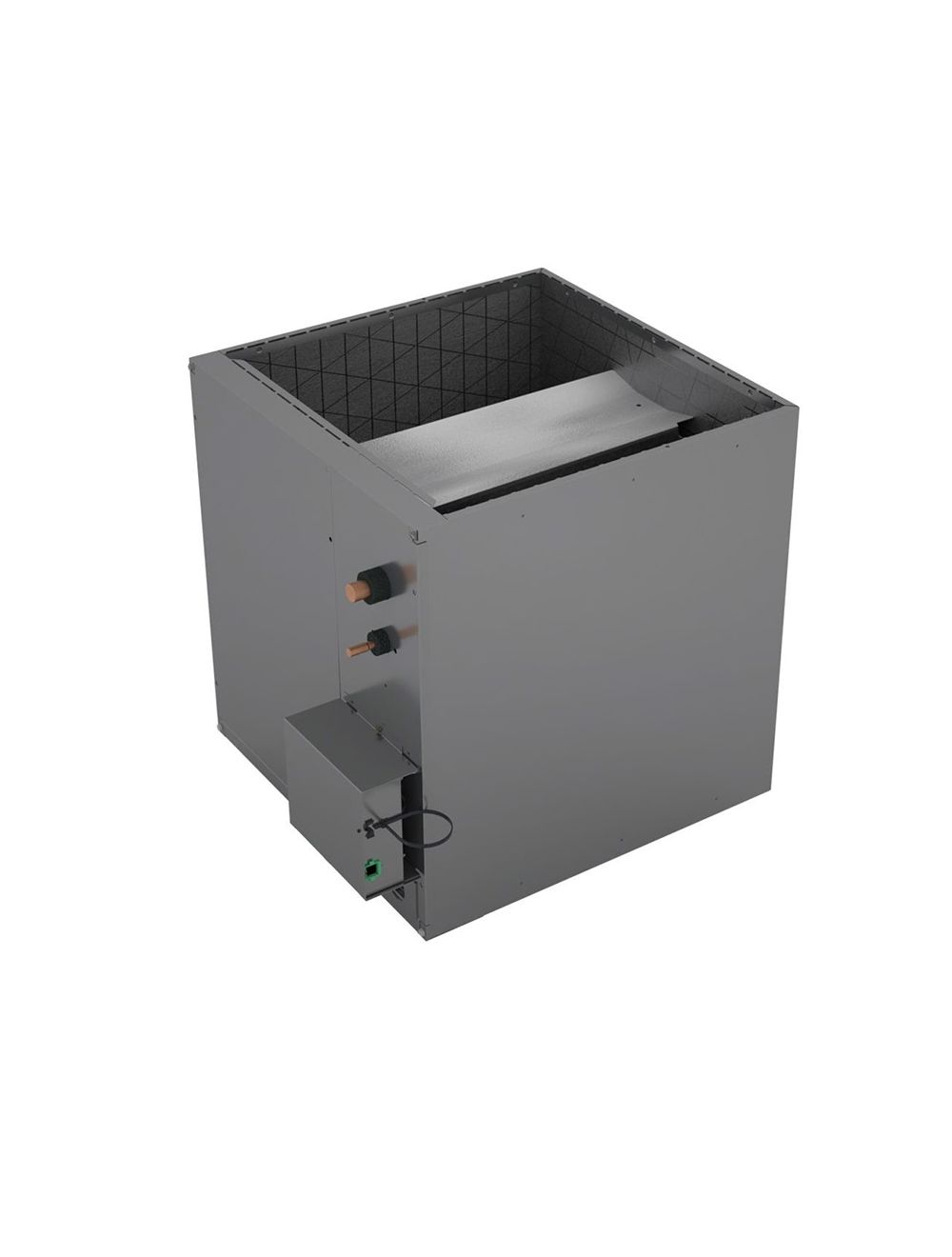

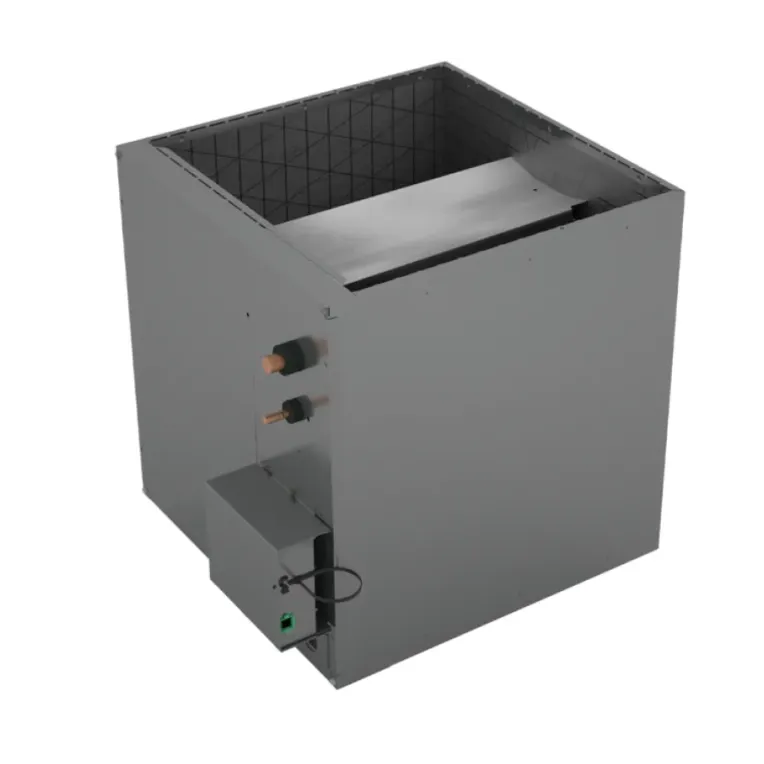

US Aluminum CAPEA6030D3 5.0 Ton Horizontal A Coil

Product Description

The US Aluminum CAPEA6030D3 is a cased A coil suitable for horizontal airflow applications. This product features an all-aluminum design with fins and grooved tubes, enhancing heat transfer efficiency. The galvanized, embossed cabinet protects against air leaks and adds durability. A factory-installed internal thermostatic expansion valve allows compatibility with R-32 refrigerant. The coil also has foil-faced insulation that reduces condensate formation and a UV-resistant drain pan with secondary connections.

• All-aluminum coil for effective heat transfer
• Durable cabinet to minimize air leakage
• Compatible with R-32 refrigerant

Product Highlights

This model is designed to provide optimal performance in cooling applications, making it a reliable choice for HVAC professionals.

Product Information

Standard Information

• Cooling Capacity: 5.0 Ton
• Refrigerant Type: R-32

Technical Specifications

• BTU Cooling: 60,000
• Suction Line Diameter: 7/8 inch
• Liquid Line Connection Size: 3/8 inch
• Certifications: AHRI, ETL, ISO
• Warranty: 10 Year Limited Parts
• Cabinet Width: 24.5 inches
• Depth: 21 inches
• Height: 24.5 inches
• Weight: 67 lbs.
• TXV Installed: Yes
• Airflow Orientation: Horizontal
• Coil Type: A Coil
