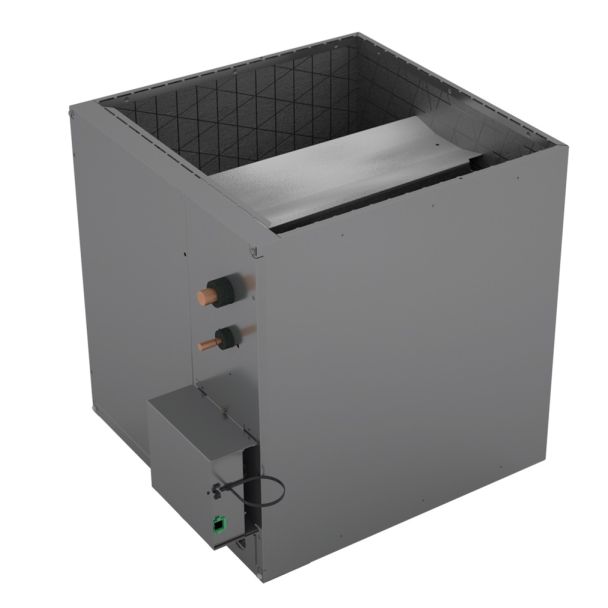

US Aluminum CAPEA2422B4 Evaporator Coil - Upflow/Downflow - 2 Ton

Product Description

The US Aluminum CAPEA2422B4 is an efficient cased A-coil evaporator for both upflow and downflow installations. This coil is optimized for use with R-410A refrigerant, ensuring effective cooling. Constructed with aluminum tubing and enhanced with corrugated aluminum fins, this unit provides reliable operation.

• Rust-resistant thermoplastic drain pan
• Factory-installed electronic expansion valve (EEV)
• Galvanized, leather grain-embossed finish

Product Highlights

This evaporator coil is ETL listed and AHRI certified, confirming its quality and performance standards.

Product Information

Standard Information

• Model: CAPEA2422B4
• Series: CAPEA Series

Technical Specifications

• Coil Type: Cased A
• BTU Rating: 22000 Btu/hr
• Tonnage: 2 Ton
• Configuration: Downflow, Upflow
• Refrigerant Type: R-410A
• Liquid Line Size: 3/8 inch
• Suction Line Size: 3/4 inch
• Material: Aluminum
• Finish: Galvanized/Leather Grain Embossed
• Height: 22 inches
• Width: 17.5 inches
• Depth: 21 inches
• Weight: 48 lbs
• Warranty: 10 Year Parts
