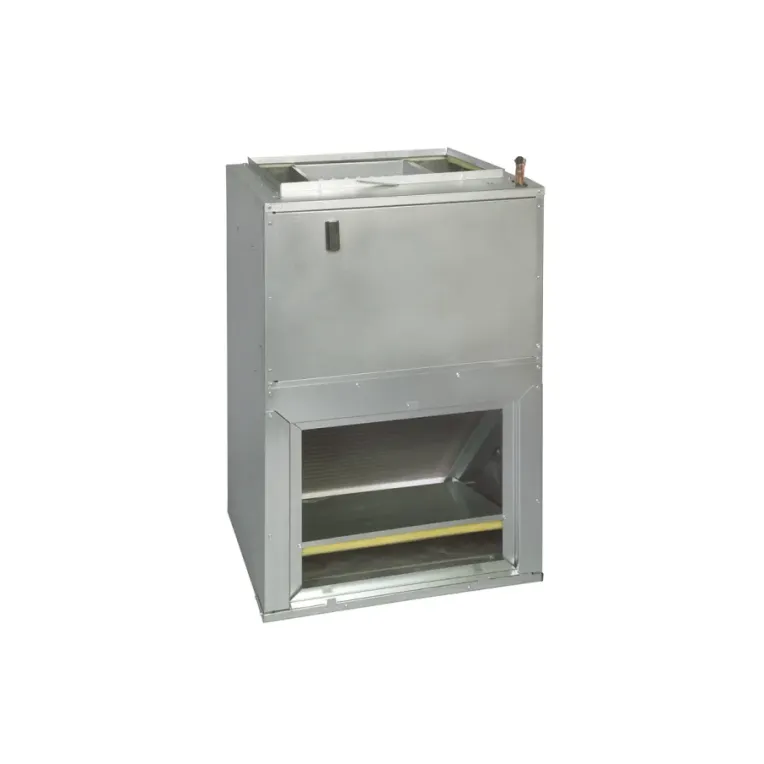

US Aluminum AWUT310516 2.5 Ton Air Handler R-410A

Product Description

The US Aluminum AWUT310516 is a two point five ton air handler designed for indoor applications. This unit operates on 208/230 volts, utilizing R-410A refrigerant for efficient heating and cooling.

• Features a multi-speed ECM motor for effective airflow.
• Includes an all-aluminum coil with a factory-installed TXV.
• Designed for vertical installation with a built-in mounting bracket.

Product Highlights

Efficient airflow management through its multi-speed ECM motor combined with durable construction for indoor installations.

Product Information

Standard Information

• Brand: US Aluminum
• Product Type: Air Handler

Technical Specifications

• MPN: AWUT310516
• Cooling Capacity: 30000 Btu/H
• Tonnage: 2.5 Ton
• Airflow: 645 CFM - 875 CFM
• Motor Type: ECM
• Blower Motor RPM: 1200 r/min
• Power Voltage: 208/230 V
• Minimum Circuit Ampacity: 26/29.8 A
• Recommended Breaker Size: 30 Amps
• Refrigerant Type: R-410A
• Dimensions: 36 Inches x 24 Inches x 21 Inches
• Product Weight: 109 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
