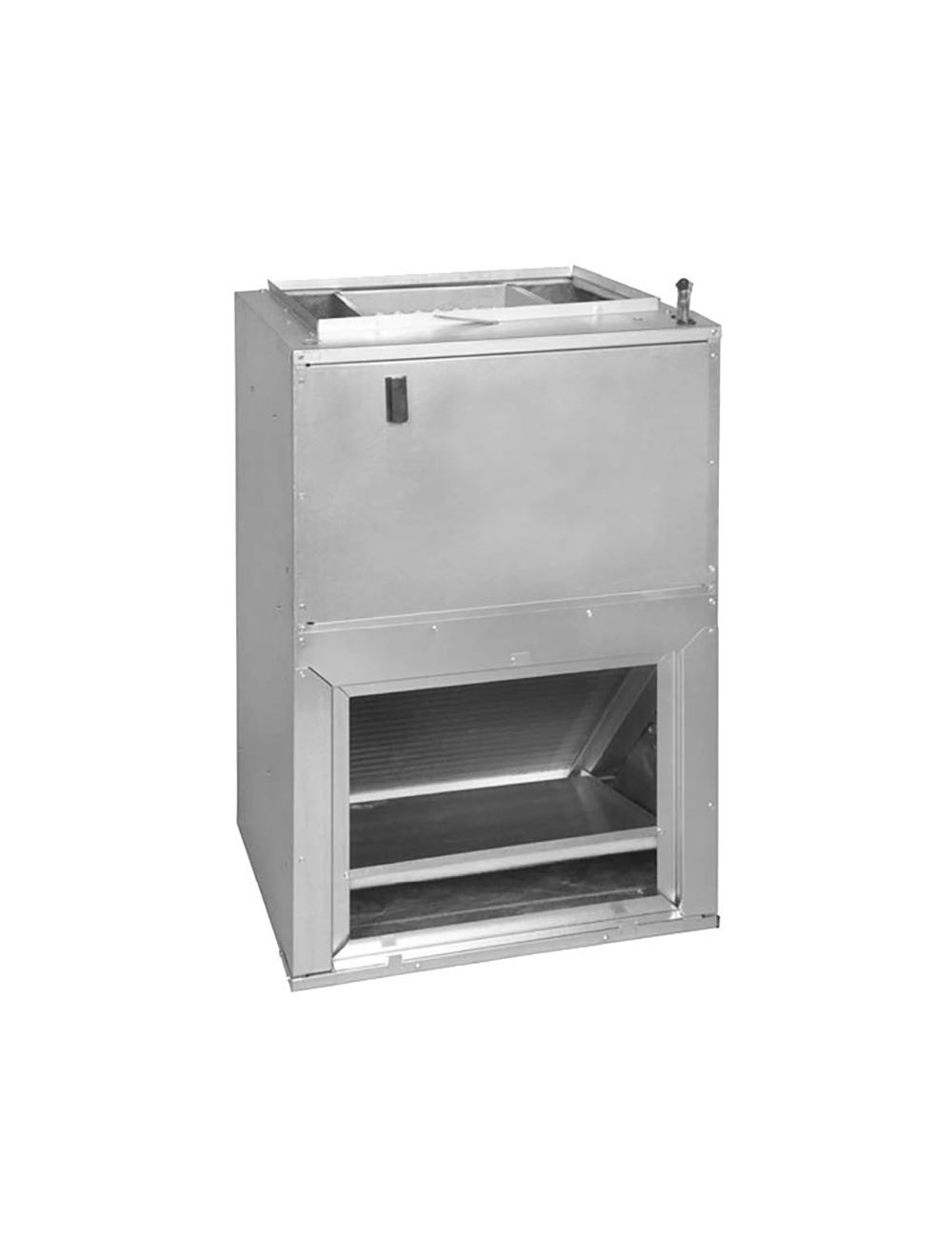

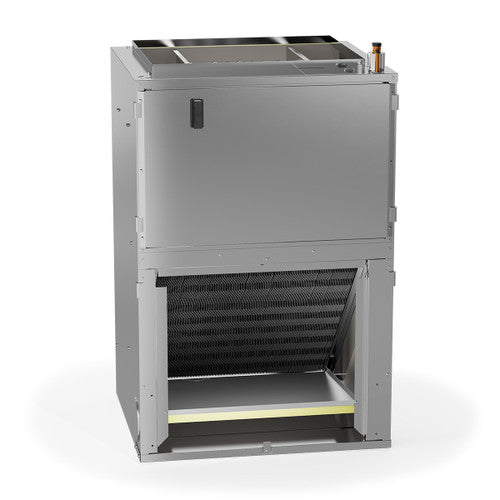

US ALUMINUM AWST36LU1410 Wall Mount Air Handler 3 Ton

Product Description

The US ALUMINUM AWST36LU1410 is a wall-mounted air handler with a capacity of three tons, suitable for indoor environments. The device operates with a multi-speed ECM motor, allowing for efficient air volume control during both heating and cooling. It includes a built-in filter rack and comes with a filter, ensuring clean air circulation. The unit's design features a thermoplastic drain pan with primary and secondary drain connections, enhancing water management.

• Equipped with a multi-speed ECM motor for efficient airflow.
• Includes built-in filter rack with filter for easy maintenance.
• Thermoplastic drain pan with primary and secondary drains for water management.

Product Highlights

This wall mount air handler provides adjustable airflow and comes with durable construction for long-lasting performance.

Product Information

Standard Information

• Brand: US ALUMINUM
• Model Number: AWST36LU1410

Technical Specifications

• Tonnage: 3 tons
• Cooling Capacity: 36,000 Btu/h
• Electric Heat Capacity: 10 kW
• Input Voltage: 208/230 V
• Power Phase: 1
• Power Frequency: 60 Hz
• Minimum Circuit Ampacity: 48/49/54.8 Amps
• Max. Overcurrent Device: 50/60 Amps
• Full Load Amps (FLA): 3.9
• Minimum Voltage: 197 V
• Maximum Voltage: 253 V
• Airflow Rate High Cooling: 1120
• Maximum Air Flow: 1360 CFM
• Minimum Air Flow: 1114 CFM
• Blower Diameter: 10
• Blower Width: 8
• Liquid Line Size: 3/8
• Suction Line Size: 3/4
• Coil Drain Connect (FPT): 3/4
• Unit Type: Indoor
• Mounting Type: Wall Mount
• Unit Height: 36 in
• Unit Width: 24 in
• Product Width: 20-1/4 in
• Unit Depth: 21 in
• Product Depth: 16-1/4 in
• Unit Weight: 109 lbs
