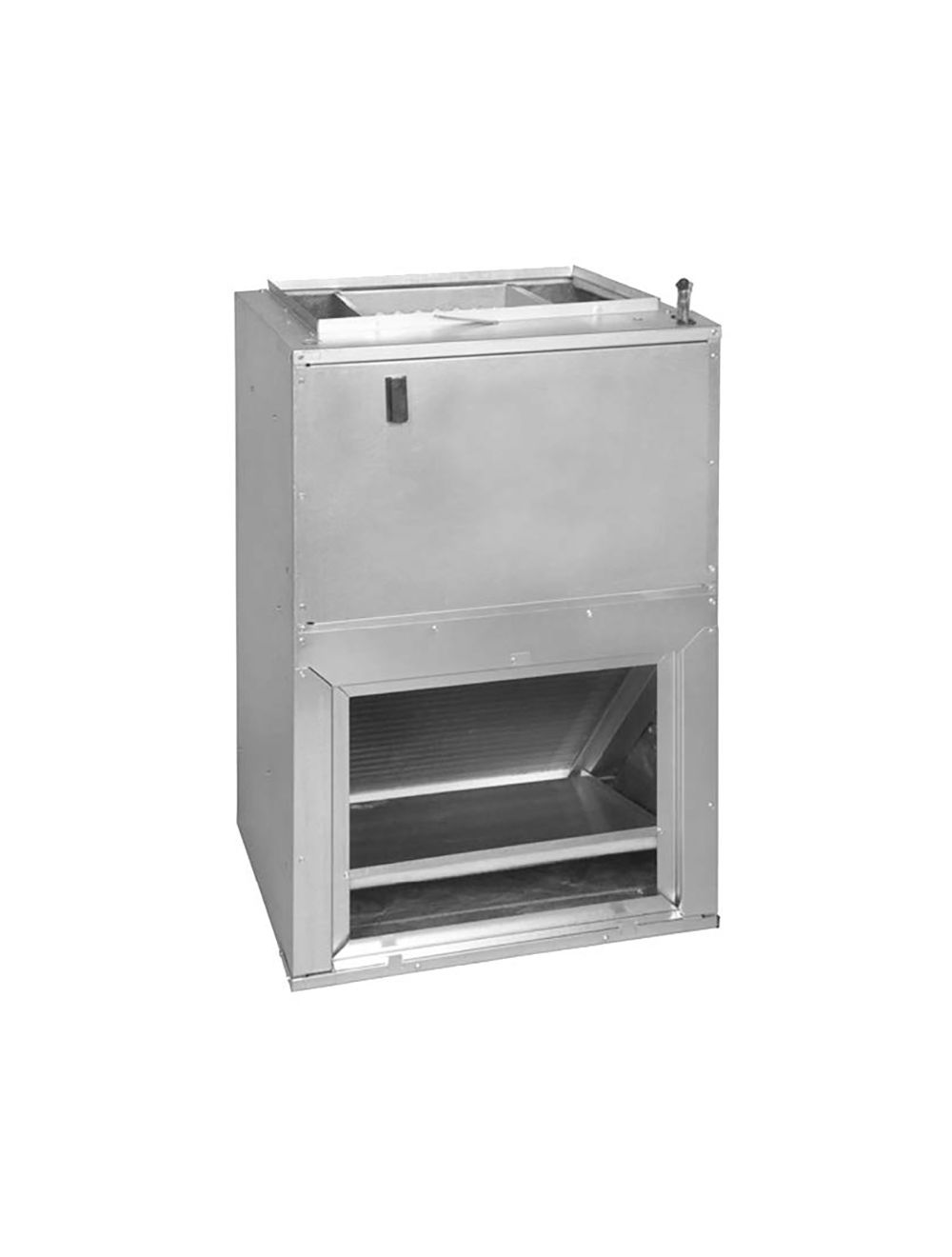

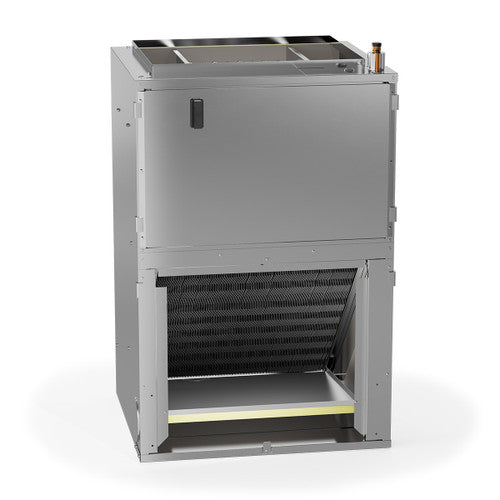

US Aluminum AWST36LU1408 3 Ton Wall Mounted Air Handler with 8 kW Heater

Product Description

The US Aluminum AWST36LU1408 is a wall-mounted air handler suitable for indoor use. It has a cooling capacity of three tons, making it effective for various residential or commercial applications. The unit features a multi-speed ECM motor and a durable all-aluminum evaporator coil. It includes a built-in filter rack, a thermoplastic drain pan with both primary and secondary drain connections, and a pull-type disconnect that comes factory-installed.

• Cooling capacity of 3 tons and electric heat of 8 kW.
• Multi-speed ECM motor for efficient airflow.
• AHRI certification and ETL listing ensure compliance with industry standards.

Product Highlights

This model is flexible in its operation and designed to deliver reliable performance across varying temperature conditions.

Product Information

Standard Information

• Brand: US Aluminum
• Model Number: AWST36LU1408

Technical Specifications

• Air Handler Type: Air Handler
• Mounting Type: Wall Mounted
• Cooling BTU: 36000
• Electric Heat Capacity: 8.0 kW
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Blower Motor Type: Multi-Speed
• Motor Type: ECM
• Refrigerant Type: R-410A
• Maximum Air Flow: 1360 CFM
• Minimum Circuit Ampacity: 37.8 Amps
• Max Overcurrent Protection: 40/45 amps
• Product Height: 36 Inches
• Product Width: 24 Inches
• Product Depth: 21 Inches
• Product Weight: 69 Pounds
