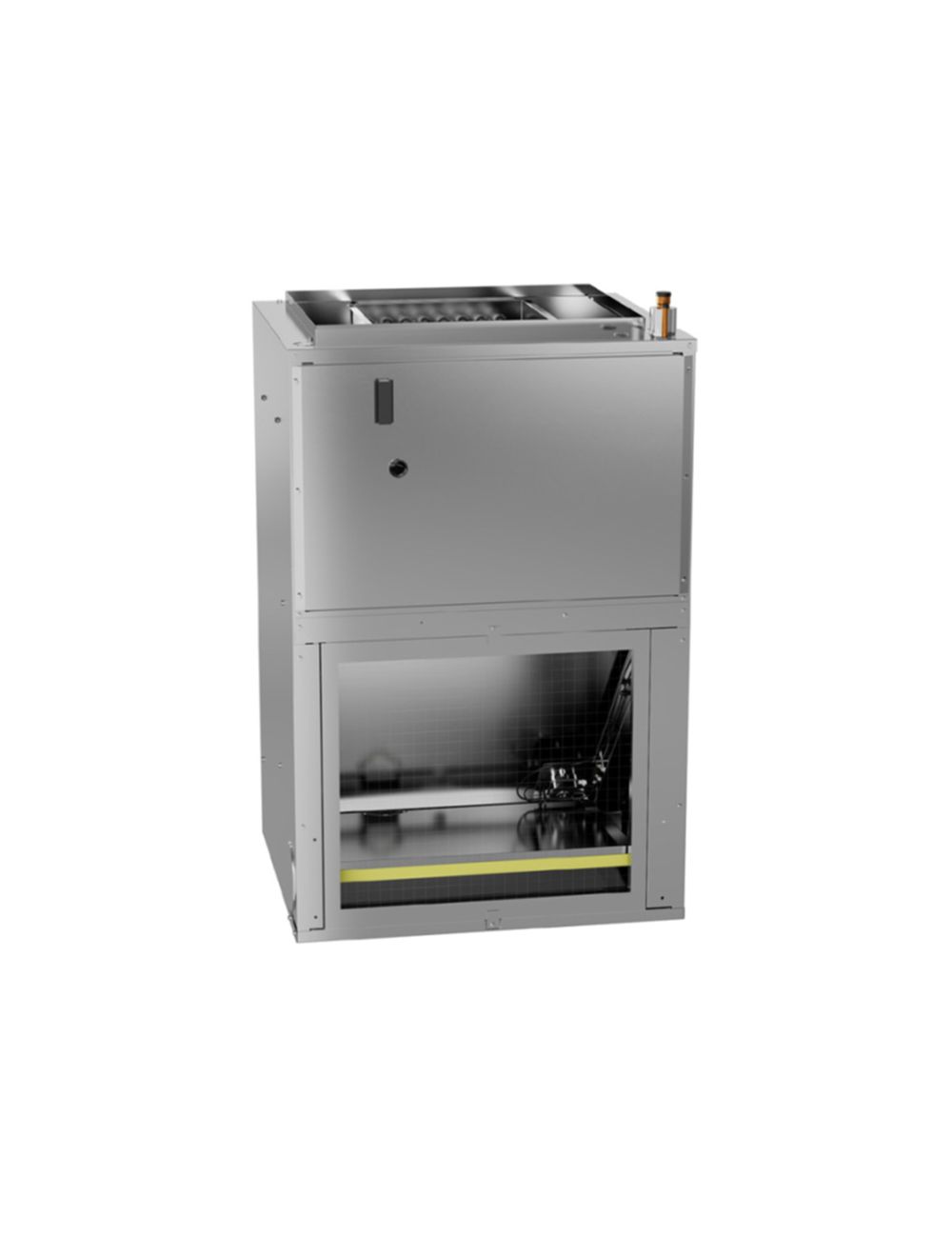

US Aluminum AWST30LU1308 Air Handler 2.5 Tons 8 kW

Product Description

The US Aluminum AWST30LU1308 air handler is designed for indoor temperature control. This unit helps to lower indoor humidity levels for enhanced comfort. It has a capacity of 2.5 tons and an electric heat output of 8 kW, making it suitable for various heating and cooling needs.

• Features an all-aluminum evaporator coil.
• Designed for wall-mounted installation with included bracket.
• Includes a built-in filter rack and filter.

Product Highlights

This air handler ensures effective heat transfer and solid airflow for both heating and cooling applications.

Product Information

Standard Information

• Type: Air Handler
• Product Line: AWST

Technical Specifications

• Refrigerant Type: R-32
• Blower Motor Type: Multi-Speed
• Motor Type: ECM
• Mount Type: Wall Mounted
• Electric Heat: Yes
• Cooling BTU: 30000
• Maximum Air Flow: 1180 CFM
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 37.7 Amps
• Recommended Breaker Size: 40/45 Amps
• Dimensions: 24 inches W x 21 inches D x 36 inches H
• Product Weight: 94 Pounds
• Shipping Weight: 109 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Parts Warranty: 10 Limited Years
