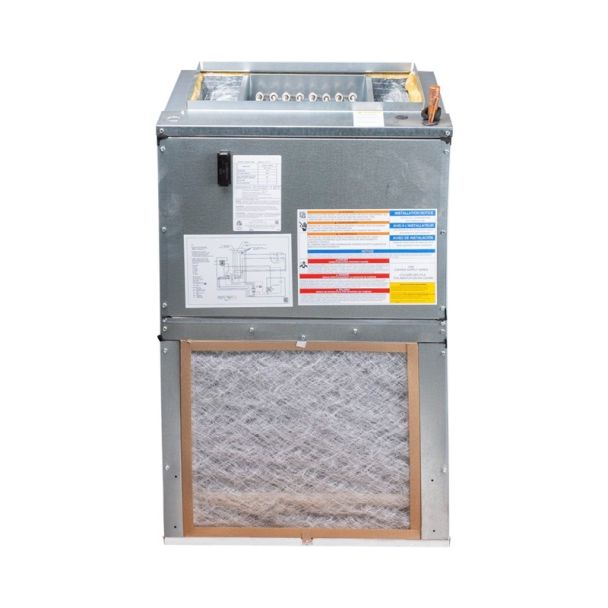

US Aluminum AWST24SU1410 2 Ton Wall Mount Air Handler with 10kW Electric Heat

Product Description

The US Aluminum AWST24SU1410 is a two ton wall-mounted air handler designed for both residential and light commercial applications. Ideal for indoor settings, it features a multi-speed direct-drive motor that adjusts air volume during both heating and cooling. The unit includes a fully adjustable thermal expansion valve (TXV) and efficient aluminum tube coils. It is designed with rust-resistant nickel chromium heating elements offering ten kilowatts of electric heat. Features include a built-in filter rack, thermoplastic drain pan, and a factory-installed pull-type disconnect.

• Designed for vertical wall or stud mounting.
• Equipped with a multi-speed motor and adjustable TXV.
• Includes a built-in filter rack and thermoplastic drain pan.

Product Highlights

The AWST24SU1410 provides efficient cooling and heating, making it suitable for various environments. Its robust construction ensures longevity.

Product Information

Standard Information

• Brand: US Aluminum
• MPN: AWST24SU1410

Technical Specifications

• Type: Air Handler
• Product Line: AWST
• Mount Type: Wall Mounted
• Installation Location: Indoor
• Tonnage: 2 Ton
• Cooling BTU: 24000 BTU
• Maximum Air Flow: 846 CFM
• Minimum Air Flow: 630 CFM
• Blower Motor Type: Multi-Speed Direct Drive Motor
• Horsepower: 0.33
• Electric Heat Capacity: 10.0 kW
• Fuel Type: Electric
• Refrigerant: R-410A
• Liquid Line Size: 3/8 Inch
• Suction Line Size: 5/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Input Voltage: 208/230 Volts
• Max. Voltage: 253
• Min. Voltage: 197
• Power Phase: 1
• Power Frequency: 60 Hz
• Max Breaker Size: 50/60 Amps
• Min. Circuit: 24.9/28
• Minimum Circuit Ampacity: 47.5 Amps
• Recommended Breaker Size: 50/60 Amps
• Product Height: 36 Inches
• Product Width: 20 1/4 Inches
• Product Depth: 16 1/8 Inches
• Product Weight: 69 Pounds
• Warranty: 10 Years
• Parts Warranty: 10 Limited Years
