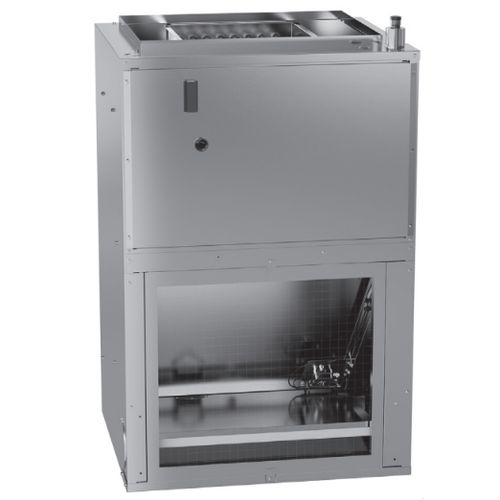

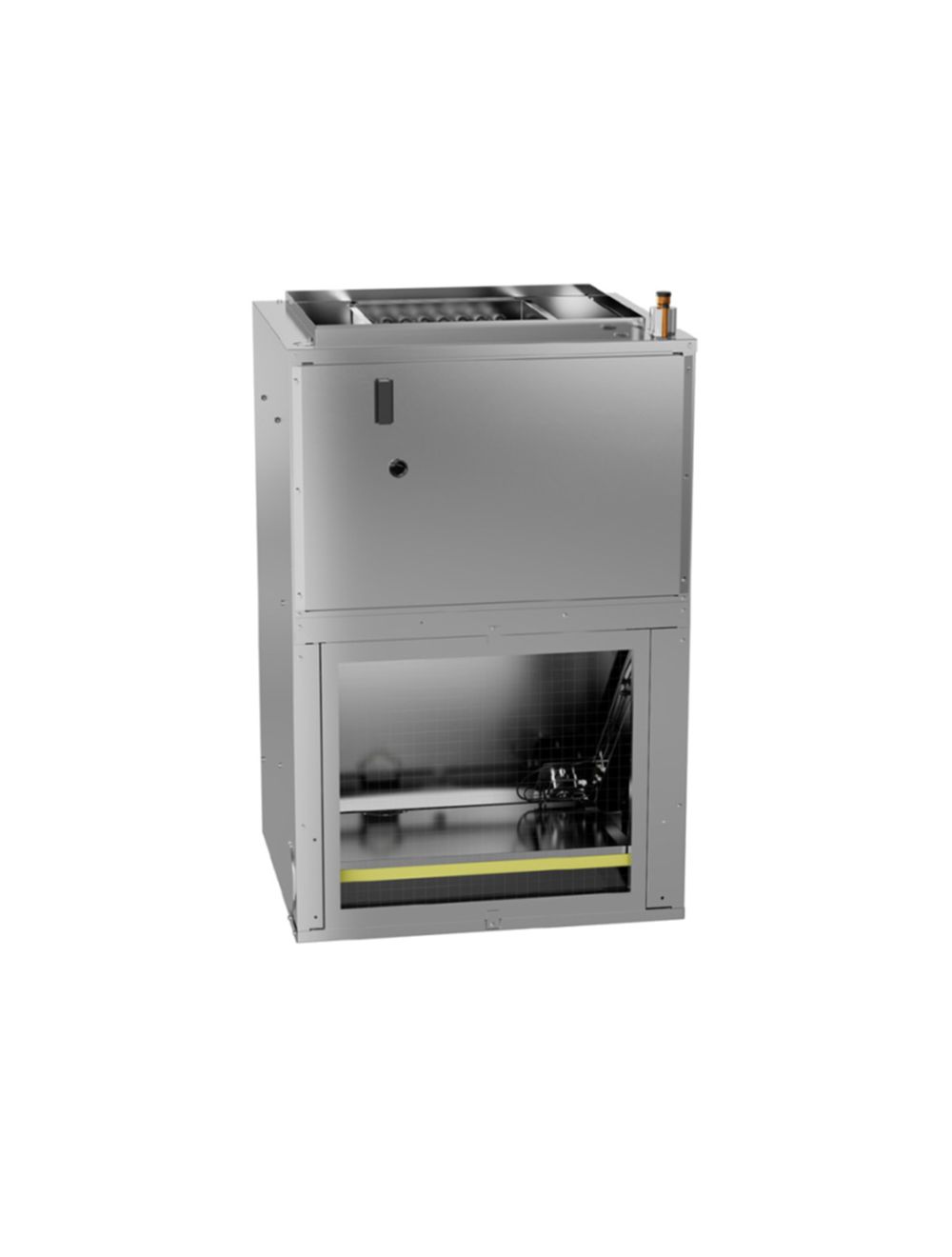

US Aluminum AWST24SU1308 2.0 Ton Wall Mount Air Handler

Product Description

The US Aluminum AWST24SU1308 is a two ton wall mount air handler designed for reliable indoor air management. This model includes a multi-speed ECM motor that optimizes airflow for both heating and cooling systems.

• Features a built-in filter rack for improved air quality.
• Equipped with an all-aluminum evaporator coil.
• Includes electric heat with rust-resistant heating elements.

Product Highlights

This air handler reduces indoor humidity while providing efficient air circulation. Ideal for residential use, it integrates easily into existing HVAC systems.

Product Information

Standard Information

• Brand: US Aluminum
• MPN: AWST24SU1308

Technical Specifications

• Product Line: AWST
• Product Category: Air Handler
• Capacity: 2.0 Ton
• Cooling BTU: 24000
• Electric Heat: Yes
• Electric Heat Capacity: 8.0 kW
• Refrigerant Type: R-32
• Motor Type: ECM
• Blower Motor Type: Multi-Speed
• Mount Type: Wall Mounted
• Installation Location: Indoor
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 36.2 Amps
• Recommended Breaker Size: 40/45 Amps
• Maximum Air Flow: 846 CFM
• Minimum Air Flow: 630 CFM
• Suction Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Product Height: 36 Inches
• Product Width: 20 3/16 Inches
• Product Depth: 16 1/8 Inches
• Product Weight: 94 Pounds
• AHRI Certified: Yes
• ETL Listed: Yes
• ISO Certified: Yes
