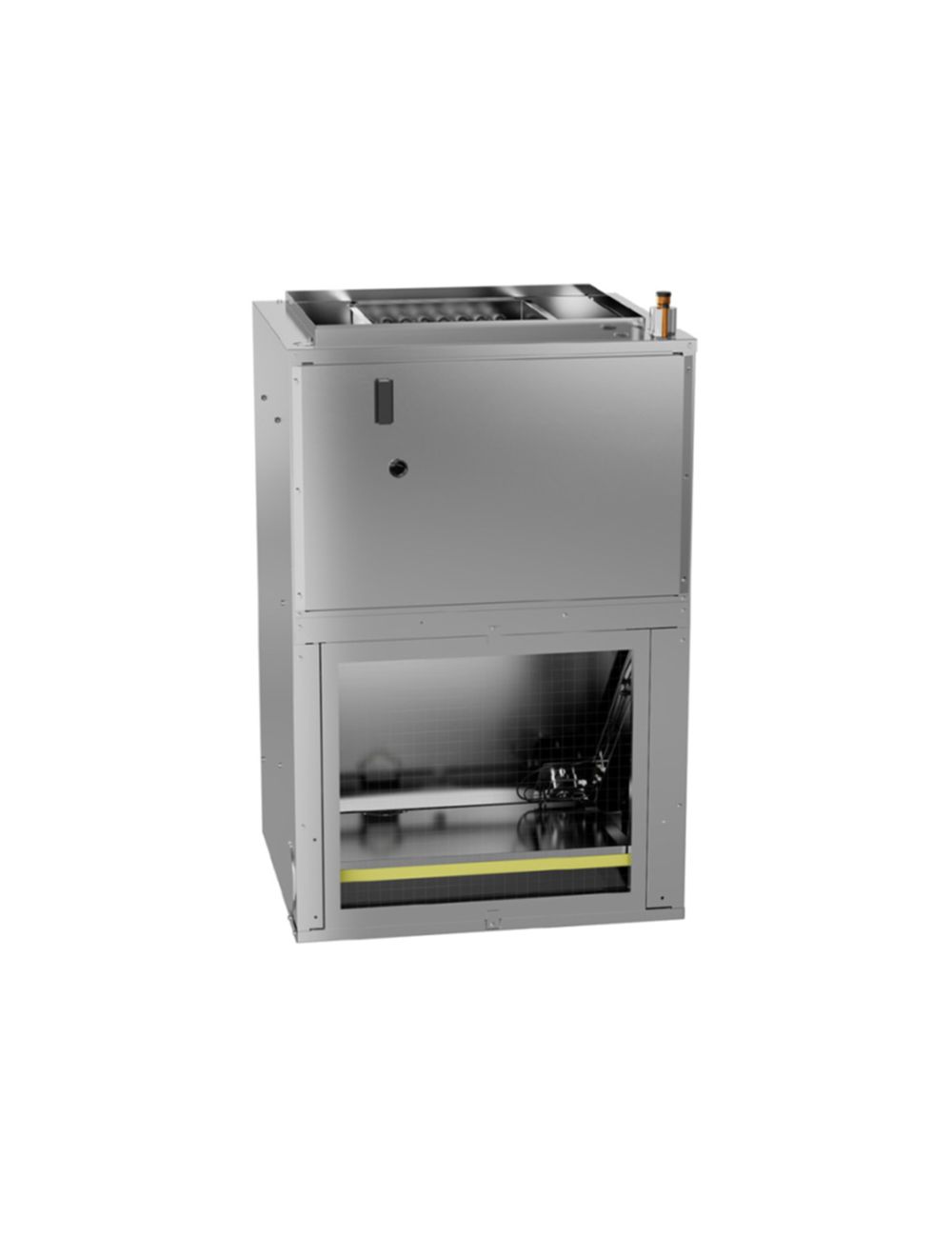

US Aluminum AWST18SU1308 Wall Mount Air Handler 1.5 Ton Electric Heat

Product Description

The US Aluminum AWST18SU1308 is a wall-mounted air handler designed for use in a complete home climate control system. This unit employs a multi-speed ECM motor for effective air circulation in both cooling and heating modes. It features an all-aluminum evaporator coil and a fully adjustable thermostatic expansion valve, ensuring durability and efficient performance.

• Equipped with an all-aluminum evaporator coil.
• Includes a built-in filter rack.
• Suitable for vertical wall mount installation.

Product Highlights

This air handler is ideal for indoor installations, making it versatile for various settings.

Product Information

Standard Information

• Product Type: Air Handler
• Product Line: AWST

Technical Specifications

• Refrigerant Type: R-32
• Capacity: 1.5 Tons
• Cooling BTU: 18000
• Electric Heat: Yes
• Electric Heat Capacity: 8.0 kW
• Motor Type: ECM
• Blower Motor Type: Multi-Speed
• Maximum Air Flow: 846 CFM
• Minimum Air Flow: 630 CFM
• Mount Type: Wall Mounted
• Installation Location: Indoor
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 36.2 Amps
• Recommended Breaker Size: 40/45 Amps
• Suction Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Product Height: 36 Inches
• Product Width: 20 3/16 Inches
• Product Depth: 16 1/8 Inches
• Product Weight: 94 Pounds
• Certifications: AHRI Certified; ETL Listed; ISO Certified
