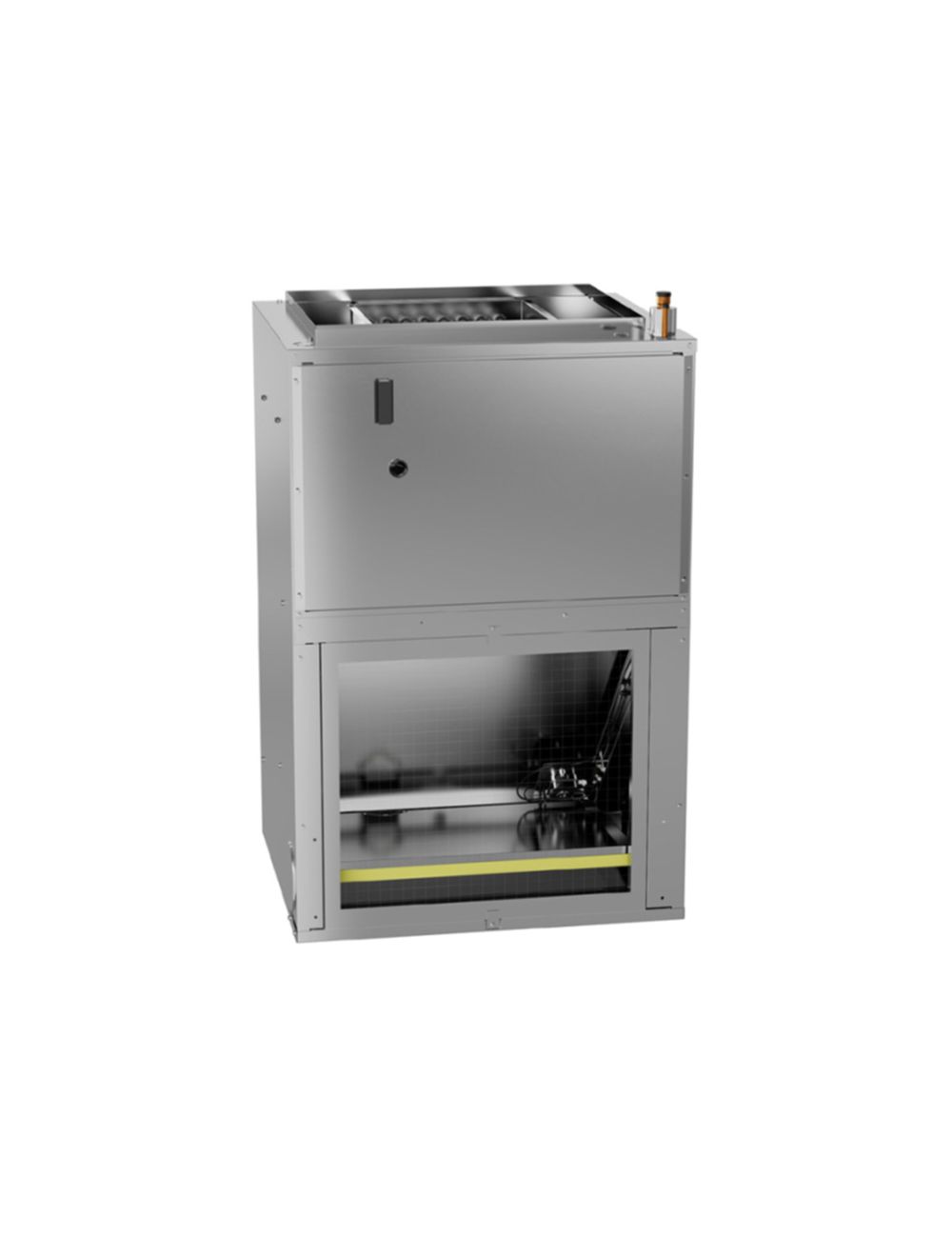

US Aluminum AWST18SU1305 Air Handler 1.5 Ton Wall Mount 5kW R-32

Product Description

The US Aluminum AWST18SU1305 is a 1.5-ton air handler designed for wall mounting indoors. This unit uses R-32 refrigerant and includes a multi-speed ECM motor, allowing efficient air circulation. Key features include an all-aluminum evaporator coil, a built-in filter rack, and a thermoplastic drain pan with both primary and secondary drain connections.

• Multi-speed ECM motor for energy-efficient operation.
• All-aluminum evaporator coil for durability.
• Includes an electric heat kit with rust-resistant heating elements.

Product Highlights

The US Aluminum AWST18SU1305 air handler provides effective heating and cooling solutions for residential and commercial applications.

Product Information

Standard Information

• Brand: US Aluminum
• MPN: AWST18SU1305

Technical Specifications

• Product Type: Air Handler
• Mounting Type: Wall Mounted
• Cooling Capacity: 1.5 Tons (18000 BTU)
• Heating Capacity: 17000 BTU
• Electric Heat Capacity: 5.0 kW
• Maximum Air Flow: 846 CFM
• Minimum Air Flow: 630 CFM
• Voltage: 208/230 Volts
• Frequency: 60 Hz
• Weight: 94 Pounds
• Dimensions: 20.19 inches W x 16.125 inches D x 36 inches H
• Refrigerant Type: R-32
• Certifications: ETL Listed, AHRI Certified, ISO Certified
