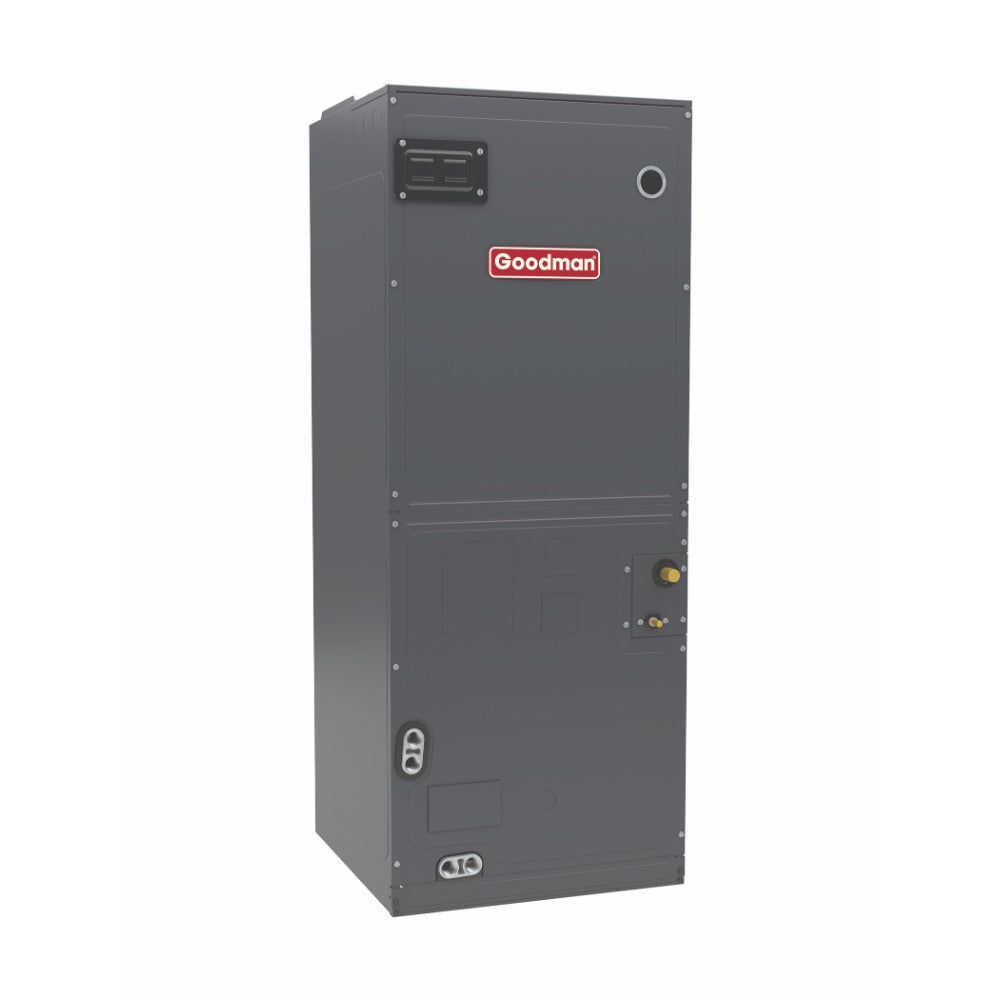

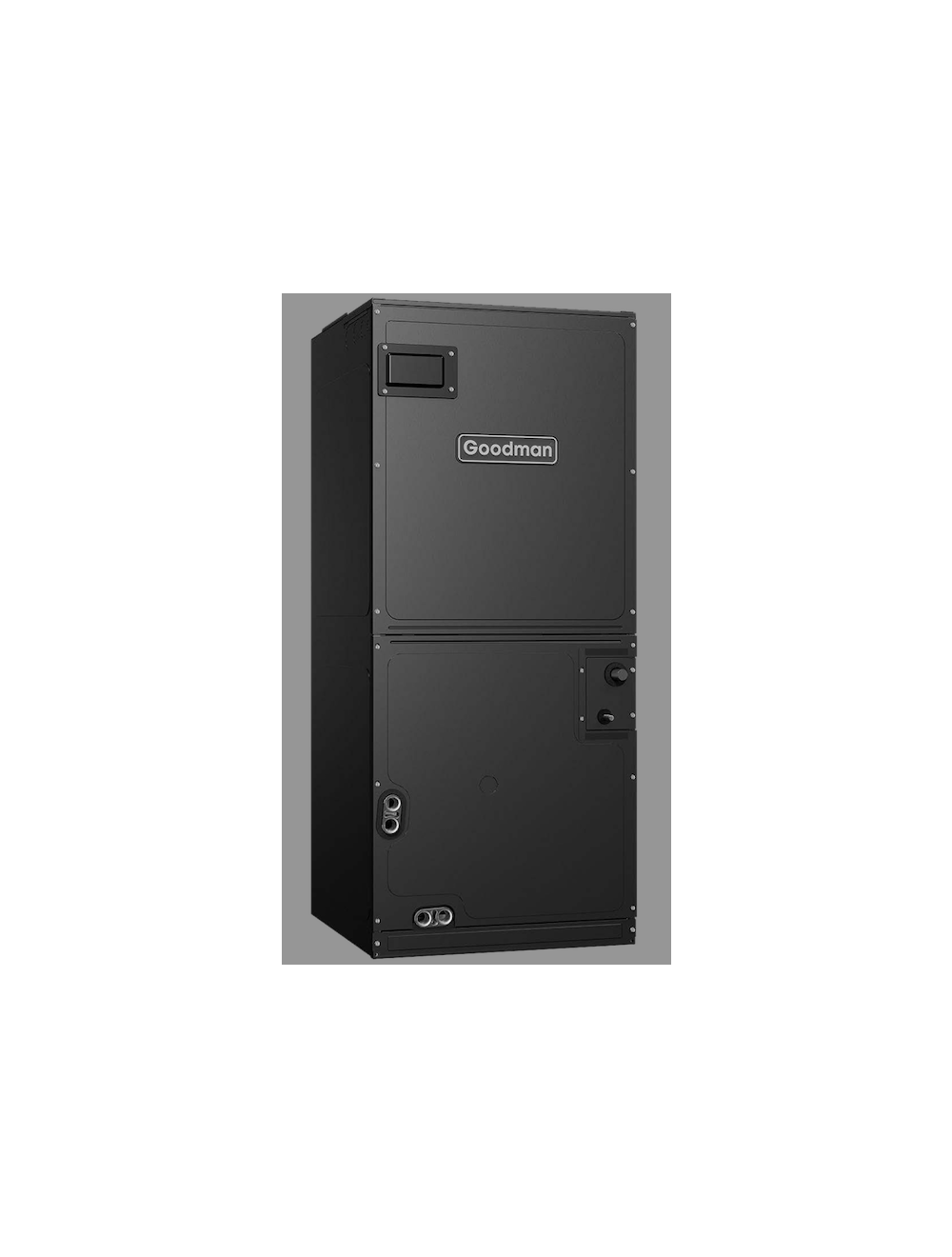

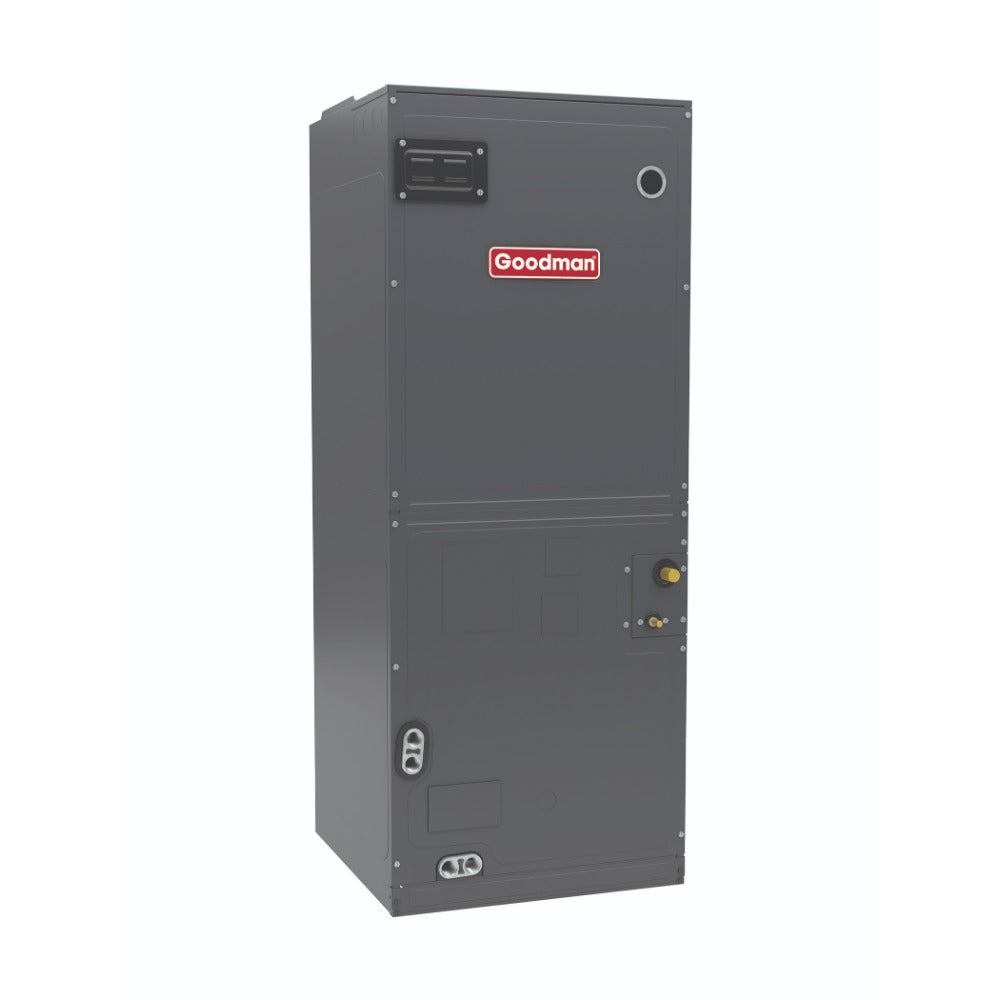

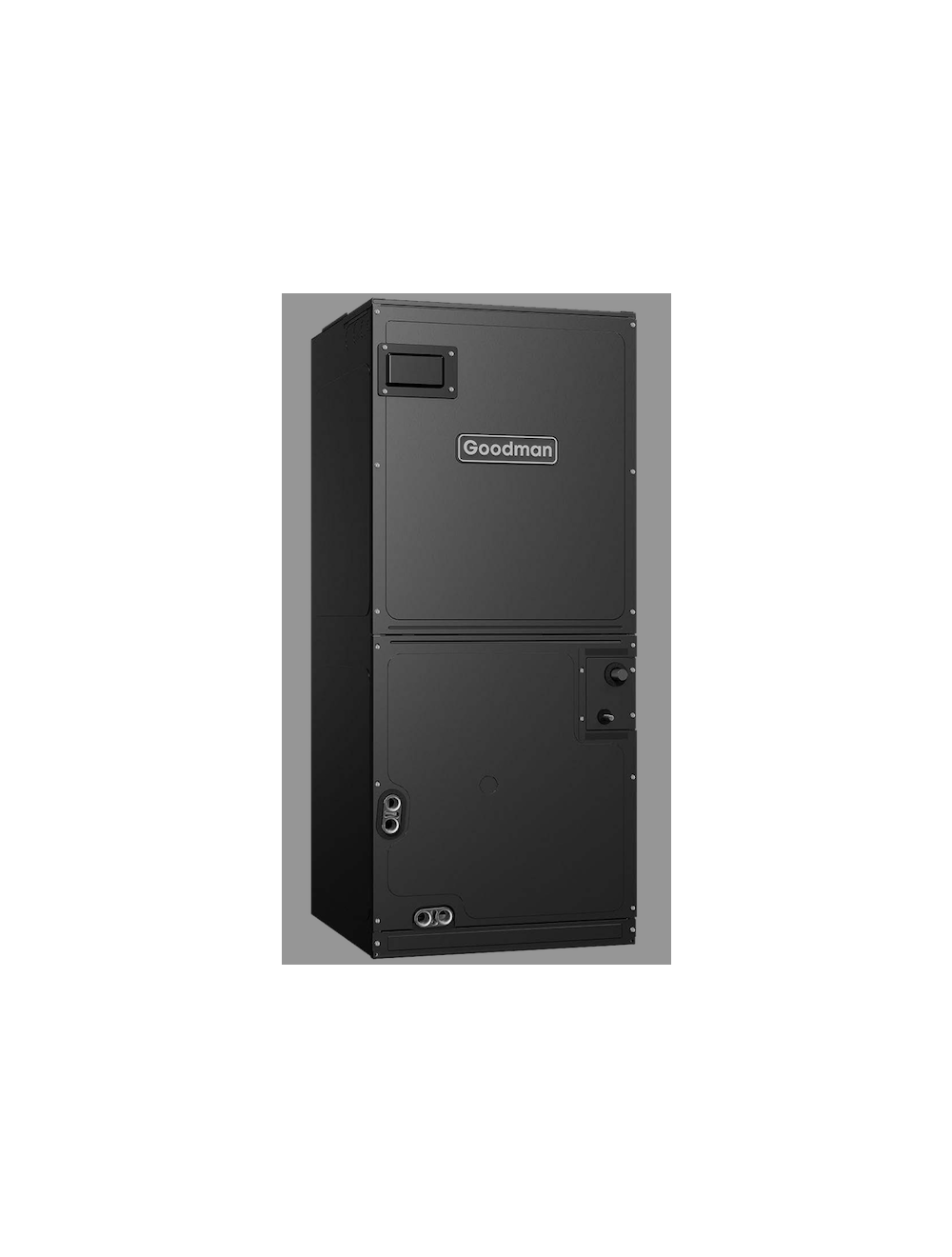

US Aluminum AMVT36CP1400 3 Ton Multi-Position Air Handler

Product Description

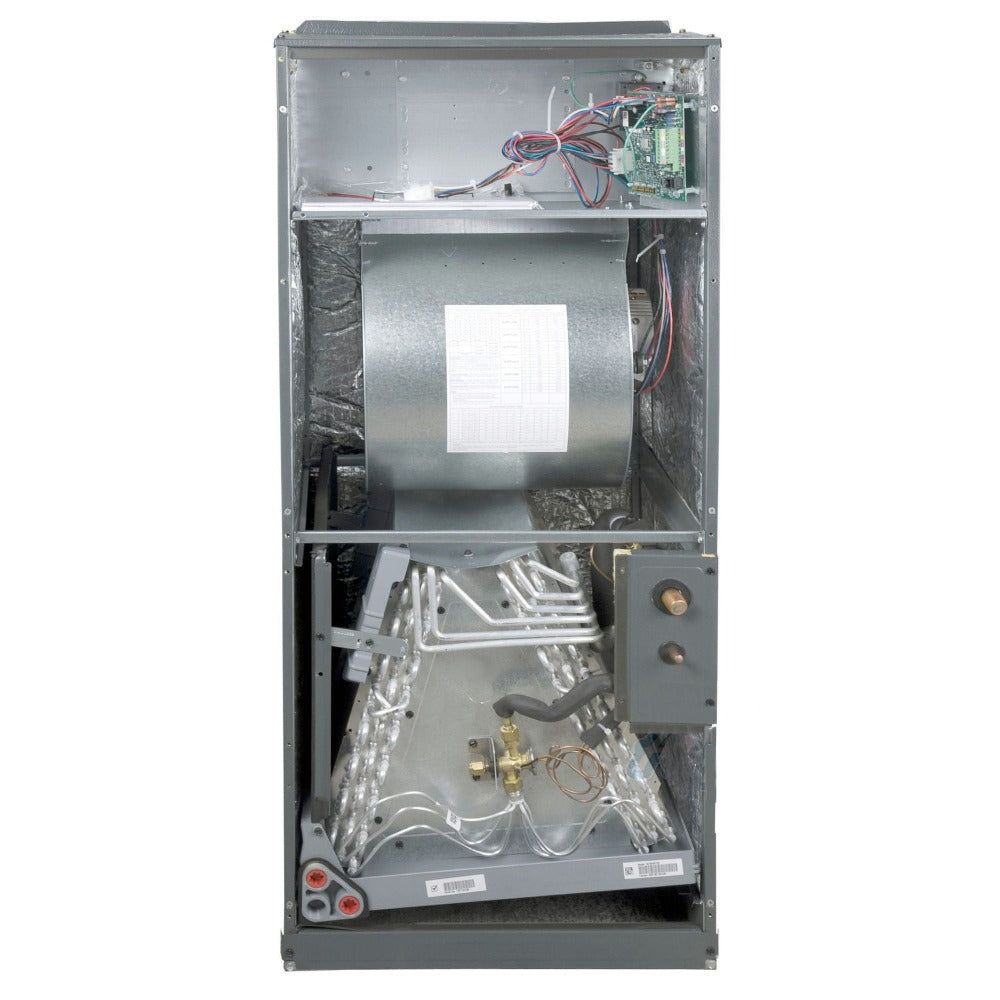

The US Aluminum AMVT36CP1400 is a three-ton multi-position air handler. It has a variable-speed ECM blower motor that improves air circulation and efficiency. The unit features an all-aluminum evaporator coil and includes an internal thermostatic expansion valve (TXV) for both cooling and heat pump applications.

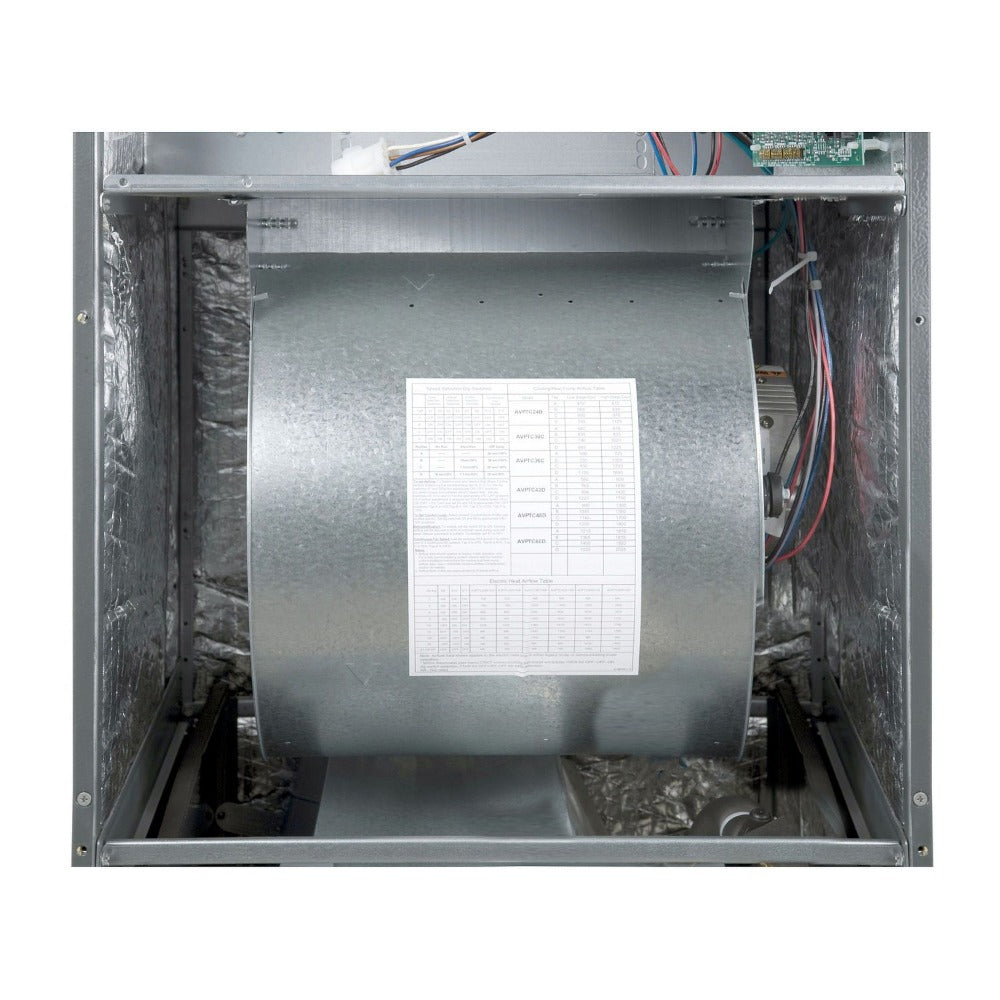

• Variable-speed ECM blower motor
• All-aluminum evaporator coil
• Multi-position air handling

Product Highlights

This air handler is designed for effective air distribution and can help lower indoor humidity levels.

Product Information

Standard Information

• Brand: US Aluminum
• Type: Air Handler

Technical Specifications

• Model Number: AMVT36CP1400
• Refrigerant Type: R-410A
• Capacity: 3.0 Tons
• Cooling BTU: 36000
• Blower Motor Type: Variable-Speed
• Motor Type: ECM
• Mount Type: Multi-Position
• Installation Location: Indoor
• Electric Heat: Available
• TXV Installed: Yes
• Maximum Air Flow: 1200 CFM
• Minimum Air Flow: 536 CFM
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 6.5 Amps
• Recommended Breaker Size: 15/15 Amps
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Cabinet Width: 21 Inches
• Product Height: 49 Inches
• Product Width: 21 1/8 Inches
• Product Depth: 21 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Warranty: 10 Years
• Parts Warranty: 10 Limited Years
• Dimensions: 21-1/8 W x 21 D x 49 H
