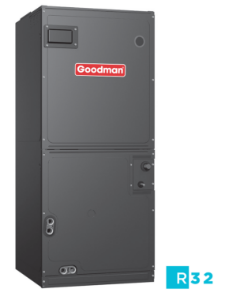

US Aluminum AMVT36CP1300 Air Handler 3.0 Tons R-32

Product Description

The US Aluminum AMVT36CP1300 air handler is designed for effective air distribution. This unit includes an all-aluminum evaporator coil, a thermoplastic drain pan, and a variable speed fan motor. It also has an internal thermostatic expansion valve for efficient operation. The air handler is compatible with ComfortBridge communicating controls and the Coolcloud application.

• All-aluminum coil maximizes surface area for heat transfer.
• Variable speed ECM blower motor adjusts air volume as needed.
• Internal thermostatic expansion valve simplifies installation and optimizes refrigerant flow.

Product Highlights

This air handler provides reliable cooling and airflow while featuring a compact design suitable for indoor installation.

Product Information

Standard Information

• Type: Air Handler
• Product Line: AMVT

Technical Specifications

• Refrigerant Type: R-32
• Blower Motor Type: ECM Variable-Speed
• Configuration: Upflow/Downflow
• Mount Type: Multi-Position
• Electric Heat: Available
• TXV Installed: Yes
• Cooling BTU: 36000
• Maximum Air Flow: 1000 CFM
• Voltage: 208/230 Volts
• Minimum Circuit Ampacity: 6.5 Amps
• Recommended Breaker Size: 15 Amps
• Cabinet Width: 21 Inches
• Product Height: 49 Inches
• Product Width: 21 Inches
• Product Depth: 21 Inches
• Product Weight: 143 Pounds
• Shipping Weight: 158 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 10 Limited Years
