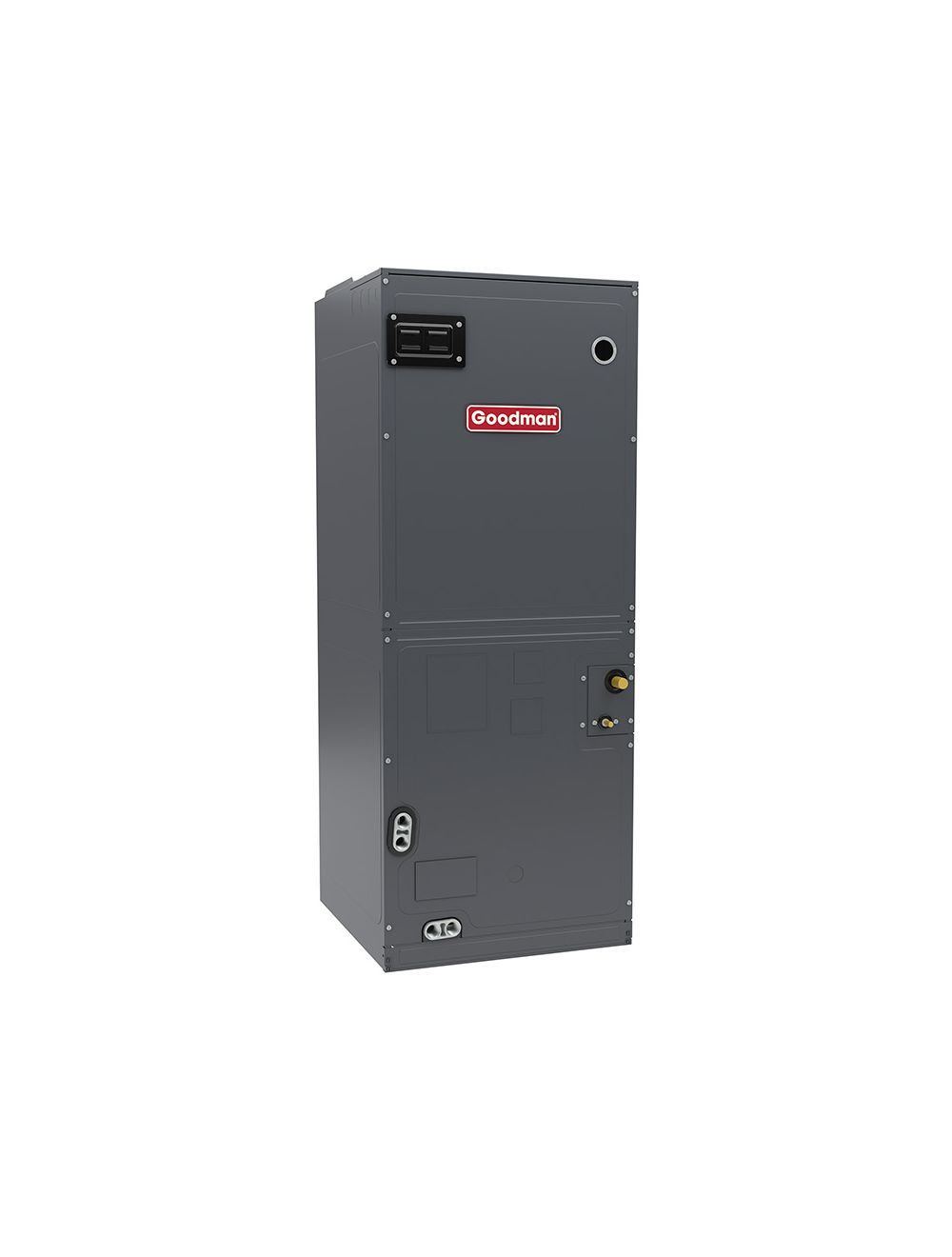

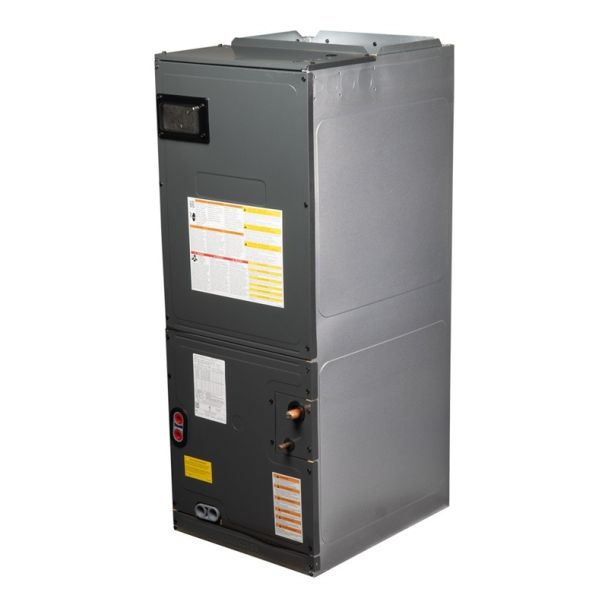

US Aluminum AMVT30BP1300 Air Handler

Product Description

The US Aluminum AMVT30BP1300 air handler is designed for efficient air distribution. This model features an all-aluminum evaporator coil and a thermoplastic drain pan, ensuring durability and reliability. It includes a variable-speed ECM blower motor for optimized airflow and an internal thermostatic expansion valve for precise cooling control. The unit supports multiple installation positions, including upflow, downflow, or horizontal, making it versatile for different setups. It is compatible with electric heating systems and ComfortBridge communicating controls.

• Variable-speed ECM blower motor for efficient airflow.
• Includes an internal thermostatic expansion valve for improved performance.
• Multi-position installation options for flexible placement.

Product Highlights

Ideal for trade professionals, this air handler offers features for effective condensation management and easy maintenance access.

Product Information

Standard Information

• Brand: US Aluminum
• Model Number: AMVT30BP1300

Technical Specifications

• Type: Air Handler
• Product Line: AMVT
• Refrigerant Type: R-32
• Capacity: 2.5 Tons
• Cooling BTU: 30000
• Blower Motor Type: ECM Variable-Speed
• Maximum Air Flow: 1185 CFM
• Minimum Air Flow: 402 CFM
• Mount Type: Multi-Position
• Configuration: Upflow/Downflow
• Voltage: 208/230 Volts
• Electrical: 208/240v 1 Phase 60Hz
• Minimum Circuit Ampacity: 4.9 Amps
• Recommended Breaker Size: 15 Amps
• Max Breaker Size: 15 Amps
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Height: 53.4375 Inches
• Width: 17.5 Inches
• Depth: 21 Inches
• Electric Heat: Available
• Parts Warranty: 10 Limited Years
• AHRI Certified: Yes
• ETL Listed: Yes
• ISO Certified: Yes
