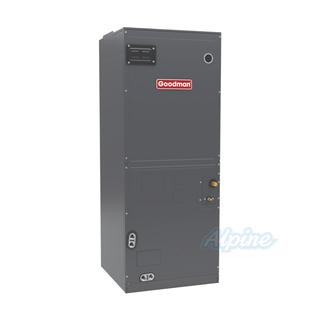

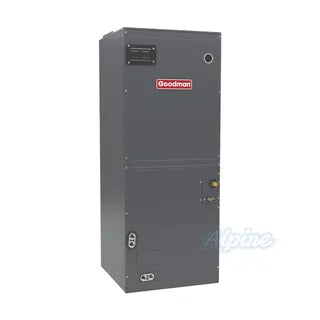

US Aluminum AMVT24BP1300 Multi-Position Air Handler 2.0 Ton R-32

Product Description

The US Aluminum AMVT24BP1300 is a multi-position air handler designed for indoor installation. This unit is compatible with R-32 refrigerant and comes equipped with an all-aluminum evaporator coil and factory-installed thermal expansion valve (TXV). The high-efficiency, multi-speed ECM blower motor allows for adjustable airflow. The SmartFrame cabinet, made from rust-resistant and insulated steel, facilitates upflow, downflow, or horizontal configurations.

• Multi-speed ECM blower motor for adjustable airflow.
• Compatible with R-32 refrigerant systems.
• SmartFrame rust-resistant, fully insulated cabinet.

Product Highlights

The air handler supports various installation configurations, making it versatile for different settings. It is designed to provide efficient operation, suitable for both cooling and heat pump applications.

Product Information

Standard Information

• Product Type: Air Handler
• Installation Location: Indoor

Technical Specifications

• Refrigerant Type: R-32
• Capacity: 2.0 Tons
• Cooling BTU: 24000
• Maximum Air Flow: 1215 CFM
• Minimum Air Flow: 825 CFM
• Input Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Min Circuit Ampacity: 5.8 Amps
• Recommended Breaker Size: 15 Amps
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Cabinet Width: 17.5 Inches
• Product Height: 45 Inches
• Product Width: 17.5 Inches
• Product Depth: 21 Inches
• Weight: 97 Pounds
• Configuration: Downflow / Horizontal / Upflow
• ENERGY STAR® Capable: Yes
• AHRI Certified: Yes
• ETL Listed: Yes
• ISO Certified: Yes
