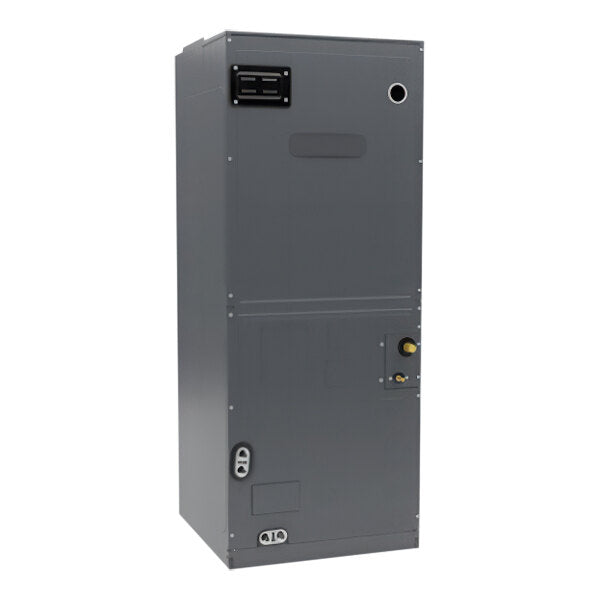

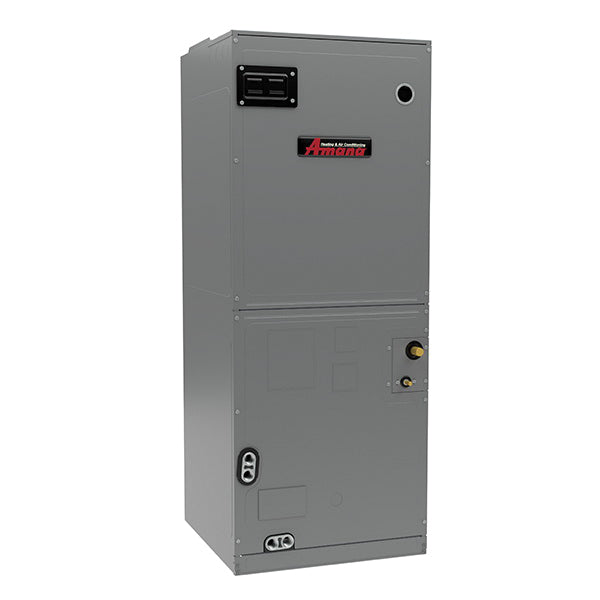

US Aluminum AMST42CU1300 3.5 Ton Multi-Position Air Handler

Product Description

The US Aluminum AMST42CU1300 is a 3.5-ton multi-position air handler suitable for indoor installation in central split systems. It features an all-aluminum evaporator coil and a direct-drive, multi-speed ECM blower motor for effective air flow. The unit includes a factory-installed thermal expansion valve (TXV) and a DecaBDE-free thermoplastic drain pan with secondary drain connections. The cabinet is designed with foiled-faced insulation and a galvanized leather grain-embossed finish.

• 3.5-ton capacity with multi-position design for horizontal or vertical installation.
• Equipped with a nine-speed ECM blower motor and internal thermal expansion valve (TXV).
• Uses R-32 refrigerant and includes an all-aluminum evaporator coil.

Product Highlights

This air handler is versatile, efficient, and built for reliability in cooling applications.

Product Information

Standard Information

• Brand: US Aluminum
• Model: AMST42CU1300

Technical Specifications

• Type: Air Handler
• Operating Mode: Cooling
• Mounting Style: Freestanding
• Mount Type: Multi-Position
• Installation Location: Indoor
• Air Flow Direction: Horizontal, Vertical
• Nominal Capacity: 3.5 ton
• Cooling Capacity: 42000 BTU/hr
• Refrigerant Type: R-32
• Blower Motor Type: Multi-Speed
• Voltage: 208/230 Volts
• Frequency: 60 Hz
• Amperage: 5.7 Amps
• Liquid Line Size: 3/8 inch
• Suction Line Size: 3/4 inch
• Weight: 138 Pounds
• Dimensions: 53-7/16 in H x 21 in W x 21 in D
