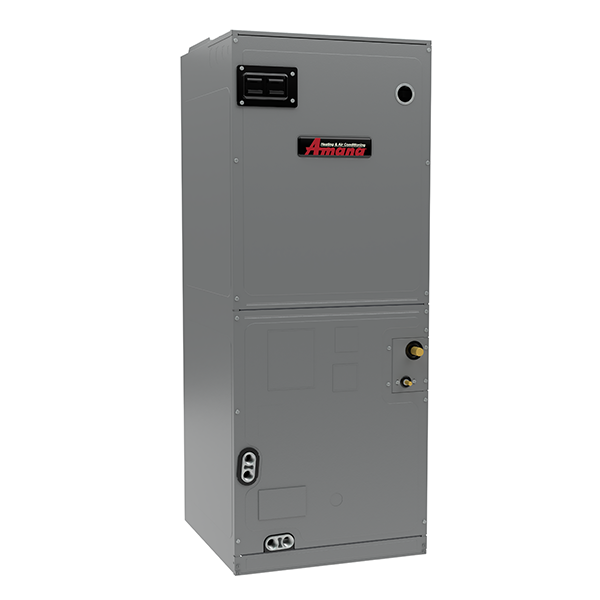

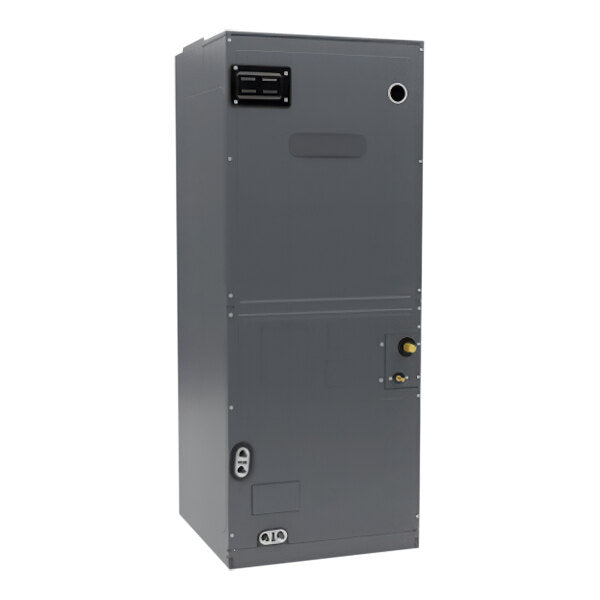

US Aluminum AMST36CU1300 3-Ton Multi-Position Air Handler

Product Description

The US Aluminum AMST36CU1300 is a three-ton multi-position air handler designed for indoor installation. This unit effectively distributes air in various settings with its durable and efficient build. It features an all-aluminum evaporator coil for enhanced reliability and comes with factory-installed thermal expansion valves for convenience.

• 3-ton capacity for effective air distribution.
• Direct drive, nine-speed ECM blower motor for efficient circulation.
• Constructed with foiled-faced insulation for temperature control.

Product Highlights

The AMST36CU1300 offers a versatile installation option with a design compatible with R-32 refrigerant, making it suitable for different climate conditions.

Product Information

Standard Information

• Brand: US Aluminum
• Country of Origin: United States of America

Technical Specifications

• MPN: AMST36CU1300
• Type: Air Handler
• Capacity: 3.0 Tons
• Total BTU: 36,000 BTU
• Cooling BTU: 36000
• Refrigerant Type: R-32
• Voltage: 208/230 Volts
• Phase: 1 Phase
• Frequency: 60 Hz
• Motor Type: ECM
• Blower Motor Type: Multi-Speed
• Speeds: 9 Speed
• Mounting Style: Freestanding
• Mount Type: Multi-Position
• Air Flow Direction: Horizontal, Vertical
• Maximum Air Flow: 1830 CFM
• Minimum Air Flow: 1070 CFM
• Minimum Circuit Ampacity: 7.1 Amps
• Recommended Breaker Size: 15 Amps
• Max Overcurrent Protection: 15 Amps
• Liquid Line Size: 3/8 Inch
• Suction Line Size: 3/4 Inch
• Drain Outlet Diameter: 3/4 Inch
• Product Height: 49 Inches
• Product Width: 21 Inches
• Cabinet Width: 21 Inches
• Product Depth: 21 Inches
• Product Weight: 138 Pounds
• Horsepower: 3/4 hp
• Amperage Rating: 7.1 A
• Amps: 5.7 Amps
• Fuse Rating: 15 A
• Configuration: Floor Mounted
• Heat Strip Compatibility: Up to 15 kW
• Line Set Connection Type: Sweat
