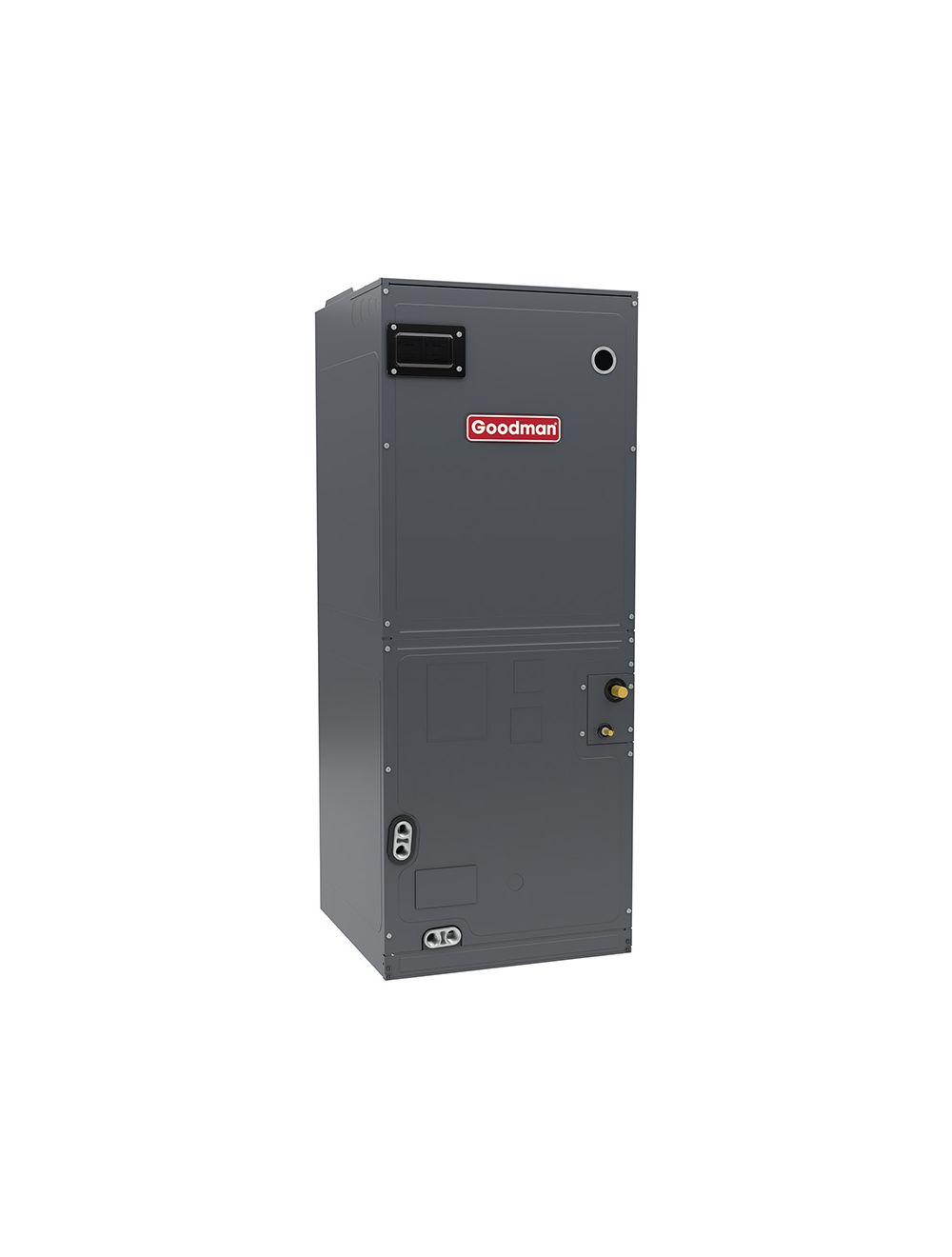

Goodman AMST30BU1300 Air Handler 2.5 Ton Multi-Position ECM Motor

Product Description

The US Aluminum AMST30BU1300 is a 2.5-ton air handler designed for effective air distribution. This air handler efficiently uses an all-aluminum evaporator coil and comes with factory-installed valves suitable for both cooling and heat pump applications. The unit features a multi-speed ECM blower motor and is built for indoor use in various positions.

• Compatible with R-32 refrigerant.
• Electric heating option available.
• SmartFrame cabinet design.

Product Highlights

This model is designed specifically for reliable performance in residential or commercial settings, emphasizing ease of installation and efficiency.

Product Information

Standard Information

• Product Line: AMST
• Product Category: Air Handler

Technical Specifications

• Capacity: 2.5 Tons
• Cooling BTU: 30000
• Maximum Air Flow: 1185 CFM
• Minimum Air Flow: 855 CFM
• Input Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 5.6 Amps
• Recommended Breaker Size: 15 Amps
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Product Width: 17 1/2 Inches
• Product Height: 53 7/16 Inches
• Product Depth: 21 Inches
• Product Weight: 114 Pounds
• Refrigerant Type: R-32
• Motor Type: ECM
• Mount Type: Multi-Position
• Installation Location: Indoor
• Electric Heat: Available
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Parts Warranty: 10 Limited Years
• Blower Motor Type: Multi-Speed
• Cabinet Air Leakage: less than 1.4% at 0.5 inches H2O when tested in accordance with ASHRAE standard 193
• A2L Compliant: Yes
