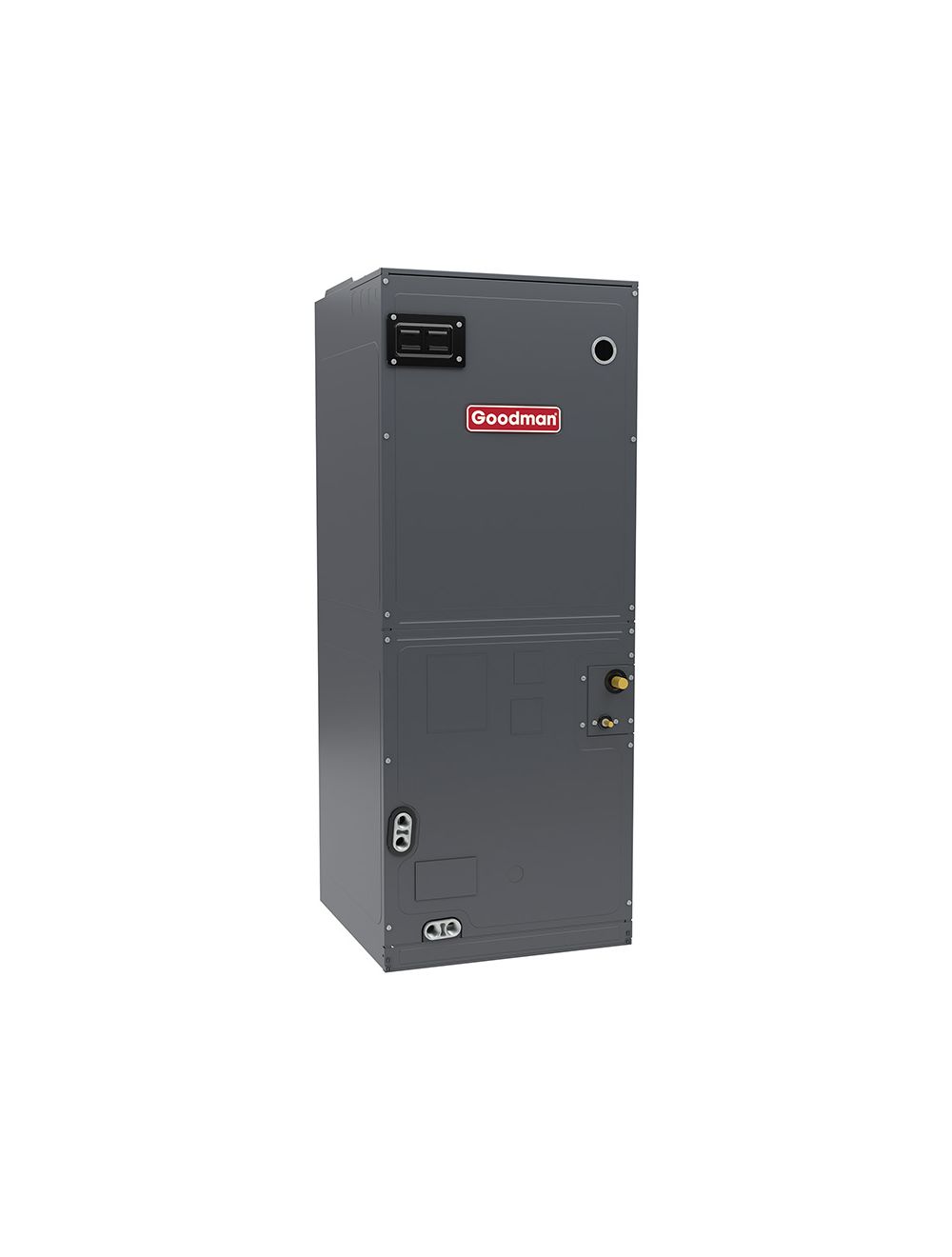

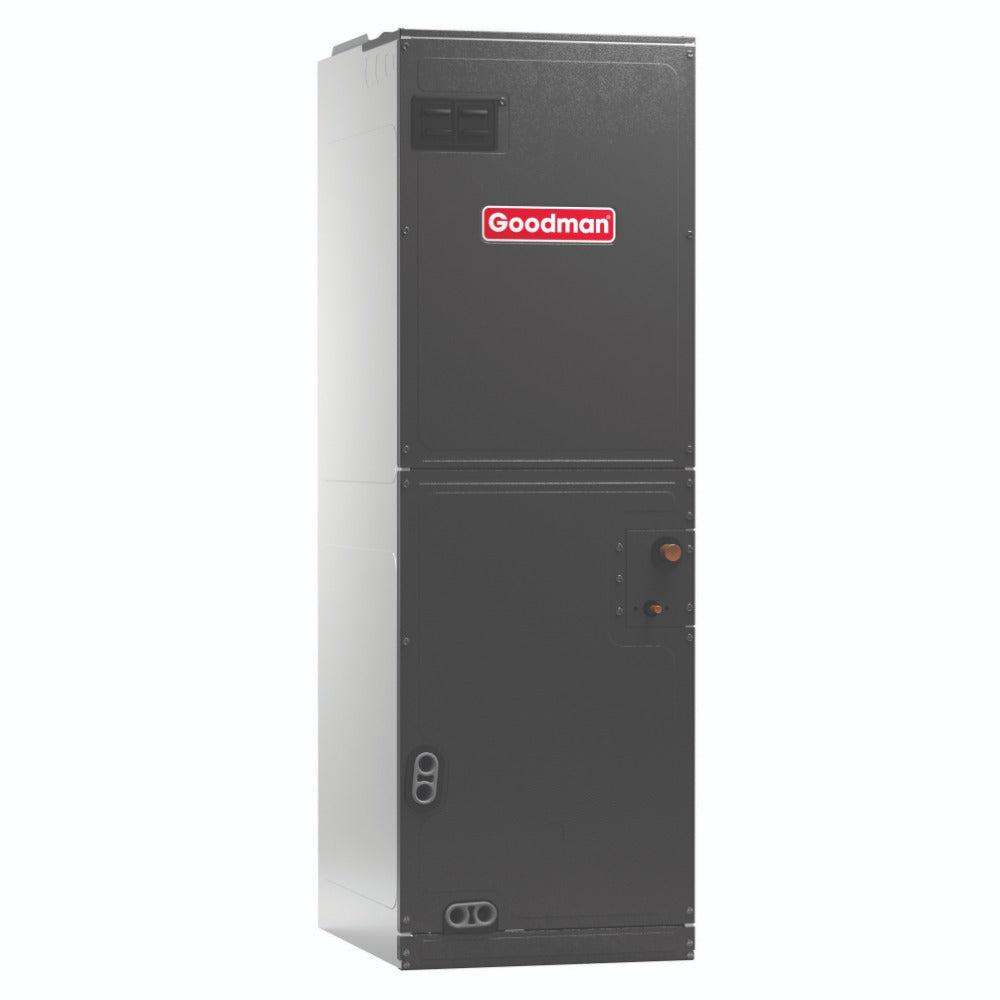

US Aluminum AHVE60DP1300 5-Ton Air Handler

Product Description

The US Aluminum AHVE60DP1300 is a reliable air handler suitable for effective air distribution. This unit includes an all-aluminum evaporator coil and a thermoplastic drain pan, providing durability and performance. It uses a variable-speed ECM blower motor that adjusts airflow for efficiency. An internal electronic expansion valve (EEV) regulates refrigerant flow, enhancing comfort. It can be installed horizontally or vertically according to your needs.

• All-aluminum evaporator coil and thermoplastic drain pan.
• Variable-speed ECM blower motor for efficient airflow.
• ETL and AHRI certified for quality assurance.

Product Highlights

The air handler is optimized for R-32 refrigerant, making it a modern choice. Its insulated cabinet and embossed finish contribute to its efficiency and performance.

Product Information

Standard Information

• Brand: US Aluminum
• MPN: AHVE60DP1300

Technical Specifications

• Product Line: AHVE
• Product Category: Air Handler
• Type: Air Handler
• Capacity: 5.0 Tons
• Cooling BTU: 60000
• Refrigerant Type: R-32
• Configuration: Horizontal
• Installation Location: Indoor
• TXV Installed: Yes
• Blower Motor Type: ECM Variable-Speed
• Maximum Air Flow: 1640 CFM
• Voltage: 208/230 Volts
• Minimum Circuit Ampacity: 6.5 Amps
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Product Dimensions: 21D x 25W x 58H
• Product Weight: 152 Pounds
• Warranty: 10 Limited Years
