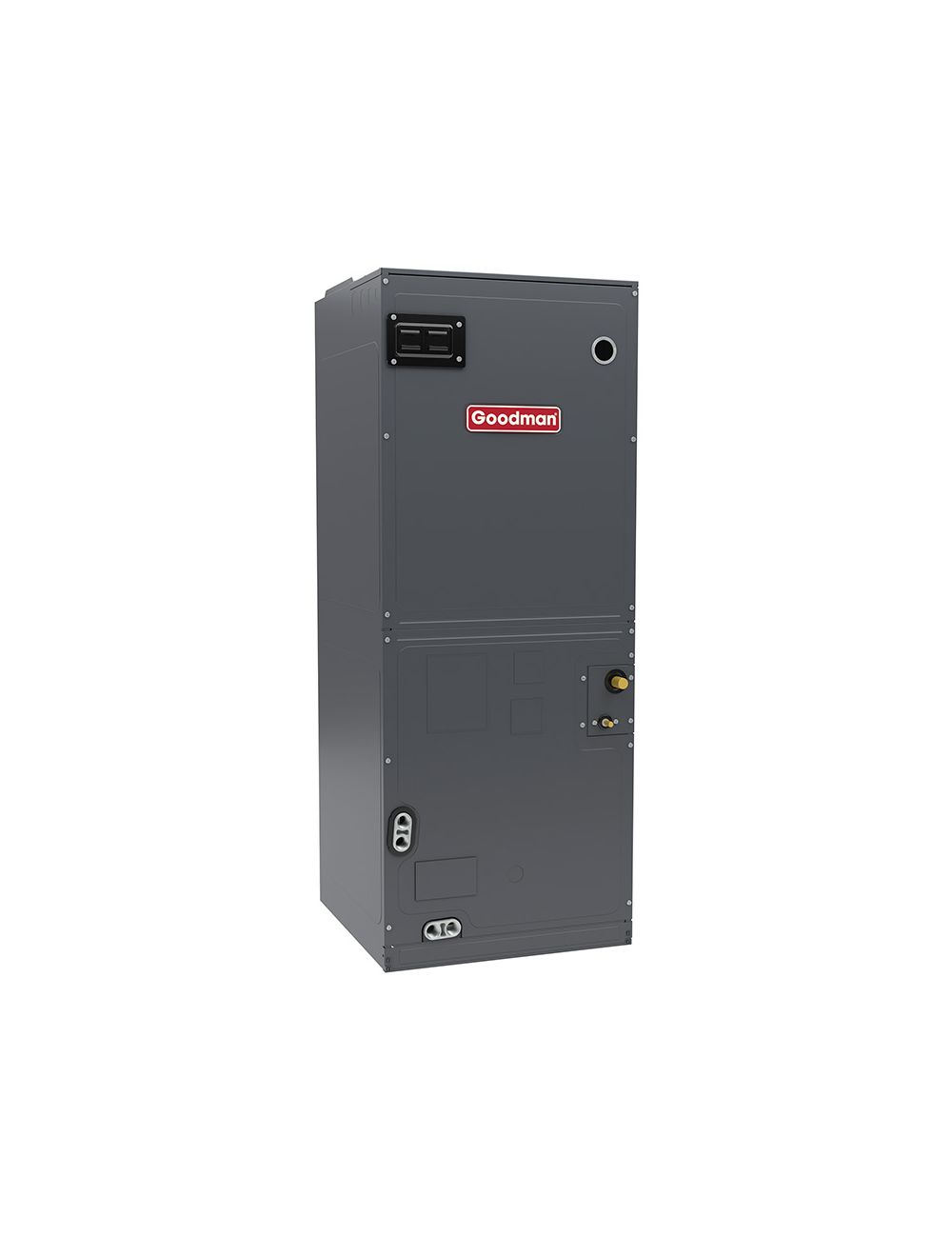

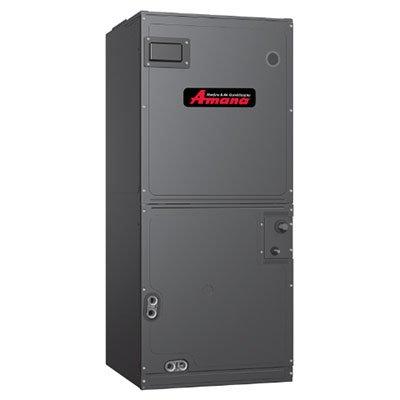

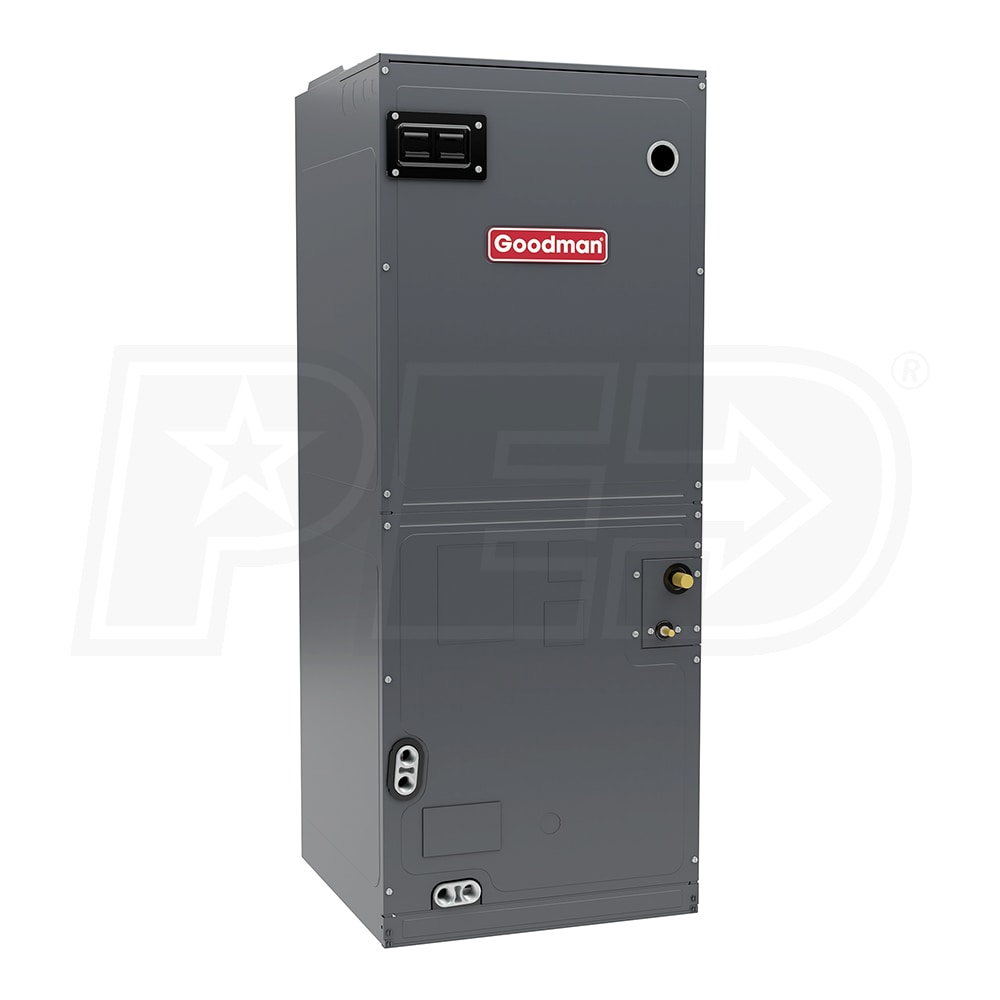

US Aluminum AHVE42CP1300 Air Handler 3.5 Ton Replacement MPN

Product Description

The US Aluminum AHVE42CP1300 is an air handler that provides reliable air distribution. It includes a durable all-aluminum evaporator coil, a thermoplastic drain pan, and a variable-speed ECM blower motor for efficient performance. The product also features an internal electronic expansion valve (EEV) that manages refrigerant flow effectively. This unit supports both horizontal and vertical installation configurations, allowing for flexibility depending on the space available. The insulated cabinet design minimizes noise and reduces air leakage.

• Equipped with an internal electronic expansion valve (EEV).
• Features a variable-speed ECM blower motor.
• Utilizes an all-aluminum evaporator coil.

Product Highlights

This air handler is ideal for indoor applications and can handle a cooling capacity of 3.5 tons, making it suitable for various residential and commercial spaces.

Product Information

Standard Information

• MPN: AHVE42CP1300
• Brand: US Aluminum

Technical Specifications

• Type: Air Handler
• Configuration: Horizontal
• Refrigerant Type: R-32
• Capacity: 3.5 Tons
• Cooling BTU: 42000
• Blower Motor Type: ECM Variable-Speed
• Maximum Air Flow: 1320 CFM
• Minimum Air Flow: 1260 CFM
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 6.5 Amps
• Recommended Breaker Size: 15 Amps
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Product Width: 21 Inches
• Product Depth: 21 Inches
• Product Height: 53 7/16 Inches
• Product Weight: 125 Pounds
• Shipping Weight: 140 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Parts Warranty: 10 Limited Years
• Electric Heat: Available
• TXV Installed: Yes
• Motor Speed: 3/4 HP
