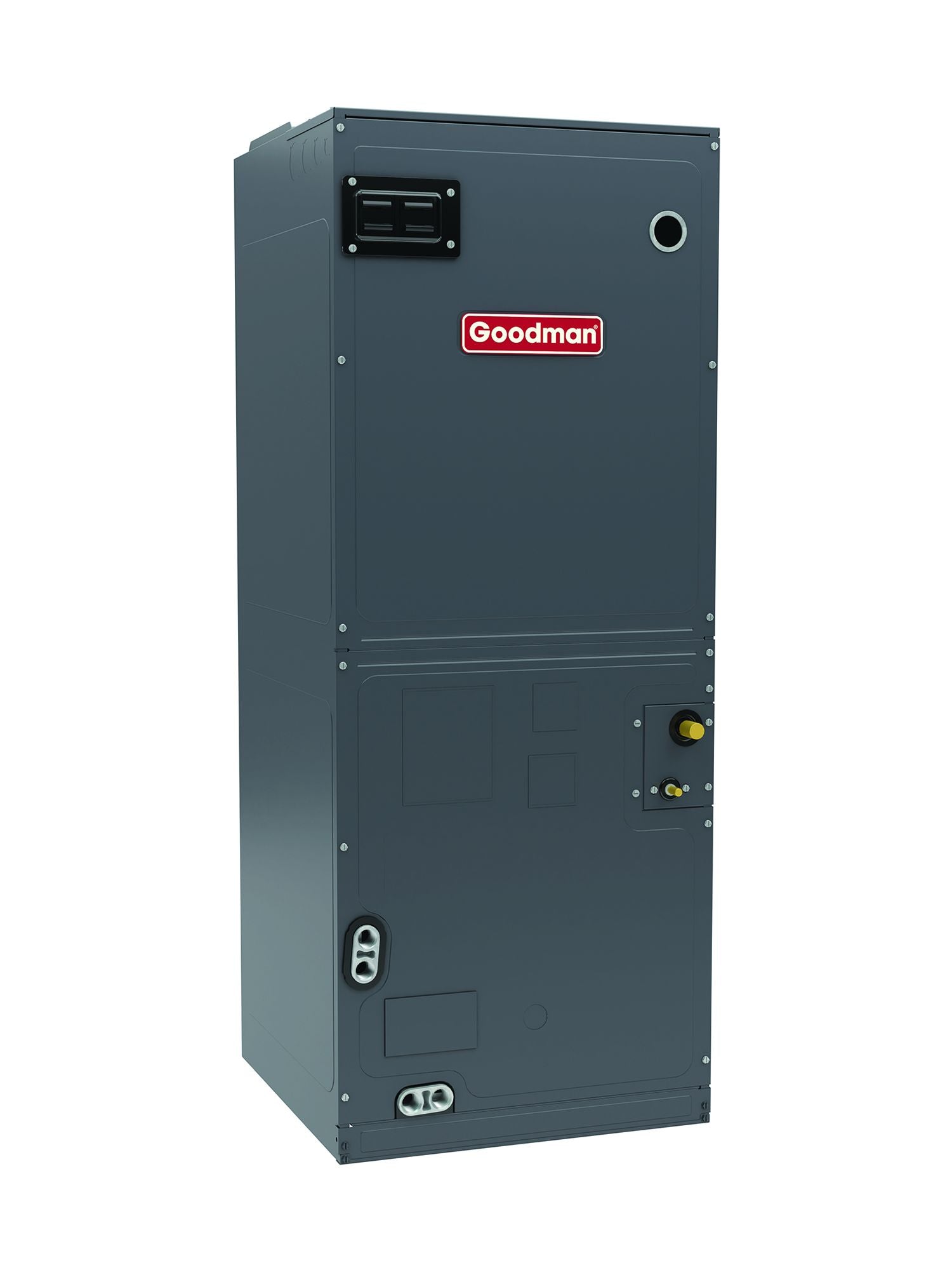

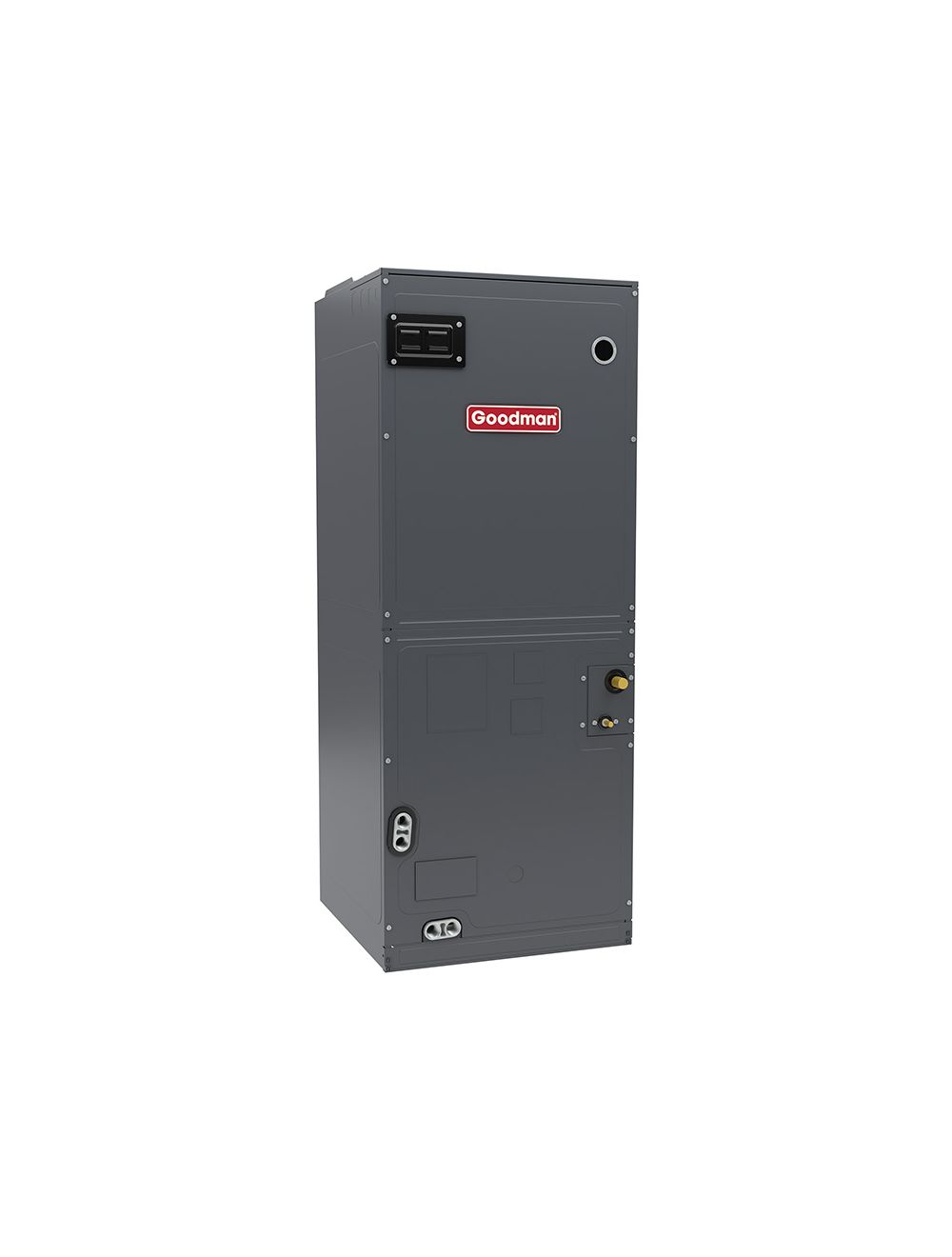

US Aluminum AHVE24BP1300 Air Handler 2.0 Ton Variable Speed ECM Blower

Product Description

The US Aluminum AHVE24BP1300 is a two-ton air handler suitable for residential use. This unit provides efficient air distribution with its durable all-aluminum evaporator coil and variable-speed ECM blower motor.

• Features an all-aluminum evaporator coil.
• Includes a variable-speed ECM blower motor.
• Compatible with R-32 refrigerant.

Product Highlights

The air handler can be installed either horizontally or vertically and is certified by ETL and AHRI for safety and performance.

Product Information

Standard Information

• Brand: US Aluminum
• MPN: AHVE24BP1300

Technical Specifications

• Product Line: AHVE
• Product Category: Air Handler
• Capacity: 2.0 Tons
• Cooling BTU: 24000
• Refrigerant Type: R-32
• Configuration: Horizontal
• Installation Location: Indoor
• Blower Motor Type: ECM Variable-Speed
• Maximum Air Flow: 800 CFM
• Minimum Air Flow: 610 CFM
• Input Voltage: 208/230 Volts
• Electrical Phase(s): 1-Phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 4.9 Amps
• Recommended Breaker Size: 15 Amps
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Cabinet Width: 17.5 Inches
• Product Height: 45 Inches
• Product Width: 17.5 Inches
• Product Depth: 21 Inches
• Product Weight: 100 Pounds
• Total Shipping Weight: 115 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 10 Years
• Compressor Warranty: 10 Years
