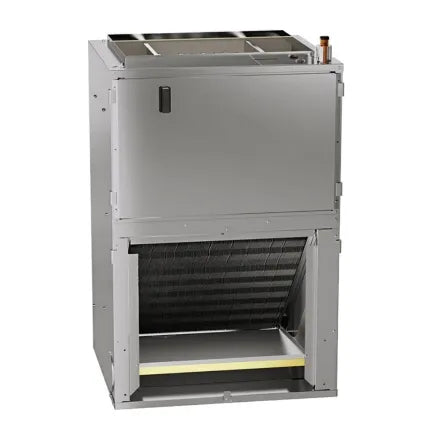

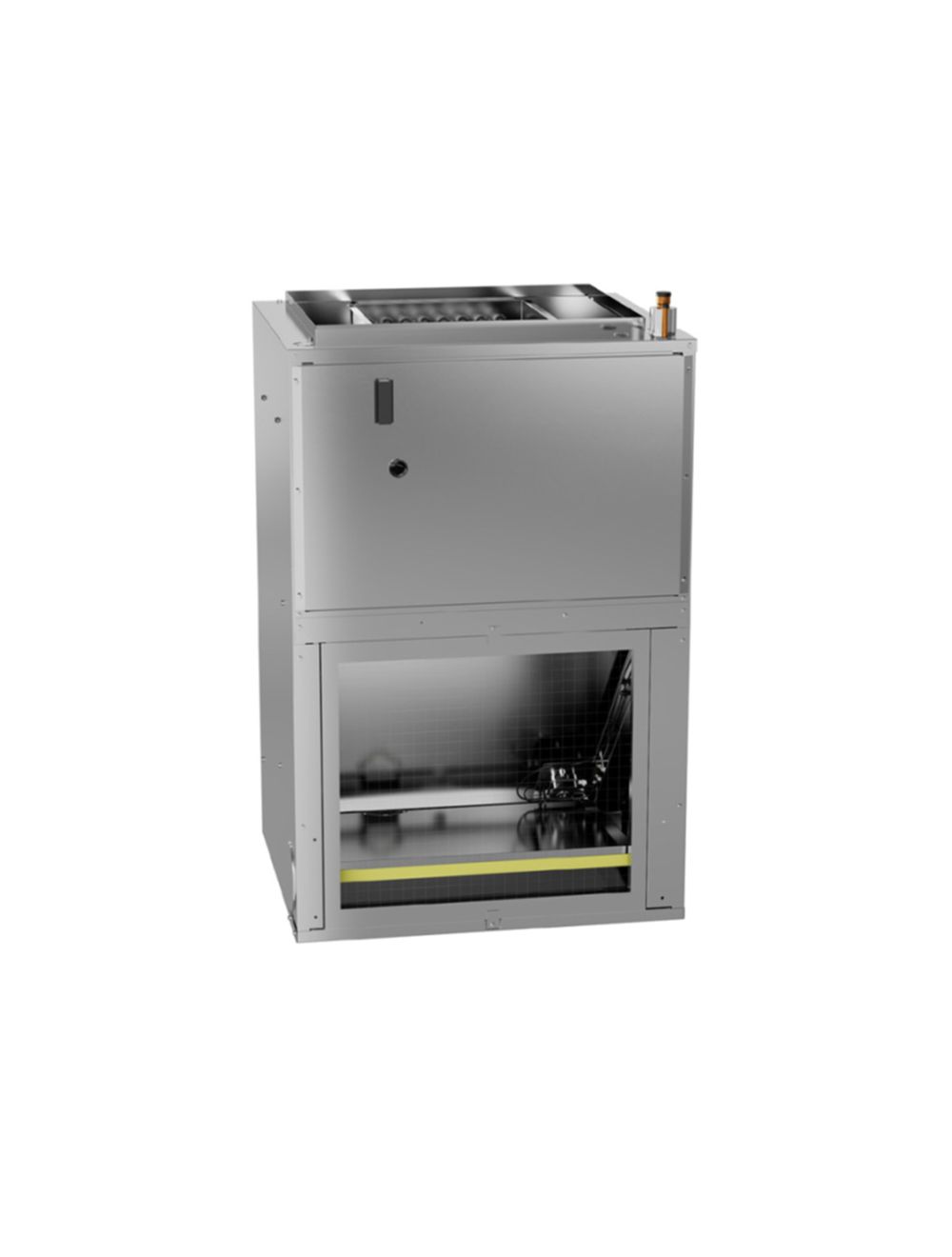

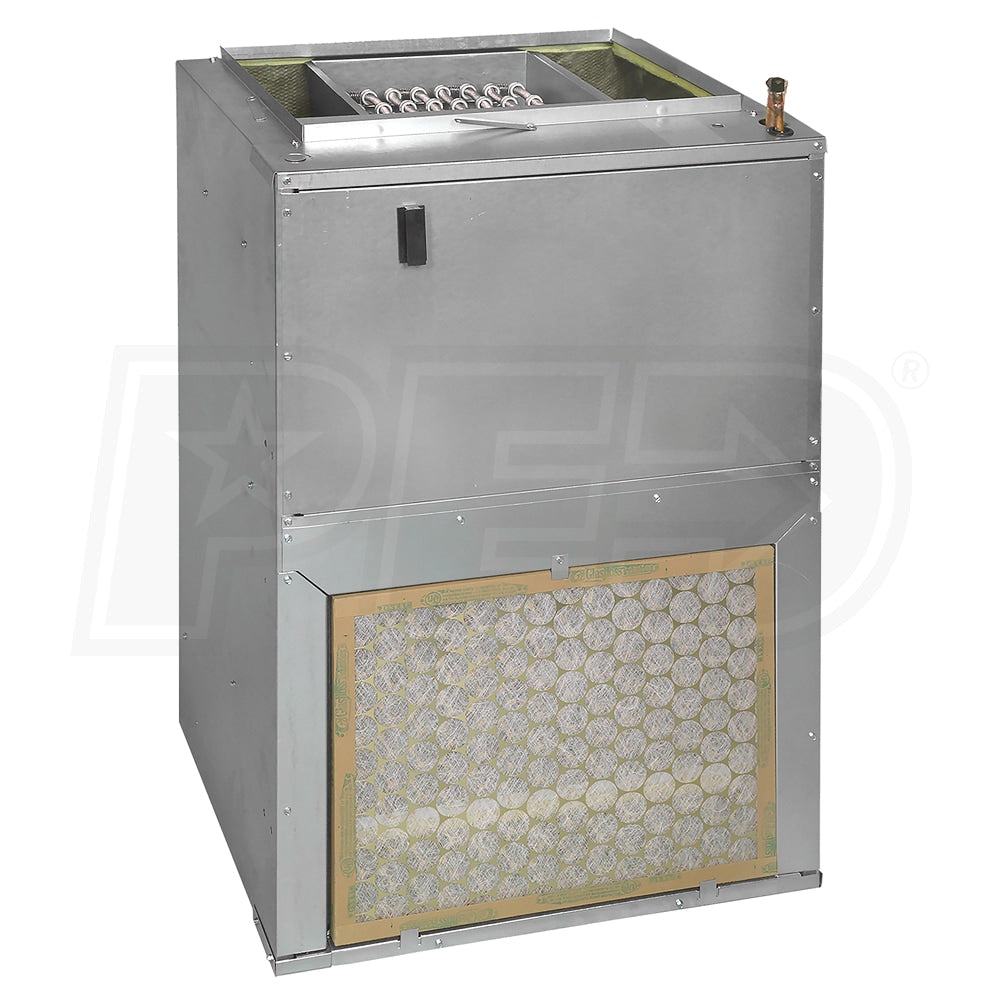

US Aluminum ACST18MU1305 Air Handler 1.5 Ton with 5kW Electric Heat

Product Description

The US Aluminum ACST18MU1305 is a wall-mounted air handler with a capacity of 1.5 tons and an electric heat kit rated at 5kW. This unit operates using R-32 refrigerant, making it efficient for indoor air conditioning applications. It includes a multi-speed ECM motor for improved air flow and performance.

• Equipped with a multi-speed ECM motor
• Features an all-aluminum evaporator coil
• Includes a built-in filter rack and wall-mounting bracket

Product Highlights

This air handler is designed for indoor installation and is suitable for central split systems. It is AHRI certified and ETL listed, ensuring it meets industry standards for safety and efficiency.

Product Information

Standard Information

• Type: Air Handler
• Mount Type: Wall Mounted

Technical Specifications

• Capacity: 1.5 Tons
• Cooling BTU: 18000
• Electric Heat Capacity: 5.0 kW
• Maximum Air Flow: 846 CFM
• Voltage: 240 Volts
• Weight: 94 Pounds
• Product Height: 36 Inches
• Product Width: 20 3/16 Inches
• Product Depth: 16 1/8 Inches
