US ALUMINUM ACSF24LN1608 Air Handler 2 Ton 8 kW

Product Description

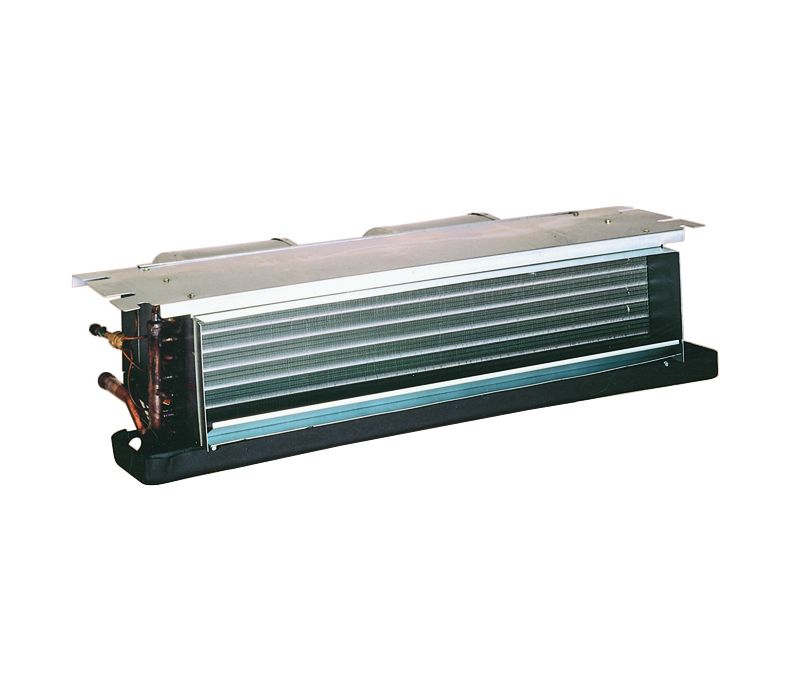

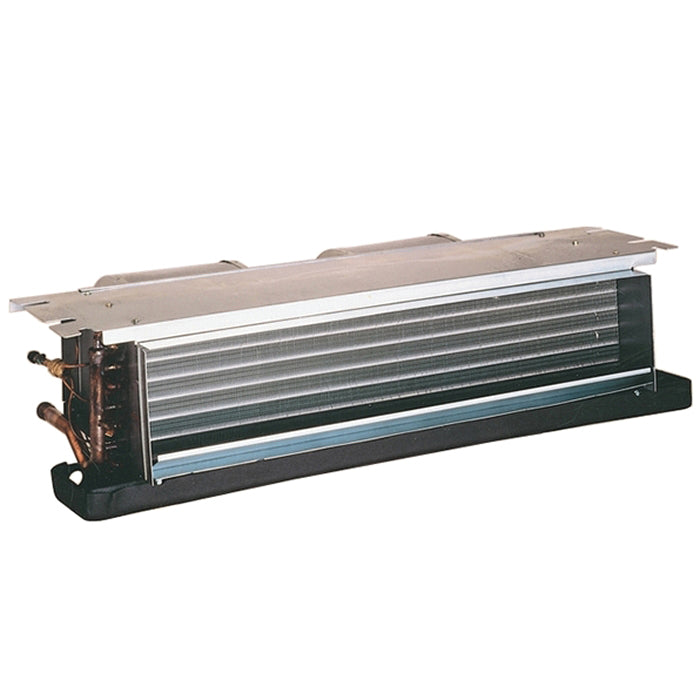

The US ALUMINUM ACSF24LN1608 is a two-ton air handler suitable for ceiling mount installation. This model features an ECM motor and is built with an all-aluminum coil. Compatible with both R-22 and R-410A refrigerants, it delivers efficient heating through a built-in electric heater with a capacity of eight kilowatts. The unit operates using 208/230 volts and is designed for single-phase applications.

• Ceiling mounted configuration
• Equipped with an ECM motor
• Electric heat capacity of 8 kW

Product Highlights

This air handler is effective for various applications in HVAC systems, providing reliable heating and cooling in residential and commercial settings. The galvanized steel construction adds durability.

Product Information

Standard Information

• Brand: US ALUMINUM
• Model Number: ACSF24LN1608

Technical Specifications

• Nominal Capacity: 2 ton
• Cooling Capacity: 24000 Btu/hr
• Refrigerant Type: R-22, R-410A
• Motor Type: ECM
• Electric Heat Capacity: 8.0 kW
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 44 Amps
• Recommended Breaker Size: 45 Amps
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Height: 10 inches
• Width: 49 1/4 inches
• Depth: 11 1/4 inches
• Material: Steel
• Finish: Galvanized
• HP Rating: 1/4 hp
• Wattage: 8 kW
• Total Shipping Weight: 79 lbs
• Parts Warranty: 10 Years
• Maximum Air Flow: 927 CFM
• Minimum Air Flow: 781 CFM
• ETL Listed: Yes
• AHRI Certified: Yes
