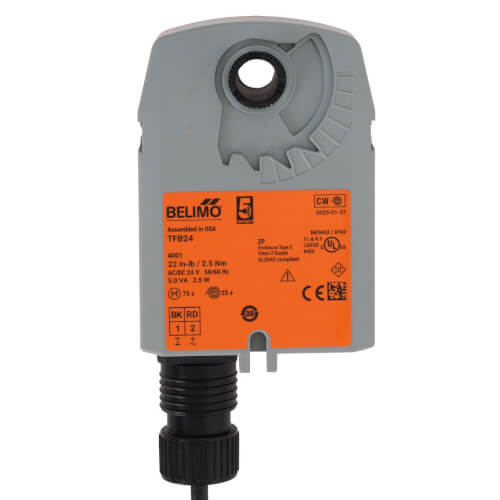

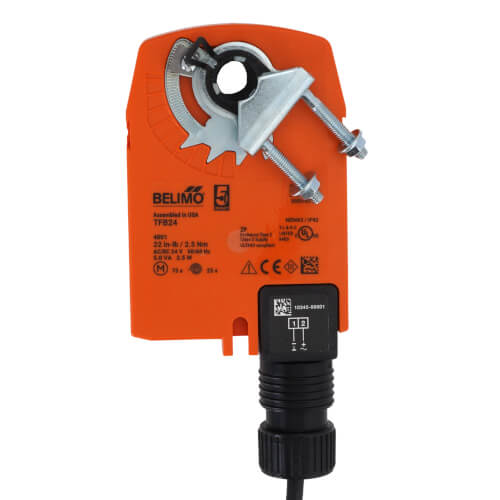

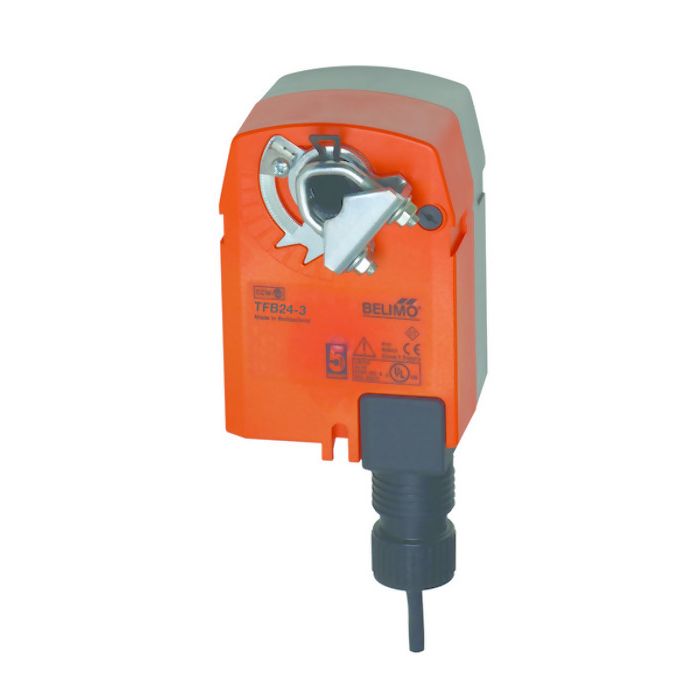

Belimo TFB24 Direct Coupled Actuator 22 in-lb

Product Description

The Belimo TFB24 is a direct coupled actuator designed for HVAC systems. It provides reliable on/off control with a torque of 22 inch-pounds, suited for dampers requiring spring return operation. This actuator operates on a power supply of twenty-four volts alternating current or direct current, making it versatile for various applications.

• True spring return operation for fail-safe application
• Consistent torque even without power

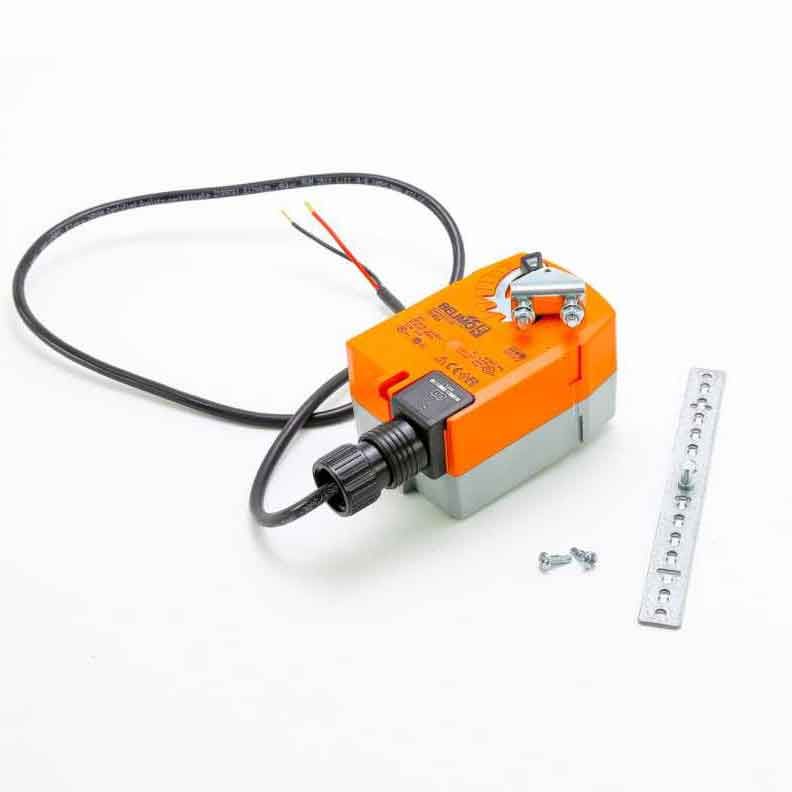

• Includes a three-foot cable for easy installation

Product Highlights

The Belimo TFB24 is known for dependable operation in HVAC systems, ensuring dampers close tightly when power is lost. It features an easy-to-adjust mechanical stop to limit rotation and an overload-proof design to prevent burnout.

Product Information

Standard Information

• Brand: Belimo
• MPN: TFB24

Technical Specifications

• Power Consumption: 2 W running, 1.3 W holding
• Operating Conditions: -22 F to 122 F
• Electrical Connection: 3 ft. 18 GA appliance cable with 1/2 inch conduit connector
• Housing: NEMA 2, IP42, UL Enclosure Type 2
• Weight: 1.67 lbs
• Dimensions: 3.8 inches (L) x 9 inches (W) x 3.55 inches (H)
• Torque: 22 lb-in
• Fail Safe Mode: Spring Return
• Control Input: On/Off
• Direction of Rotation: Reversible with clockwise/counterclockwise mounting
