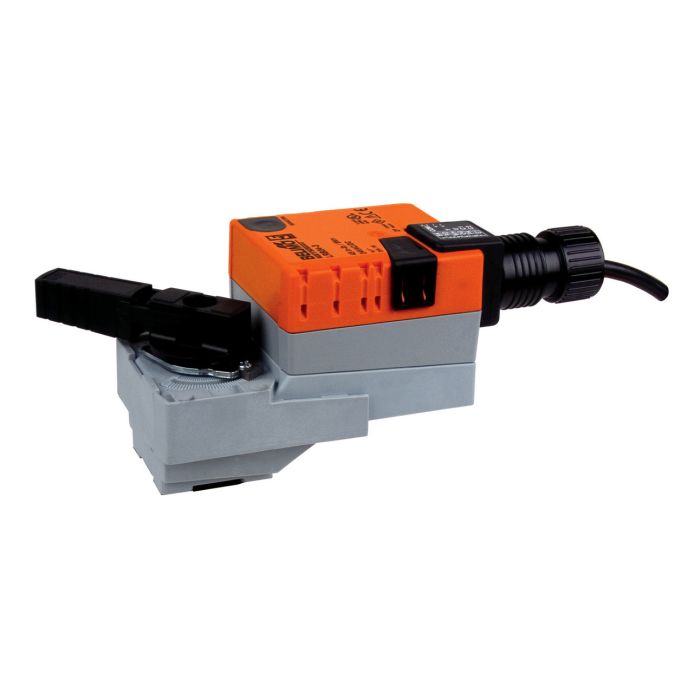

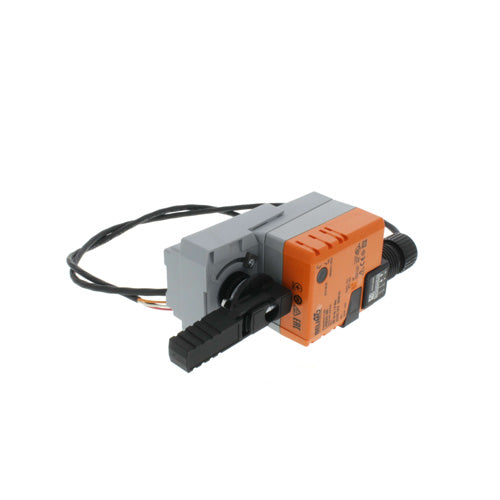

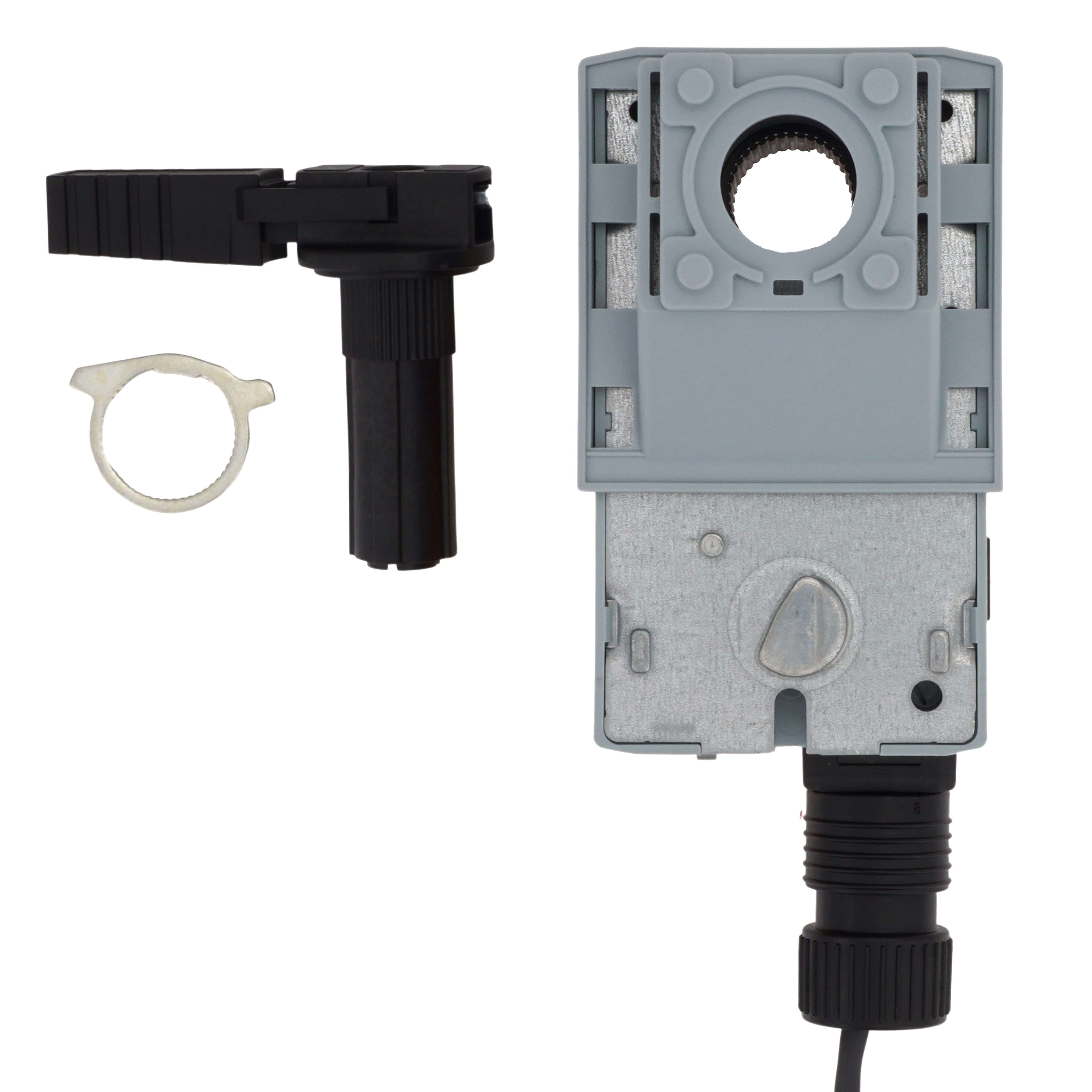

Belimo LRB24-SR Valve Actuator 24 Volt Non-Spring Return

Product Description

The Belimo LRB24-SR is a valve actuator designed for proportional control. This actuator operates with a 24 Volt power supply and features non-spring return functionality. It is intended for HVAC applications to control airflow efficiently. The actuator supports both on/off and floating point control methods.

• Torque: 45 in-lb
• Power supply: 24 VAC/DC
• Control input values: 2 to 10 VDC

Product Highlights

The LRB24-SR actuator is built to handle demanding conditions while maintaining high performance. It has a compact design that integrates easily into existing systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: LRB24-SR

Technical Specifications

• Voltage: 24V
• Actuator Type: Non fail-safe
• Power Consumption (Holding): 0.4 W
• Power Consumption (Running): 1.5 W
• Running Time (Motor): 90 seconds
• Angle of Rotation: 90 degrees
• Degree of Protection: IP54
• Shipping Weight: 3.000 lbs
