Product Description

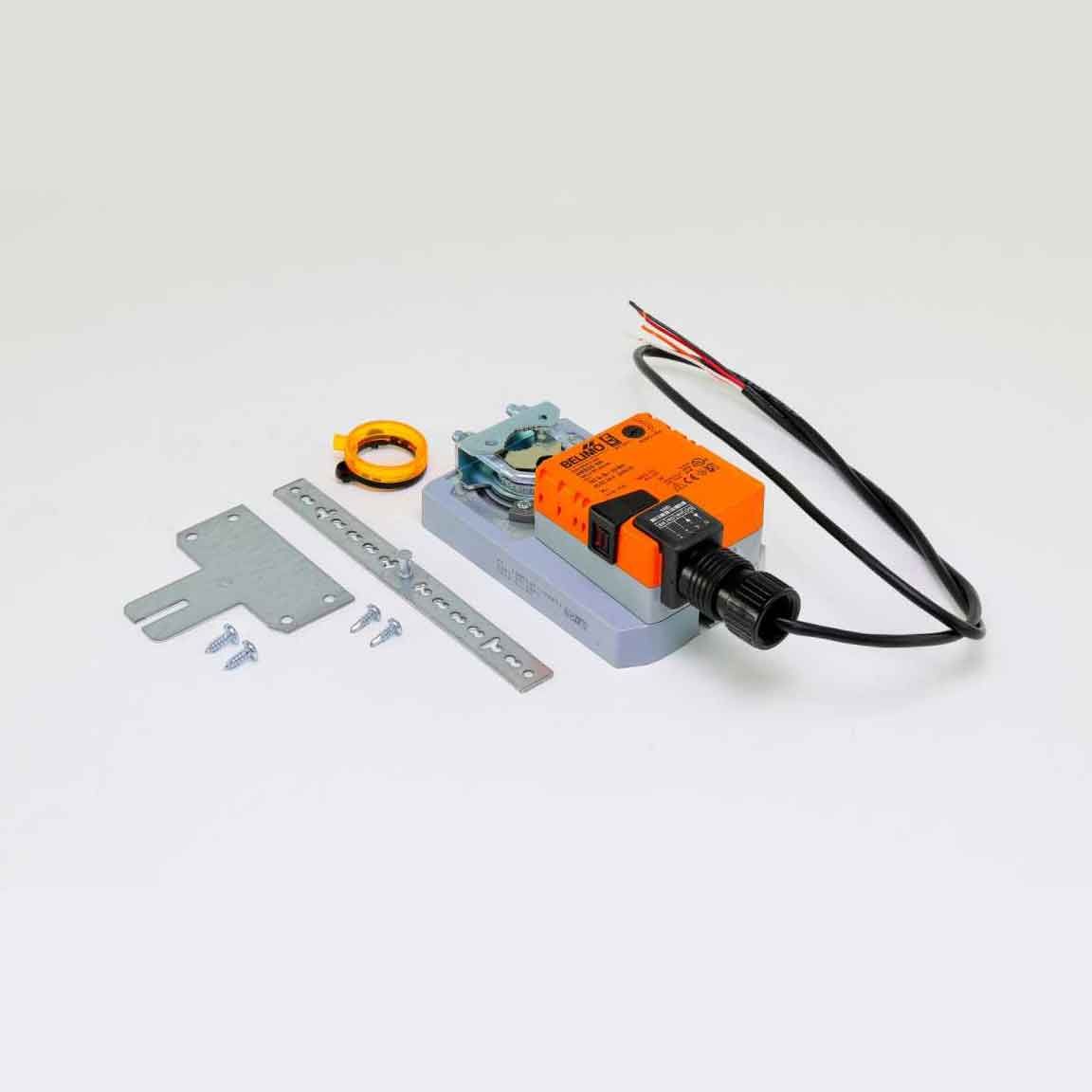

The Belimo AMB24-SR Damper Actuator with MPN AMB24-SR provides precise proportional control in HVAC systems. Designed for direct coupling, it operates with 24 V power and features a non-spring return mechanism.
- Proportional control for accurate modulation
- Non-spring return mechanism to ensure reliability
- Suitable for direct coupling
Product Highlights
The Belimo AMB24-SR Damper Actuator modulates dampers precisely with a 2 to 10 VDC input. It is protected against overloads, and a visual indicator shows the actuator's position. This actuator is ideal for HVAC systems, offering 180 in-lb torque and a reliable non-spring return mechanism.
Product Information
Standard Information
-
MPN: AMB24-SR
-
Brand: Belimo
-
Weight: 2.45 lbs
-
Dimensions: 11.2 x 5.7 x 3.5 inches
Technical Specifications
-
Voltage: 24 VAC/DC
-
Connector Type: Screw
-
Angle of Rotation: 95 degrees
-
Control Type: Proportional DC 2-10 V
-
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
-
Manual Override: External push button
-
Power Consumption (Running): 2.5 W
-
Power Consumption (Holding): 0.4 W
-
Torque: 180 in-lb (20 Nm)
-
Running Time: 95 seconds per 90 degrees
-
Electrical Connection: Cable
-
Safety Function: None
