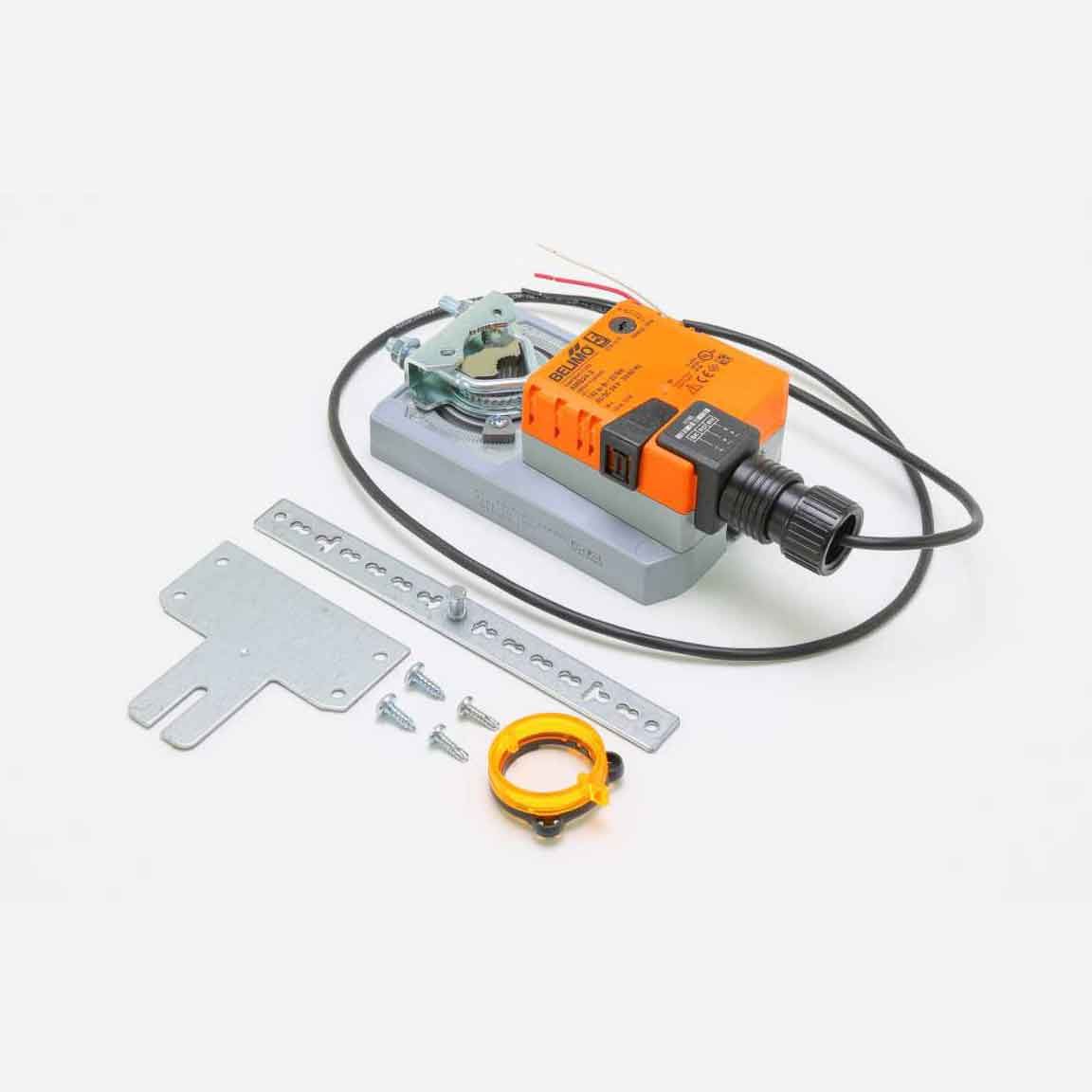

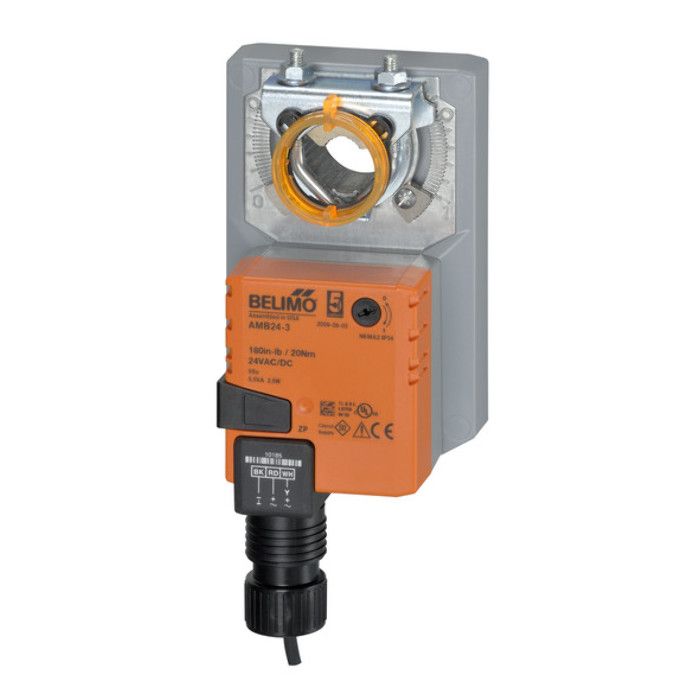

Belimo AMB24-3 Direct Coupled Actuator 180 in-lb

Product Description

The Belimo AMB24-3 is a direct coupled actuator designed for on/off and floating point control of dampers in HVAC systems. With a torque of 180 in-lb, this actuator operates efficiently within an ambient temperature range of minus twenty-two degrees Fahrenheit to plus one hundred twenty-two degrees Fahrenheit. It connects to a power supply of twenty-four VAC or VDC and provides reliable performance over its entire operational range.

• Torque: 180 in-lb
• Power supply: 24 VAC/VDC
• Operating temperature: -22 F to 122 F

Product Highlights

The AMB24-3 combines patented brushless DC motor technology with comprehensive torque for long-lasting operation. It includes features for easy installation and user-friendly operation, making it suitable for a variety of applications in heating, ventilation, and air conditioning systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: AMB24-3

Technical Specifications

• Power Consumption: 2.5 W
• Electrical Connection: 3 ft. 18 GA plenum cable with 1/2 in. conduit connector
• Weight: 2.43 lbs
• Dimensions: Length 11.3 inches, Width 6.6 inches, Height 3.75 inches
• Operating Conditions: -22 F to 122 F
• Housing: NEMA 2, IP54 UL Enclosure Type 2
