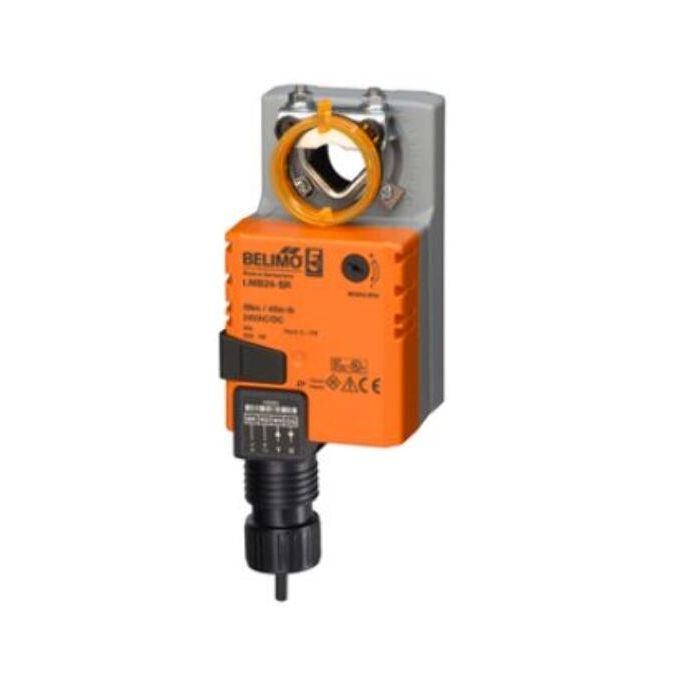

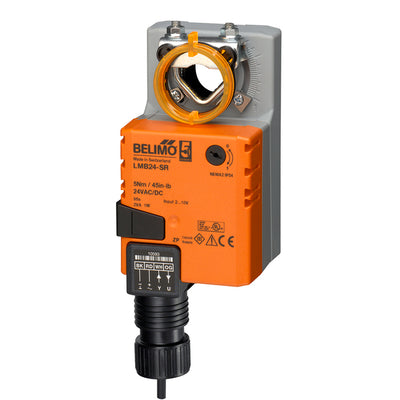

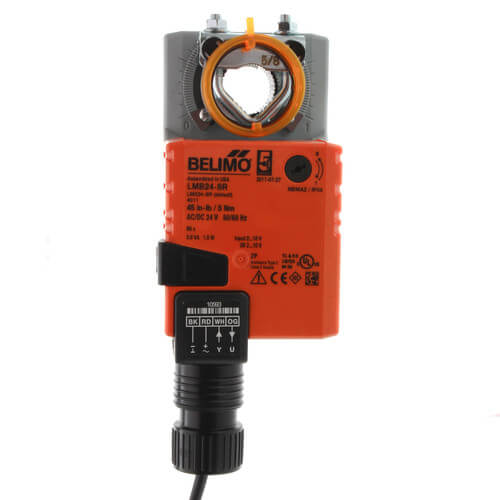

Belimo LMB24-SR Direct Coupled Actuator 45 in-lb

Product Description

The Belimo LMB24-SR is a direct coupled actuator with a torque rating of forty five inch-pounds. This model operates on twenty four volts AC or DC and is designed for use in HVAC systems to modulate dampers proportionately. The actuator responds to control signals of two to ten VDC or four to twenty mA, making it versatile for various applications.

• Modulating, Non-Spring Return Actuator
• Uses a sensorless brushless DC motor
• Compact design for easy installation

Product Highlights

This actuator is suitable for proportional modulation in HVAC settings, efficiently controlling airflow and maintaining system balance.

Product Information

Standard Information

• Brand: Belimo
• MPN: LMB24-SR

Technical Specifications

• Power Consumption: 1.5 W Running, 0.4 W Holding
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)

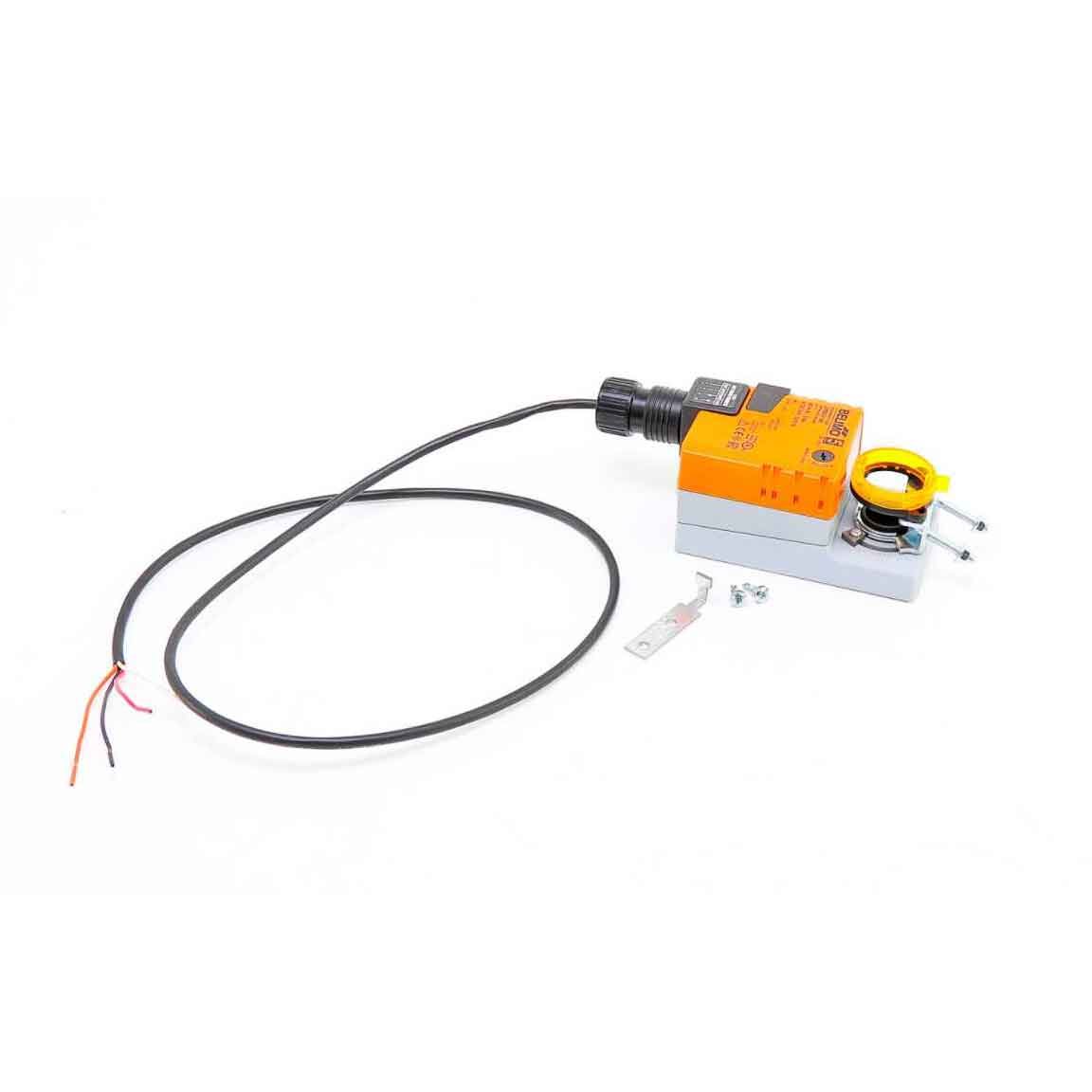

• Electrical Connection: 3 ft plenum rated cable with ½ in conduit connector
• Degree of Protection: NEMA 2, IP54
• Angle of Rotation: 95 degrees
• Manual Override: External push button
• Torque: 45 in-lb (5 Nm)
• Control Type: DC 2 to 10 V
