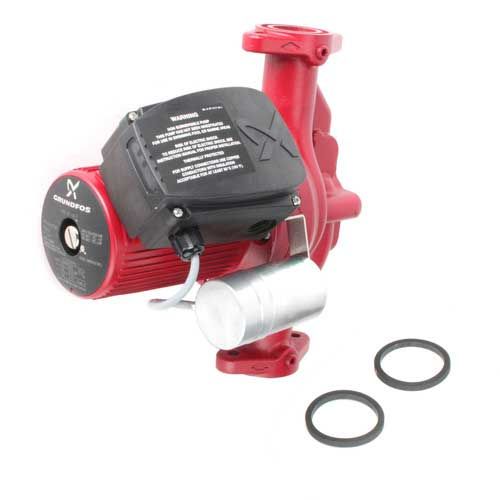

Grundfos 96402814 UPS50-40F - 1/3 HP 115V 3-Speed Booster Pump

Product Description

The Grundfos UPS50-40F, identified by MPN 96402814, is a 1/3 HP 115V 3-speed booster pump designed for heating and cooling applications. This pump features a two-inch flanged connection, with a flow range of twenty to one hundred eighty gallons per minute and a head range of one to sixty-two feet. Its canned rotor design allows for quiet operation and enhances life expectancy by minimizing wear.

• Suitable for heating and cooling applications
• Equipped with a 1/3 HP motor and 115V supply
• Features in-line mounting with two flanged connections

Product Highlights

Grundfos UPS Series pumps are known for their reliable performance and durability. The special rotor design ensures long-lasting operation, while the lubrication system reduces the need for maintenance.

Product Information

Standard Information

• Brand: Grundfos
• Model: UPS50-40/4

Technical Specifications

• Motor HP: 1/3 HP
• Motor RPM: 3-Speed
• Motor Voltage: 115V
• Motor Phase: 1 Ph
• Motor Hertz: 60 Hz
• Max Temp: 230 degrees F
• Weight: 52.00 lbs
• Pump Construction: Cast Iron
• Pump Class: Booster
• Pump Connection Size: 2 inches
• Pump Connection: Flanged
• Flanges Included: No
• Potable Water: No
• Pump Mounting: In-Line
