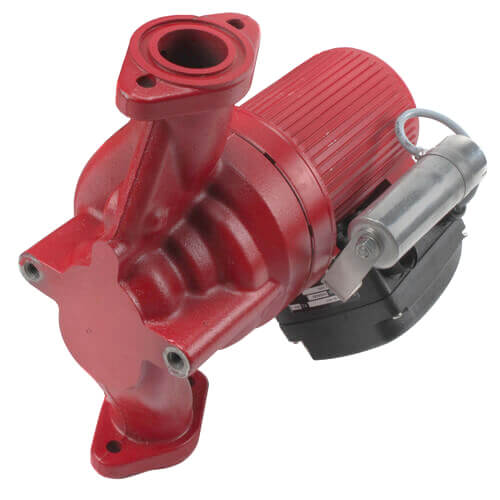

Grundfos 96402807 UPS40-240B 1-1/2 HP 460V Circulating Pump - Bronze Body Replacement 96463766, 96406940, 96407101

Product Description

The Grundfos UPS40-240B Model 96402807 is a robust 460V circulating pump designed for efficient liquid circulation in HVAC systems. This product, with its durable bronze body, is particularly suited for residential and commercial applications requiring high performance.

• Exclusive wet rotor technology ensures up to 1-1/2 horsepower.
• Built-in motor protection enhances longevity and reliability.
• Maintenance-free operation with no mechanical seal.

Product Highlights

Grundfos circulating pumps feature an in-line mounting and are known for their whisper-quiet operation and leak-proof design. A water-cooled motor and GF 40/43 flange connection type underline the pump's installation ease and operational efficiency.

Product Information

Standard Information

• Power: 1-1/2 HP
• Voltage: 460V

Technical Specifications

• Material: Bronze
• Phase: 3
• Speeds: 2
• Max Head (Ft): 52.5
• Max Flow (GPM): 53.3
• Max Pressure (PSI): 145
• Frequency: 60 Hz
• Connection Type: Flanged x Flanged
