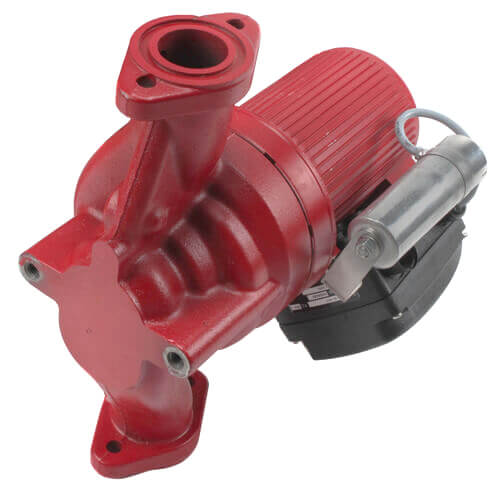

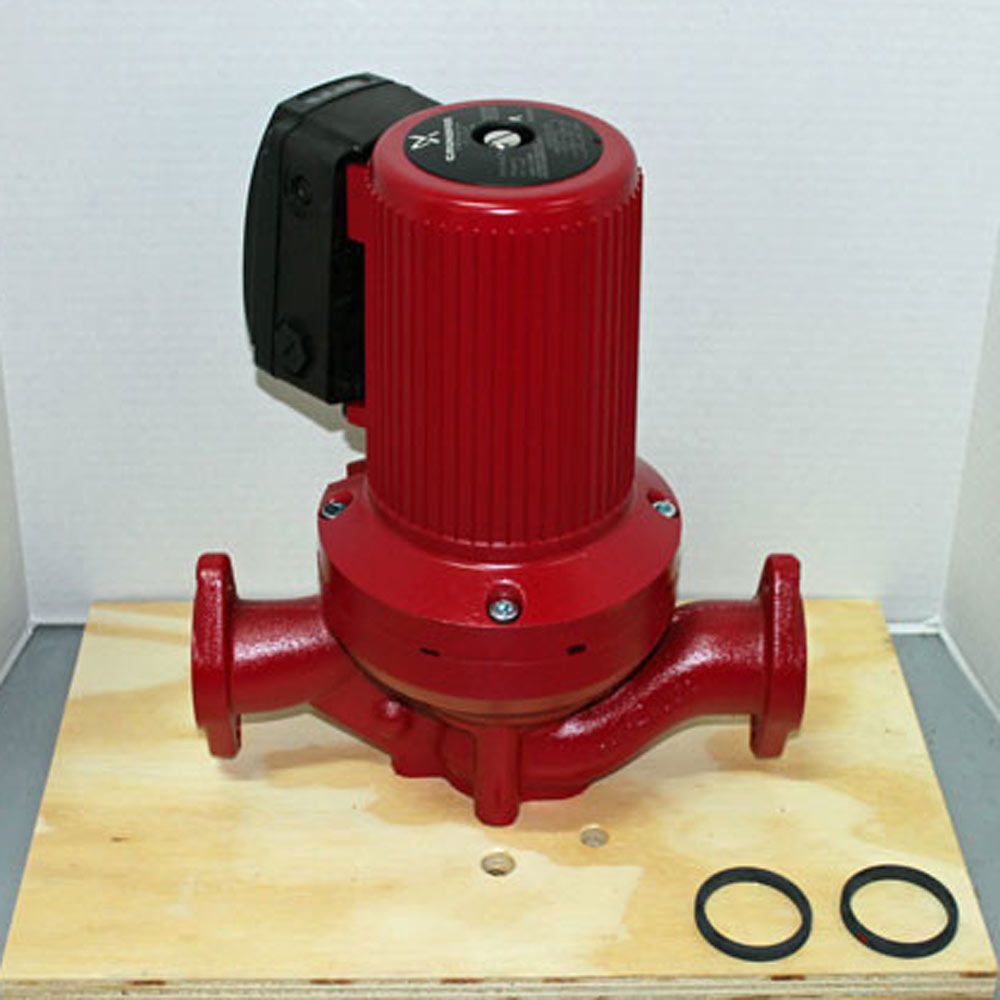

Grundfos 96402798 UPS40-240F 3-Speed Cast Iron Circulator Pump 230V 1-1/2 HP

Product Description

The Grundfos UPS40-240F Circulator Pump integrates advanced motor technologies with robust material design to provide reliable and efficient water circulation. Primarily used in hydronic heating and air conditioning systems, this pump features a durable cast iron construction. Enhance the efficiency of large-scale residential and commercial HVAC applications with this strategically engineered pump.

• Equipped with a three-speed, 1-1/2 horsepower motor adaptable to varying system requirements.
• Features a maintenance-free, wet-rotor design with built-in motor protection ensuring extended operational longevity.
• Incorporates a thermal overload protection switch and multi-speed settings for optimized performance.

Product Highlights

This Grundfos pump is crafted for continuous duty in HVAC systems and supports flange sizes of 1-1/2 inches. It includes corrosion-resistant components and a flange set available for purchase separately.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 96402798

Technical Specifications

• Construction: Cast Iron
• Motor Power: 1-1/2 HP
• Voltage: 208-230V
• Connection Type: 2-Bolt Flanged
• Maximum Operating Pressure: 145 PSI
• Maximum Temperature: 250 degrees Fahrenheit
