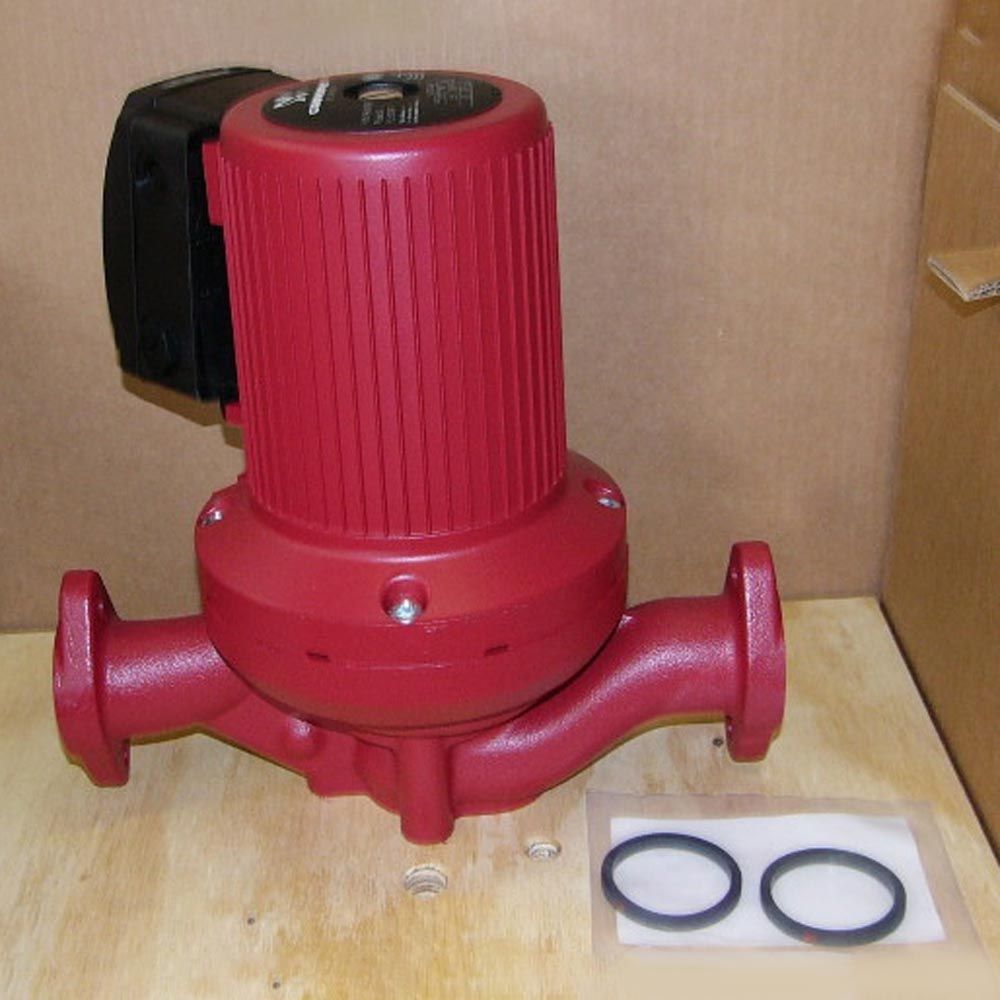

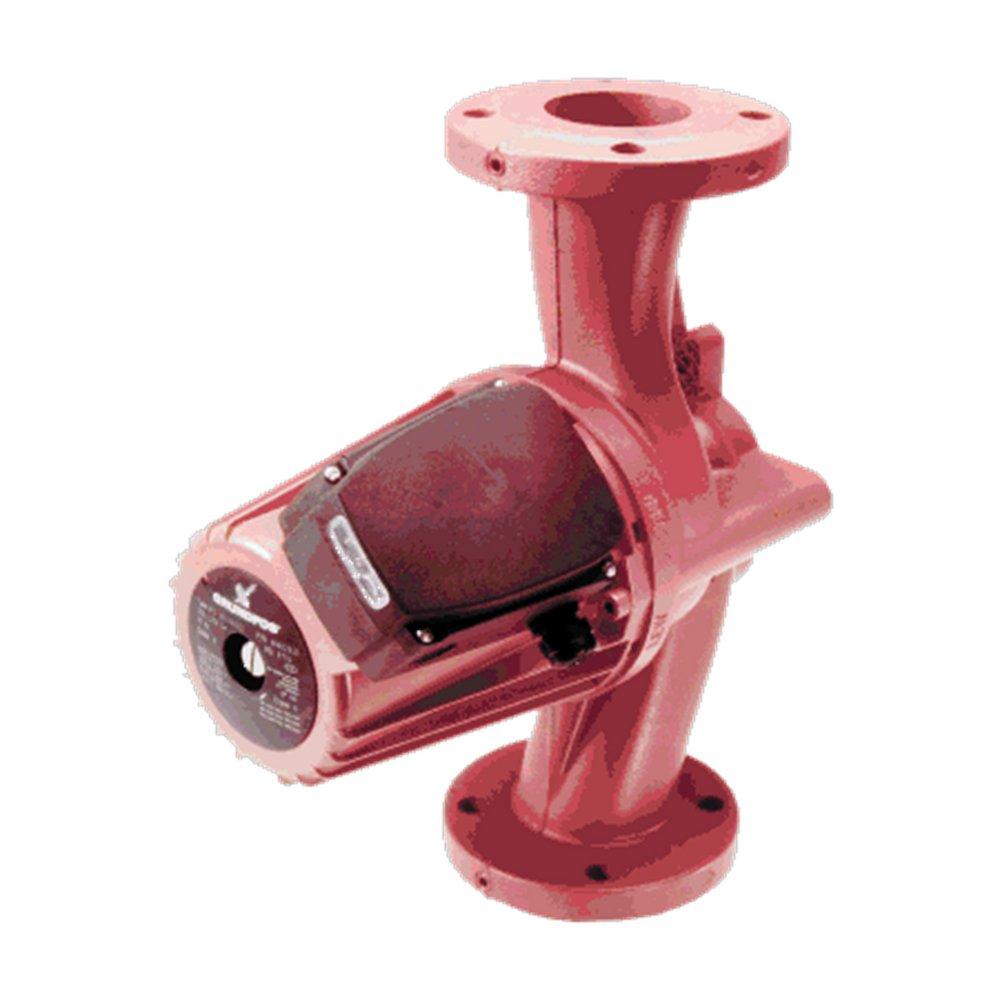

Grundfos 96402797 UPS 40-240 F 200 Series Circulator Pump 230V 1 Phase

Product Description

Grundfos model 96402797 UPS 40-240 F 200 Series Circulator Pump is a robust pump designed for various installations. The unit integrates the pump and motor into a single sealed unit, eliminating shaft seals and using just two gaskets to ensure minimal maintenance requirements.

• 230 volts
• 1 phase motor
• Included relay

Product Highlights

This circulator pump features a built-in thermal switch and comes with a USA oval flange standard. The bearings are lubricated by the liquid being pumped, providing a quieter operation and longer life. Ideal for use in plumbing and circulating water in heating or cooling systems.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 96402797
• Series: UPS
• Model: UPS40-240F

Technical Specifications

• Dimensions: 13-3/8 inches W x 13-1/2 inches H
• Amperage Rating: 5.15 to 6.2 A
• Power Rating: 1350 W
• Flow Rate: 130 gpm
• Maximum Head: 78.74 ft
• Motor Speed: 3196 to 3412 rpm
• Voltage Rating: 230 VAC
• Frequency Rating: 60 Hz
