Uponor Wirsbo Q4771010 1 inches Plastic Pex Cplg

Product Description

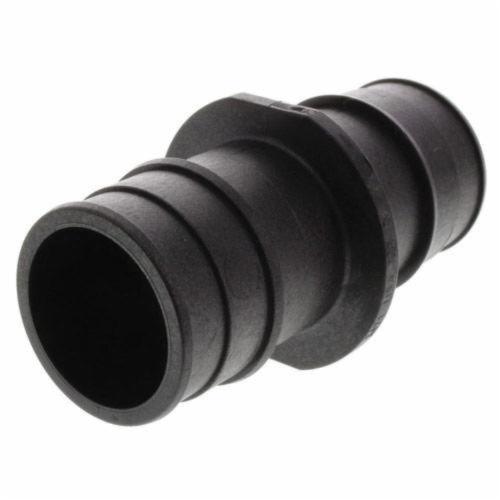

The UPONOR WIRSBO Q4771010 is a 1" Plastic Pex Cplg. This ProPEX engineered polymer (EP) coupling is for use in hot and cold domestic potable water distribution, residential fire safety, and radiant heating and cooling systems. Each end has an Uponor ProPEX fitting for connections to Uponor AquaPEX or Wirsbo hePEX tubing.

• 20% glass-reinforced polysulfone
• ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
• ASTM F1960 specification for cold expansion fittings with PEX reinforcing rings for use with cross-linked polyethylene (PEX) tubing

Product Highlights

The UPONOR WIRSBO Q4771010 coupling is suitable for PEX connections in potable water, fire safety, and radiant heating/cooling systems.

Product Information

Standard Information

• Brand: UPONOR WIRSBO
• Manufacturer Part Number: Q4771010

Technical Specifications

• Fitting / Connector Type: Coupling
• Nominal Size: 1 in
• End Style: F1960 Cold Expansion PEX
• Length: 2-1/2 in
• Pressure Rating: 150 psi
• Temperature Rating: 210 deg F
• Material: Polymer
• Manufacturer: Uponor
• Manufacturer #: Q4771010
• End Type 1: ProPEX
• End Type 2: ProPEX
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• End Size 1 [inch|mm]: 1"
• End Size 2 [inch|mm]: 1"
• Material group: Engineered Polymer
• Cv: 33.8
• A [inch]: 1.191 inch
• A [frac]: 1 3/16 inch
• B [inch]: 0.125 inch
• B [frac]: 1/8 inch
• C [inch]: 1.191 inch
• C [frac]: 1 3/16 inch
• D [inch]: 1.48 inch
• D [frac]: 1 31/64 inch
• E [inch]: 2.507 inch
• E [frac]: 2 1/2 inch
• F [inch]: 1.165 inch
• F [frac]: 1 11/64 inch
• Equivalent length through [ft]: 0.9 ft
• G [frac]: 47/64 inch
• G [inch]: 0.74 inch
• H [frac]: 19/32 inch
• H [inch]: 0.59 inch
