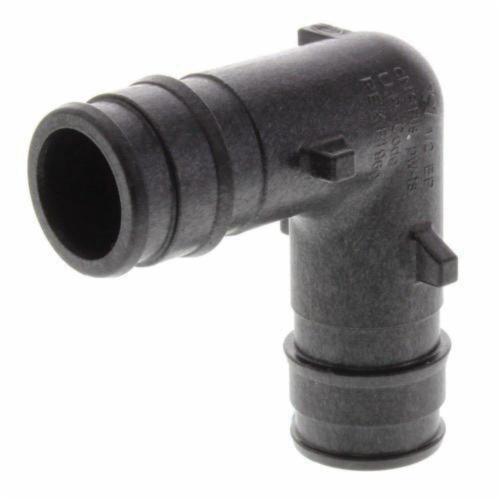

Uponor Wirsbo Q4760500 Propex 90 Elbow 1/2 inch

Product Description

The Uponor Wirsbo Q4760500 Propex 90 Elbow is designed to make 90-degree connections for Uponor crosslinked polyethylene (PEX-a) tubing in hot and cold domestic potable water systems, residential fire safety, and hydronic radiant heating and cooling systems. Each end features an Uponor ProPEX fitting for connections to Uponor AquaPEX or Wirsbo hePEX tubing.

• Elbow fitting for 90-degree connections
• Suitable for PEX-a tubing in potable water and heating systems
• Constructed from durable UDELPolysulfone

Product Highlights

This Propex 90-degree elbow is ideal for creating reliable connections in PEX plumbing and radiant heating applications. It is made from engineered polymer and meets industry standards.

Product Information

Standard Information

• Brand: UPONOR WIRSBO
• Manufacturer Part Number: Q4760500

Technical Specifications

• Nominal Size A: 1/2 inch
• Nominal Size B: 1/2 inch
• Connection Type: PEX
• Material: UDELPolysulfone, 20% Glass-reinforced
• Pressure Rating: 150 psi
• Temperature Rating: 320 Deg F
• Standards: CAN/CSA B137.5, ASTM F877, ASTM F1960, IAPMO 3558, ANSI/NSF 14 and 61, HUD MR 1269, ICC ESR 1099
• Dimension A: 1.30 inch
• Dimension B: 1.30 inch
• End Type 1: ProPEX
• End Type 2: ProPEX
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• End Size 1 [inch|mm]: 1/2"
• End Size 2 [inch|mm]: 1/2"
• Material group: Engineered Polymer
• Cv: 2.6
• A [inch]: 0.719 inch
• A [frac]: 23/32 inch
• B [inch]: 0.55 inch
• B [frac]: 35/64 inch
• C [inch]: 0.55 inch
• C [frac]: 35/64 inch
• D [inch]: 1.578 inch
• D [frac]: 1 37/64 inch
• E [inch]: 1.578 inch
• E [frac]: 1 37/64 inch
• F [inch]: 0.87 inch
• F [frac]: 7/8 inch
• Equivalent length through [ft]: 10.4 ft
• G [frac]: 9/32 inch
• G [inch]: 0.28 inch
• Operating Pressure 1 [bar]: 11 bar
• Operating Pressure 2 [bar]: 6.9 bar
• Operating Pressure 3 [bar]: 5.5 bar
• Operating Temperature 1 [°C]: 23 °C
• Operating Temperature 2 [°C]: 82 °C
• Operating Temperature 3 [°C]: 93 °C
• A [mm]: 18.26 mm
• B [mm]: 13.97 mm
• C [mm]: 13.97 mm
• D [mm]: 40.09 mm
• E [mm]: 40.09 mm
• F [mm]: 22.10 mm
• Equivalent length through [m]: 3.17 m
• G [mm]: 7.11 mm
• Sub Brand: ProPEX
• Item Name: 90 DEG Elbow
• Nominal Size: 1/2 IN
• Length: 1.578 IN
• Width: 1.578 IN
• Height: 0.87 IN
• Other Physical Dimension: 10.4 FT Equivalent Length Through
• Additional Specifications: Flow Co-Efficient(Cv): 2.6
• Domestic/Import: Domestic
• End Style: ProPEX®
