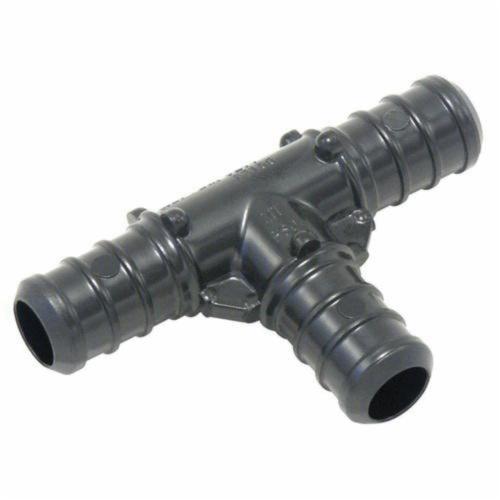

Uponor Wirsbo Q4755050 Plastic Pex Tee 1/2 Inch

Product Description

The UPONOR WIRSBO Q4755050 is a 1/2" Plastic Pex Tee. This ProPEX engineered plastic (EP) tee makes diverting connections for Uponor PEX tubing in supply and return mains. It is designed for PEX-a Plumbing Systems, Radiant Heating And Cooling Systems.

• ProPEX engineered plastic (EP) tee makes diverting connections for Uponor PEX tubing in supply and return mains.
• 5-year limited warranty
• For PEX-a Plumbing Systems, Radiant Heating And Cooling Systems

Product Highlights

The UPONOR WIRSBO Q4755050 is ideal for creating diverting connections in PEX tubing systems.

Product Information

Standard Information

• Brand: UPONOR WIRSBO
• Manufacturer Part Number: Q4755050

Technical Specifications

• Part no.: Q4755050
• End Type 1: ProPEX
• End Type 2: ProPEX
• End Type 3: ProPEX
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• End Size 1 [inch|mm]: 1/2"
• End Size 2 [inch|mm]: 1/2"
• End Size 3 [inch|mm]: 1/2"
• Material group: Engineered Polymer
• Cv Branch: 3.4
• Cv Through: 7.7
• Operating Pressure 1 [bar]: 11 bar
• Operating Pressure 2 [bar]: 6.9 bar
• Operating Pressure 3 [bar]: 5.5 bar
• Operating Temperature 1 [°C]: 23 °C
• Operating Temperature 2 [°C]: 82 °C
• Operating Temperature 3 [°C]: 93 °C
• Brand: Uponor Wirsbo
• Sub Brand: ProPEX™
• Item Name: Tee
• Nominal Size: 1/2 x 1/2 x 1/2 Inch
• Connection Type: PEX Barb x PEX Barb x PEX Barb
• Material: Engineered Plastic
• Length: 2-1/2 Inch
• Width: 1.53 Inch
• Pressure Rating: 150 psi
• Temperature Rating: 160 deg C Maximum, 90 deg C at 150 psi Working
