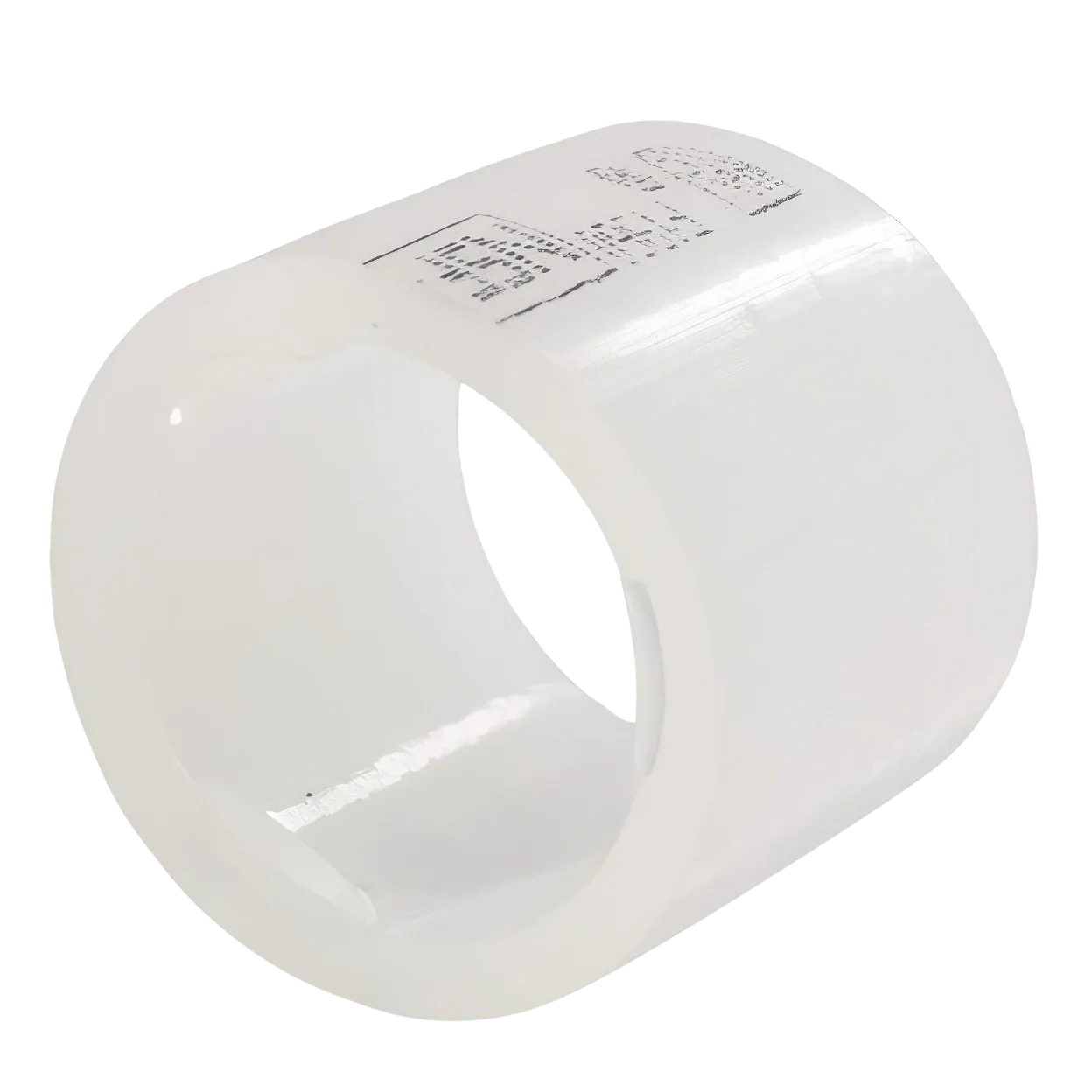

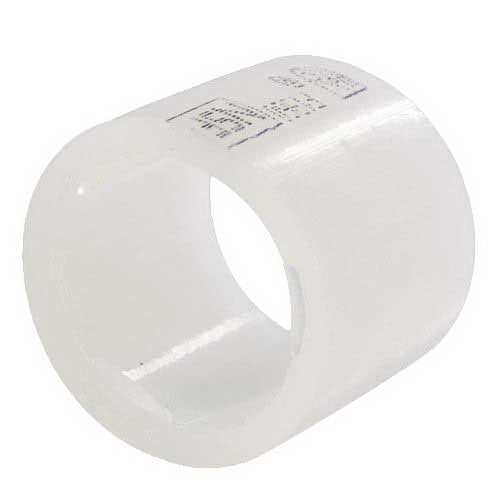

Uponor Wirsbo Q4692000 ProPEX 2 inch Connection Ring With Stop

Product Description

The Uponor Wirsbo Q4692000 is a ProPEX connection ring designed for reliable pipe connections. This ring has a nominal size of two inches and is made from Engel-Method Crosslinked Polyethylene (PEX-a). It features a stop edge to secure the pipe connection and includes a leading edge chamfer for easy installation.

• Required for proper ProPEX connections
• Includes a leading edge chamfer and stop edge
• Standards/Approvals: ANSI/NSF Certified, ASTM E119/UL 263

Product Highlights

This connection ring is used in PEX plumbing systems and provides a secure connection for pipes. It meets various industry standards ensuring reliability in installations.

Product Information

Standard Information

• Item: Ring with Stop
• Nominal Size: 2 inch

Technical Specifications

• Nominal Size A: 2 inch
• Nominal Size B: Stop
• Connection Type: PEX x PEX
• Material: Polyphenylsulfone
• Pressure Rating: 200 psi
• Temperature Range: 200 Deg F
• Inner Diameter: 2.14 inch
• Outer Diameter: 2.61 inch
• Length: 1.97 inch
