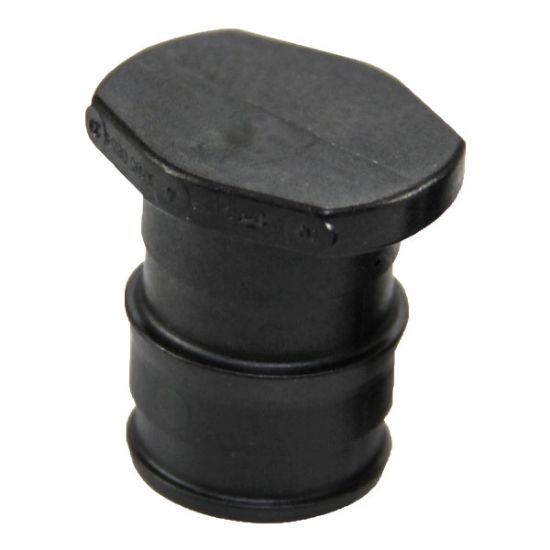

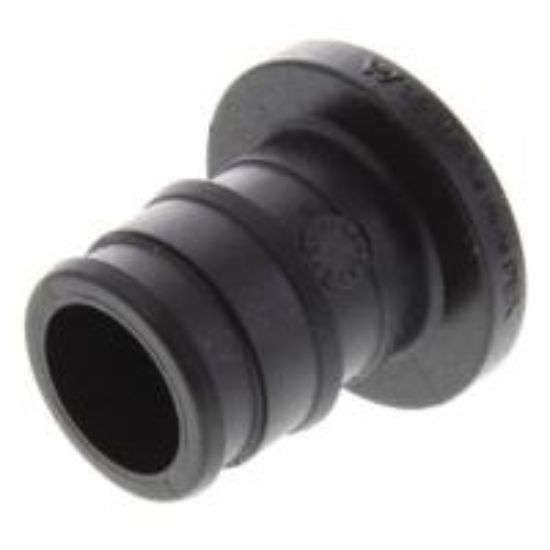

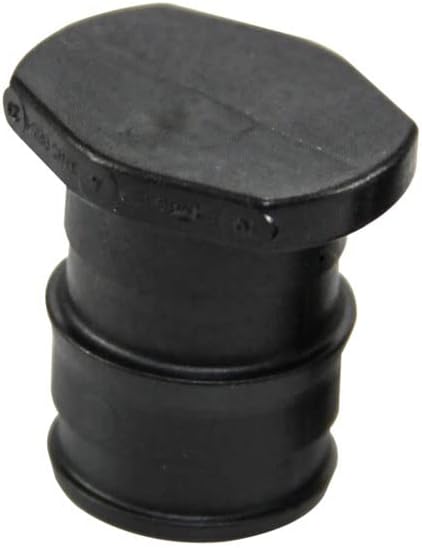

Uponor Wirsbo Q4350500 1/2 inches PLS PEX Plug

Product Description

The UPONOR WIRSBO Q4350500 is a 1/2" PLS PEX Plug. Designed for use in Uponor AquaPEX plumbing, AquaSAFE fire sprinkler, and radiant heating and cooling systems. This plug is compatible with 1/2" Uponor AquaPEX or Wirsbo hePEX pipe. It features a durable ProPEX connection.

• For use in Uponor AquaPEX plumbing systems, AquaSAFE fire sprinkler systems, or radiant heating and cooling systems
• Use with 1/2" Uponor AquaPEX or Wirsbo hePEX pipe only
• Features the durable ProPEX connection that can't be dry fit

Product Highlights

The UPONOR WIRSBO Q4350500 1/2" PLS PEX Plug is ideal for plumbing, fire sprinkler, and radiant heating and cooling systems.

Product Information

Standard Information

• Brand: UPONOR WIRSBO
• Manufacturer Part Number: Q4350500

Technical Specifications

• Nominal Size: 1/2 Inch
• Standard/Approvals: CAN, CSA B137.5 Certified, ANSI, NSF 14, UL 1821 Listed
• Application: Domestic Potable Water Distribution Systems
• End Type 1: ProPEX
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• End Size 1 [inch|mm]: 1/2"
• Material group: Engineered Polymer
• Operating Pressure 1 [bar]: 11 bar
• Operating Pressure 2 [bar]: 6.9 bar
• Operating Pressure 3 [bar]: 5.5 bar
• Operating Temperature 1 [°C]: 23 °C
• Operating Temperature 2 [°C]: 82 °C
• Operating Temperature 3 [°C: 93 °C
• Brand: Uponor
• Material: Pex
• Connector type: Plug
• Part Number: Q4350500
• Item model number: Q4350500
• Item Package Quantity: 1
• Measurement System: Inch
• Certification: REACH
• Included Components: ProPEX EP Plug for 1/2" PEX
• Batteries Required?: No
• Connection End: PEX
• Fitting Size 1: 1/2 in
• Fitting Sizes: 1/2 in
• Length: 6/7 in
• Material Type: Engineered Polymer
• Maximum Temperature: 200
• Minimum Temperature: 73
• Maximum Pressure: 160 psi
• Technical Specifications - ANSI: ANSI 14;ANSI 61
• Technical Specifications - ASTM: ASTM E-119;ASTM E-814;ASTM F-1960;ASTM F-877
• Technical Specifications - CSA Certified: CSA B137.5
• Technical Specifications - IAPMO Approved: Yes
• Technical Specifications - NSF: NSF 14;NSF 61
• Technical Specifications - NSF Certified: Yes
• Technical Specifications - UL Approved: Yes
• Style Name: ProPEX
• Width: 87/100 in
• Product Type: Plastic Plugs
