Uponor Wirsbo Q4020500 Manifold Fitting Assembly 1/2 in R20 Thread

Product Description

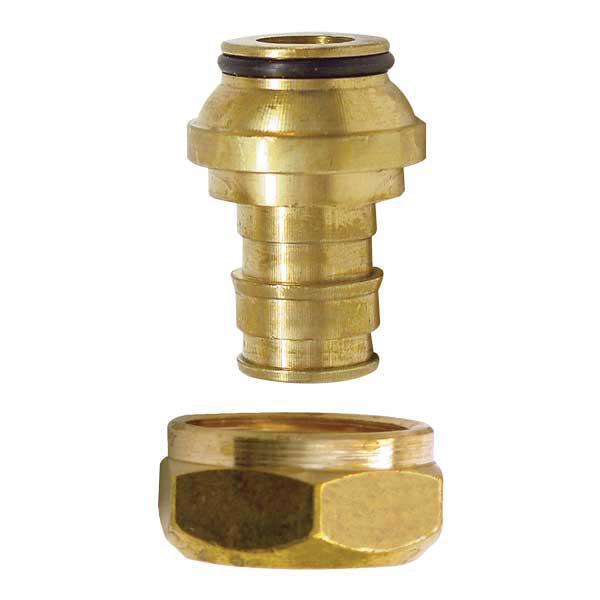

The UPONOR WIRSBO Q4020500 manifold fitting assembly with ProPEX insert connects 3/8 in through 3/4 in Uponor PEX tubing to stainless-steel, brass and EP heating manifolds. This fitting assembly includes a ProPEX insert and R20 swivel nut and has a pressure rating of 125 psi and a temperature rating of 220 deg F.

• ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
• ASTM F1960 specification for cold expansion fittings with PEX reinforcing rings for use with cross-linked polyethylene (PEX) tubing
• Connects PEX-a tubing to manifolds

Product Highlights

The UPONOR WIRSBO Q4020500 fitting assembly connects PEX tubing to manifolds and includes a ProPEX insert and R20 swivel nut.

Product Information

Standard Information

• Brand: UPONOR WIRSBO
• Manufacturer Part Number: Q4020500

Technical Specifications

• End Style: R20 Thread
• Fitting/Connector Type: Coupling
• Material: Brass
• Nominal Size: 1/2 In
• Pressure Rating: 125 psi
• Temperature Rating: 220 deg F
• Part Number: Q4020500
