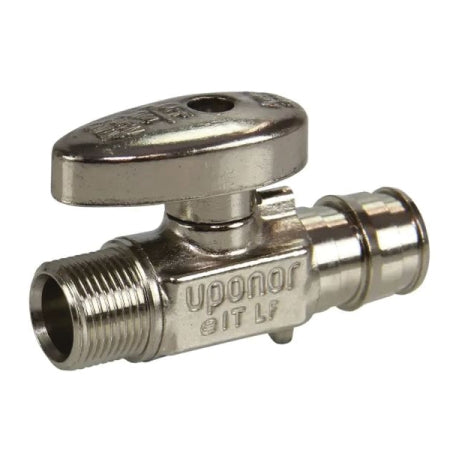

Uponor Wirsbo LF5865038 ProPEX LF Brass Straight Stop Valve, 1/2 inches x 3/8 inches

Product Description

The UPONOR WIRSBO LF5865038 ProPEX LF brass straight stop valve is designed for point-of-use shutoff at the fixture. It features a 1/2" PEX x 3/8" OD Comp connection. This full port valve is constructed from lead-free brass and suitable for PEX-a plumbing systems.

• Full Port Straight Stop Valve
• 1/2" PEX x 3/8" Compression Connection
• Maximum operating pressure of 145 psi and temperature rating of 194 Deg F

Product Highlights

The UPONOR WIRSBO LF5865038 is ideal for providing reliable shutoff at fixtures, ensuring efficient plumbing system management.

Product Information

Standard Information

• Brand: UPONOR WIRSBO
• Manufacturer Part Number: LF5865038

Technical Specifications

• End Size 1 [inch|mm]: 1/2"
• End Size 2 [inch|mm]: 3/8"
• End Type 1: ProPEX
• End Type 2: UNEF
• Operating Pressure 1 [PSI]: 145 psi
• Operating Temperature 1 [°F]: 194 °F
• Material group: LF Brass
• Material Valve: Lead Free Brass
• Type: Full Port
• Nominal Size: 1/2 inch x 3/8 inch
• Connection Type: PEX x Compression
• Operating Pressure: 145 psi max
• Body Material: Lead-Free Brass
• Temperature Rating: 194 Deg F
• Dimensions: 1.97 inch L x 1.33 inch D
• Finish: Chrome Plated
• Item Name: Straight Stop Valve
• Material: Brass
• Pressure Rating: 145 psi
