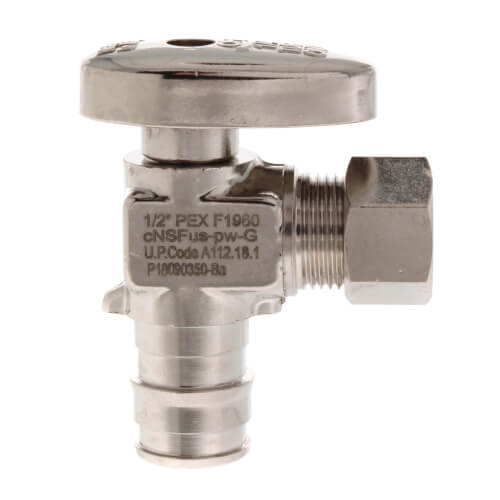

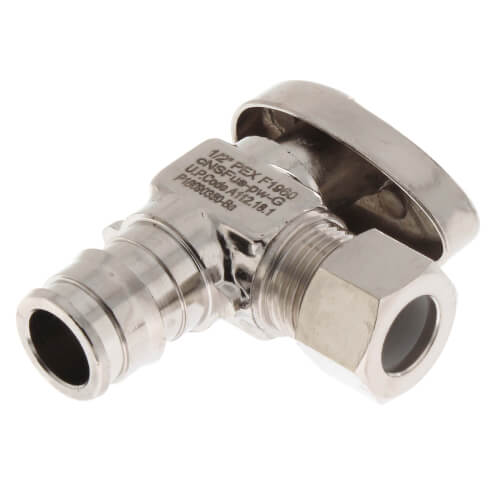

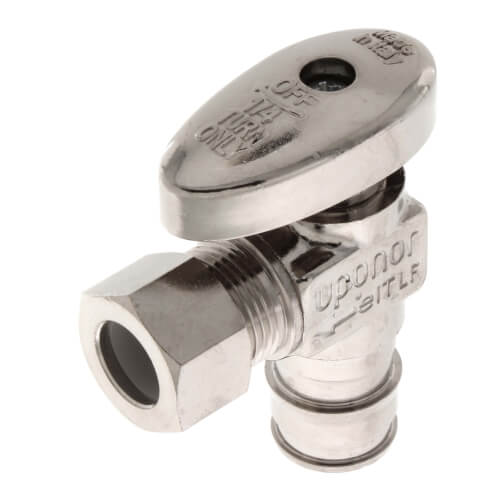

Uponor Wirsbo LF4855038 ProPEX 1/2 inch x 3/8 inch PEX x Compression Lead-Free Brass Full Port Angle Stop Valve

Product Description

The Uponor Wirsbo LF4855038 ProPEX angle stop valve features a full port design and is constructed from lead-free brass. This valve is designed for PEX-a plumbing systems, offering point-of-use shutoff at the fixture. It has a 1/2 inch x 3/8 inch nominal size with PEX x Compression connection type and quarter turn handle.

• Full Port design
• Constructed from Lead-Free Brass
• Features a Quarter Turn Handle

Product Highlights

This angle stop valve is ideal for use in PEX-a plumbing systems, providing reliable shutoff at the fixture.

Product Information

Standard Information

• Brand: UPONOR WIRSBO
• Manufacturer Part Number: LF4855038

Technical Specifications

• Sub Brand: ProPEX®
• Type: Full Port
• Nominal Size: 1/2 inch x 3/8 inch
• Connection Type: PEX x Compression
• Media: Water
• Operating Pressure: 145 psi max
• Body Material: Lead-Free Brass
• Actuation/Operator: Quarter Turn Handle
• Temperature Rating: 194 Deg F
• For Use With: PEX-a Plumbing Systems
• Finish: Chrome Plated
• Dimensions: 2.02 inch L x 1.32 inch D
• Applications: For Point-Of-Use Shutoff at the Fixture
• Standards/Approvals: ASTM F877, ASTM F1960, ASME A112.18.1, CSA B137.5, CSA B125, ANSI 14/61, NSF 14/61, IPC, UPC, NSPC, NPC of Canada Certified
• Application: Plumbing, Heating
• Size: 1/2" x 3/8"
• Material: Brass
• Fitting System Compatibility: Expansion PEX
• Standards Met: ASTM F877, ASTM F1960
• Lead Free: Yes
• Tubing Compatibility: PEX
• Body Pattern: Angle
• Warranty: 5 Year
• Item Name: Angle Stop Valve
