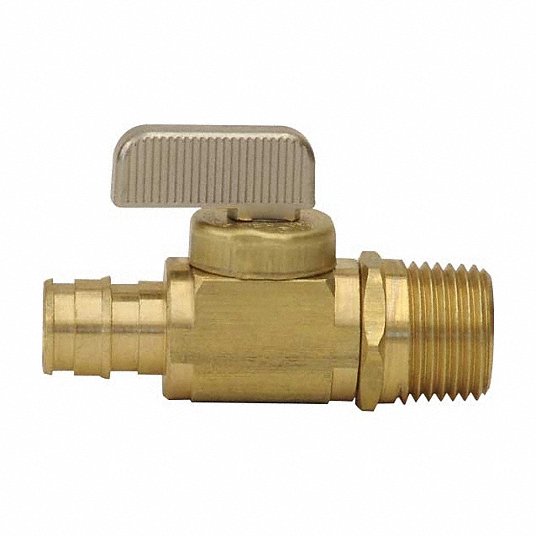

Uponor Wirsbo LF4795050 ProPEX LF Brass Ball Valve 1/2 inches PEX x 1/2 inches MIP

Product Description

The UPONOR WIRSBO LF4795050 ProPEX LF Brass Ball Valve is a lead-free ball valve that functions as a shut-off valve between Uponor AquaPEX piping and male iron pipe (MIP). It is manufactured from high-quality lead-free brass, ensuring compliance with safe drinking water standards and superior resistance to corrosion. It is also ASTM F1960 Compliant.

• Lead-free construction
• Shut-off valve for Uponor AquaPEX® piping
• Connection to male iron pipe (MIP)

Product Highlights

This lead-free brass ball valve connects Uponor AquaPEX piping to male iron pipe, ensuring safe drinking water and corrosion resistance.

Product Information

Standard Information

• Brand: UPONOR WIRSBO
• Manufacturer Part Number: LF4795050

Technical Specifications

• End Type 1: ProPEX
• End Type 2: MNPT
• Cold working pressure (CWP) [psi]: 249.5 psi
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Pressure 4 [PSI]: 149 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• Operating Temperature 4 [°F]: 210 °F
• Prop 65 label required?: Yes
• End Size 1 [inch|mm]: 1/2"
• End Size 2 [inch|mm]: 1/2"
• Material group: LF Brass
• A [inch]: 2.459 inch
• B [inch]: 1.657 inch
• C [inch]: 1.155 inch
• D [inch]: 0.709 inch
• E [inch]: 0.5 inch
• F [inch]: 0.5 inch
• G [inch]: 1.2 inch
• Brand: Uponor
• MPN: LF4795050
• Suitable Media: Oil, Water
• Housing Material: Brass
• WOG Rating: 200 psi
• Valve Operation: Manual
• Technical Standard: National Pipe Taper (NPT)
• WSP Rating: 200 psi
