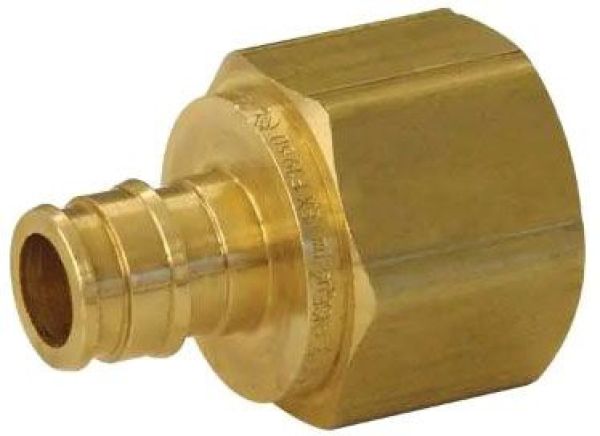

Uponor Wirsbo LF4575050 ProPEX LF Brass Female Threaded Adapter 1/2 inches PEX x 1/2 inches NPT

Product Description

The Uponor Wirsbo LF4575050 ProPEX LF Brass Female Threaded Adapter transitions PEX tubing to copper fittings. It features a 1/2" PEX connection to Wirsbo hePEX or Uponor AquaPEX tubing and a 1/2" FNPT connection. This adapter is safe for direct burial in soil and suitable for hot and cold domestic potable water and hydronic radiant heating systems.

• Transitions PEX tubing to copper fittings
• Safe for direct burial in soil
• Suitable for hot and cold domestic potable water systems

Product Highlights

ProPEX lead-free brass fitting adapter connects Uponor PEX-A tubing to female NPT threads.

Product Information

Standard Information

• Brand: UPONOR WIRSBO
• Manufacturer Part Number: LF4575050

Technical Specifications

• Part no.: LF4575050
• End Size 1 [inch|mm]: 1/2"
• End Size 2 [inch|mm]: 1/2"
• End Type 1: ProPEX
• End Type 2: FNPT
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• Material group: LF Brass
• Prop 65 label required?: Yes
• Operating Pressure 1 [bar]: 11 bar
• Operating Pressure 2 [bar]: 6.9 bar
• Operating Pressure 3 [bar]: 5.5 bar
• Operating Temperature 1 [°C]: 23 °C
• Operating Temperature 2 [°C]: 82 °C
• Operating Temperature 3 [°C]: 93 °C
• Connection Size 1: 1/2 in
• Connection Size 2: 1/2 in
• Connection Type: PEX x FNPT
• Dimensions: 1.57 in L
• Fitting Type: Adapter
• Material: C69300 Brass
• Material Construction: Brass
• Pressure Rating: 200 lb/sq-in
• Temperature Rating: 200 deg F
• Manufacturer: Uponor
• Additional Information: Lead-Free
• Applicable Standard: ANSI/NSF 14/61, CAN/CSA B137.5, ICC ESR 1099, HUD MR 1269, UL 1821, IPC, NPC (Canada), NSPC, UPC
• Application: For use in hot and cold domestic potable water systems and hydronic radiant heating systems
• Brand: Uponor
• End Connection: ProPEX x Female Threaded
• Fitting Size: 1/2 in
• Material Specification: ASTM F877/F1960
• Material Standard: ASTM F-1960, ASTM F-877
• Product Features: Brass Female Threaded Adapter Connects Uponor PEX-A Tubing to Female NPT Threads; Use these Fittings in Hot and Cold Domestic Potable Water Systems, Residential Fire Sprinkler Systems or Hydronic Radiant Heating and Cooling Systems; One End of the Adapter is Manufactured with the Uponor Propex Fitting for Connections to Wirsbo Hepex Tubing or Uponor Aquapex Tubing; The Other End of the Adapter Connects to Copper; These Adapters are Safe for Direct Burial in Soil; Lead-Free
• Size A: 1/2 Inch
• Size B: 1/2 Inch
• Standards/Approvals: ANSI/NSF 14 and 61, C/CSA B137.5 Certified, ULC/ORD C199P
• Type: Straight
• UNSPSC: 40171701
