Uponor Wirsbo LF4521010 1 PEX X 1 MIP Adapt

Product Description

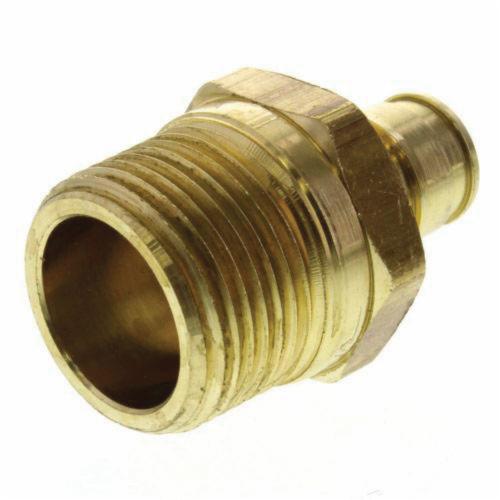

The Uponor Wirsbo LF4521010 is a tube to pipe adapter. It features a 1 inch ProPEX x MNPT end style. Constructed of lead-free brass, it ensures compliance with lead-free legislation. This adapter provides strong, durable connections without torches, glues, solvents, or gauges.

• Lead-free brass transition fittings
• NSF us-pw-G marking for lead-free compliance
• ProPEX fitting system for strong, durable connections

Product Highlights

Lead-free brass adapter with ProPEX connection for PEX tubing to MNPT threads, ideal for potable water and radiant heating systems.

Product Information

Standard Information

• Brand: UPONOR WIRSBO
• Manufacturer Part Number: LF4521010
• Country of Origin: US

Technical Specifications

• Nominal Size: 1 Inch
• End Style: ProPEX x MNPT
• Length: 2.46 Inch
• Working Pressure: 200 psi
• Material: Brass
• Material Specification: ASTM F877/F1960
• Temperature Rating: 200 deg F
• End Type 1: ProPEX
• End Type 2: MNPT
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• End Size 1 [inch|mm]: 1"
• End Size 2 [inch|mm]: 1"
• Cv: 19.9
• Material group: LF Brass
• A [inch]: 2.286 inch
• A [frac]: 2 9/32 inch
• B [inch]: 1.105 inch
• B [frac]: 1 7/64 inch
• C [inch]: 1.502 inch
• C [frac]: 1 1/2 inch
• D [inch]: 0.422 inch
• D [frac]: 27/64 inch
• E [inch]: 1.181 inch
• E [frac]: 1 3/16 inch
• F [inch]: 1.335 inch
• F [frac]: 1 21/64 inch
• Equivalent length through [ft]: 3.2 ft
• G [frac]: 3/4 inch
• G [inch]: 0.751 inch
• Connection Type: PEX x Male NPT
• Fitting Type: Adapters & Reducing Adapters
• Material Construction: Brass
• Product Type: PEX Brass
• Domestic/Import: Domestic
• Size: 1 in
• Series: ProPEX
• Pressure Rating: 160 psi
