Uponor Wirsbo LF4515050 Lf4515050 1/2 Pex X 1/2 C Adpt

Product Description

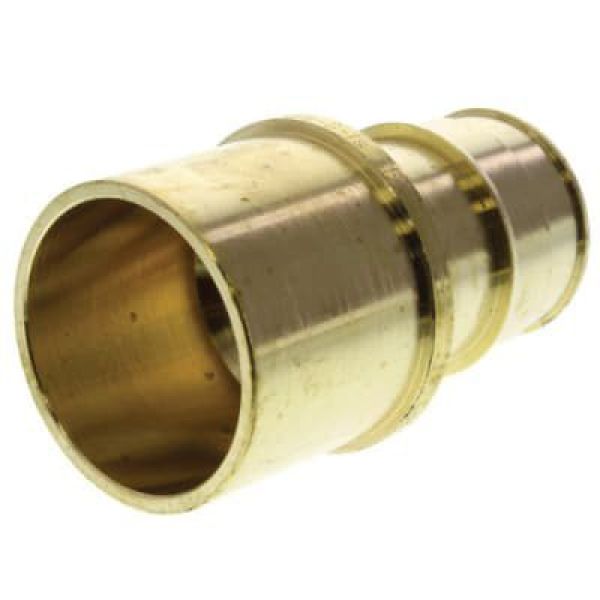

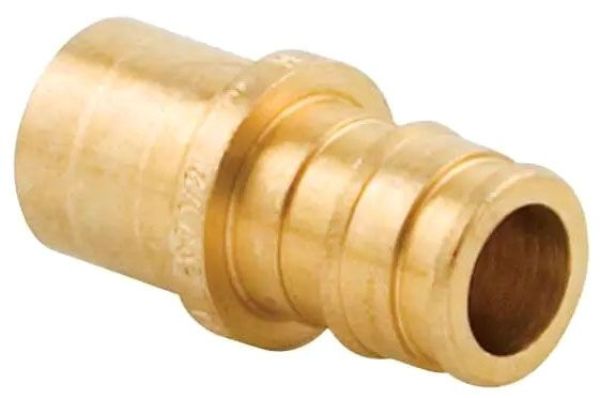

The UPONOR WIRSBO LF4515050 is a 1/2 PEX X 1/2 C ADPT. This lead-free brass sweat adapter transitions Uponor AquaPEX or Wirsbo hePEX pipe to copper pipe. It is approved for use in hot and cold domestic potable-water systems and hydronic radiant heating and cooling systems.

• For use in Uponor AquaPEX plumbing systems or Uponor radiant heating and cooling systems
• Use with 1/2" Uponor AquaPEX or Wirsbo hePEX pipe only
• Made of high-quality, lead-free brass for use in potable-water applications

Product Highlights

The UPONOR WIRSBO LF4515050 adapter is safe for direct burial in soil and features a durable ProPEX connection.

Product Information

Standard Information

• Brand: UPONOR WIRSBO
• Manufacturer Part Number: LF4515050

Technical Specifications

• Cv: 5.7
• End Size 1 [inch|mm]: 1/2"
• End Size 2 [inch|mm]: 1/2"
• End Type 1: ProPEX
• End Type 2: Sweat
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• Prop 65 label required?: Yes
• Material group: LF Brass
• Size: 1/2 in. x 1/2 in.
• Material: Brass
• Brand: Uponor
• Connector Type: Adapter
• Exterior Finish: Brass
• Manufacturer: Uponor
• Part Number: LF4515050
• Item model number: LF4515050
• Item Package Quantity: 1
• Measurement System: inch
• Included Components: ProPEX LF Brass Sweat Adapter, 1/2" PEX x 1/2" Copper
• Connection Size 1: 1/2 in
• Connection Size 2: 1/2 in
• Connection Type: PEX|Copper
• Fitting Type: Sweat Adapter
• Pressure Rating: 200 psi
• Temperature Rating: 200 deg F
• Additional Information: Lead-Free
• Applicable Standard: ANSI/NSF 14/61, NSF 372, CSA B137.5, UPC, IPC, NSPC, NPC, ICC-ES-PMG, HUD-MR-1269, UL 1821
• Application: For use in hot and cold domestic potable water systems and hydronic radiant heating systems
• End Connection: ProPEX x Soldered
• Fitting Size: 1/2 in
• Material Specification: ASTM F877/F1960
• Material Standard: ASTM F-1960, ASTM F-877
• Product Features: Brass Sweat Adapters Transition Uponor PEX Tubing to Copper Pipe for Use in Hot and Cold Domestic Potable Water Systems, Residential Fire Safety and Hydronic Radiant Heating and Cooling Systems; These Adapters are Safe for Direct Burial in Soil; Lead-Free
• Size A: 1/2 Inch
• Size B: 1/2 Inch
• Standards/Approvals: ANSI/NSF 14 and 61, C/CSA B137.5 Certified, ULC/ORD C199P
• Type: Straight
• UNSPSC: 40171701
• Connection Type 1: PEX
• Connection Type 2: Copper
• Material Construction: Brass
