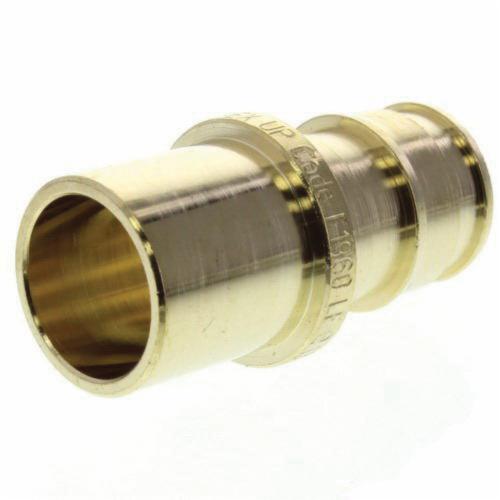

Uponor Wirsbo LF4505050 Adapter 1/2 inch PEX x 1/2 inch Copper

Product Description

The Uponor Wirsbo LF4505050 adapter transitions PEX tubing to copper fittings. It features brass construction and is approved for use in hot and cold domestic potable water and hydronic radiant heating systems. One end has an Uponor ProPEX fitting for connections to Wirsbo hePEX or Uponor AquaPEX tubing and is safe for direct burial in soil.

• Lead-Free
• Brass construction
• PEX Barb x Copper Fitting

Product Highlights

This adapter transitions PEX tubing to copper fittings and is suitable for potable water and radiant heating systems.

Product Information

Standard Information

• Brand: UPONOR WIRSBO
• Manufacturer Part Number: LF4505050

Technical Specifications

• Nominal Size A: 1/2 inch
• Nominal Size B: 1/2 inch
• Connection Type: PEX X Copper Sweat
• Material: Brass
• Pressure Rating: 200 psi
• Temperature Rating: 200 Deg F
• Standards: ASTM F877, ASTM F1960
• Outer Diameter: 0.740 inch
• Length: 1.39 inch
• End Type 1: ProPEX
• End Type 2: Sweat
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• End Size 1 [inch|mm]: 1/2"
• End Size 2 [inch|mm]: 1/2"
• Sub Brand: ProPEX
• Item Name: Adapter
• Nominal Size: 1/2 IN
• Width: 0.624 IN
• Material Standard: ASTM F877, ASTM F1960
• Lead Free: Yes
• Industry Standards: UPC, IBC, IRC, IPC, NPC of Canada, UMC, USEHC, NSPC, IMC, NSF-372, CSA B137.5, NSF-61, NSF-14, HUD MR 1269, ICC-ES-PMG, cNSFus-pw-G, U.P.Code
• Connection Size 1: 1/2 in
• Connection Size 2: 1/2 in
