Uponor Wirsbo lf4235050 lf4235050 1/2x1/2 pxfip drp 90

Product Description

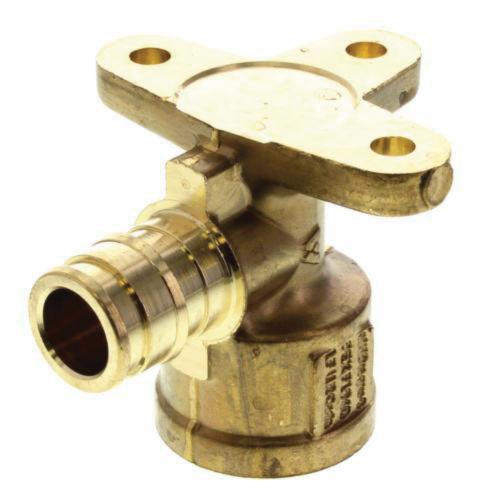

The UPONOR WIRSBO LF4235050 is a 1/2X1/2 PXFIP DRP 90. This lead-free brass drop ear elbow adapter fitting is designed for PEX to FNPT connections. It is suitable for potable water distribution and radiant heating systems. The fitting offers a 90-degree bend for versatile installation.

• Lead-Free
• Brass Construction
• Elbow Adapter

Product Highlights

Lead-free brass elbow adapter fitting with a 90-degree bend for PEX to FNPT connections.

Product Information

Standard Information

• Brand: UPONOR WIRSBO
• Manufacturer Part Number: LF4235050

Technical Specifications

• End Size 1 [inch|mm]: 1/2"
• End Size 2 [inch|mm]: 1/2"
• End Type 1: ProPEX
• End Type 2: FNPT
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• Material group: LF Brass
• Prop 65 label required?: Yes
• A [inch]: 1.696 inch
• B [inch]: 0.653 inch
• C [inch]: 1.043 inch
• D [inch]: 0.531 inch
• E [inch]: 0.709 inch
• F [inch]: 2.203 inch
• G [inch]: 1.926 inch
• H [inch]: 0.934 inch
• Operating Pressure 1 [bar]: 11 bar
• Operating Pressure 2 [bar]: 6.9 bar
• Operating Pressure 3 [bar]: 5.5 bar
• Operating Temperature 1 [°C]: 23 °C
• Operating Temperature 2 [°C]: 82 °C
• Operating Temperature 3 [°C]: 93 °C
• A [mm]: 43.09 mm
• B [mm]: 16.59 mm
• C [mm]: 26.50 mm
• D [mm]: 13.50 mm
• E [mm]: 18 mm
• F [mm]: 55.96 mm
• G [mm]: 48.92 mm
• H [mm]: 23.72 mm
• Connection Size 1: 1/2 in
• Connection Size 2: 1/2 in
• Connection Type: ProPEX x FNPT
• Fitting Type: PEX Elbow
• Material Construction: Brass
• Material: Brass
• Pressure Rating: 160 PSI
• Temperature Rating: 250 deg F
• Type: Drop Ear, Straight, 90D, Elbow Adapter
• Bend Angle: 90 Deg
• Nominal Size A: 1/2 inch
• Nominal Size B: 1/2 inch
• Connection Type 1: PEX
• Connection Type 2: FNPT
