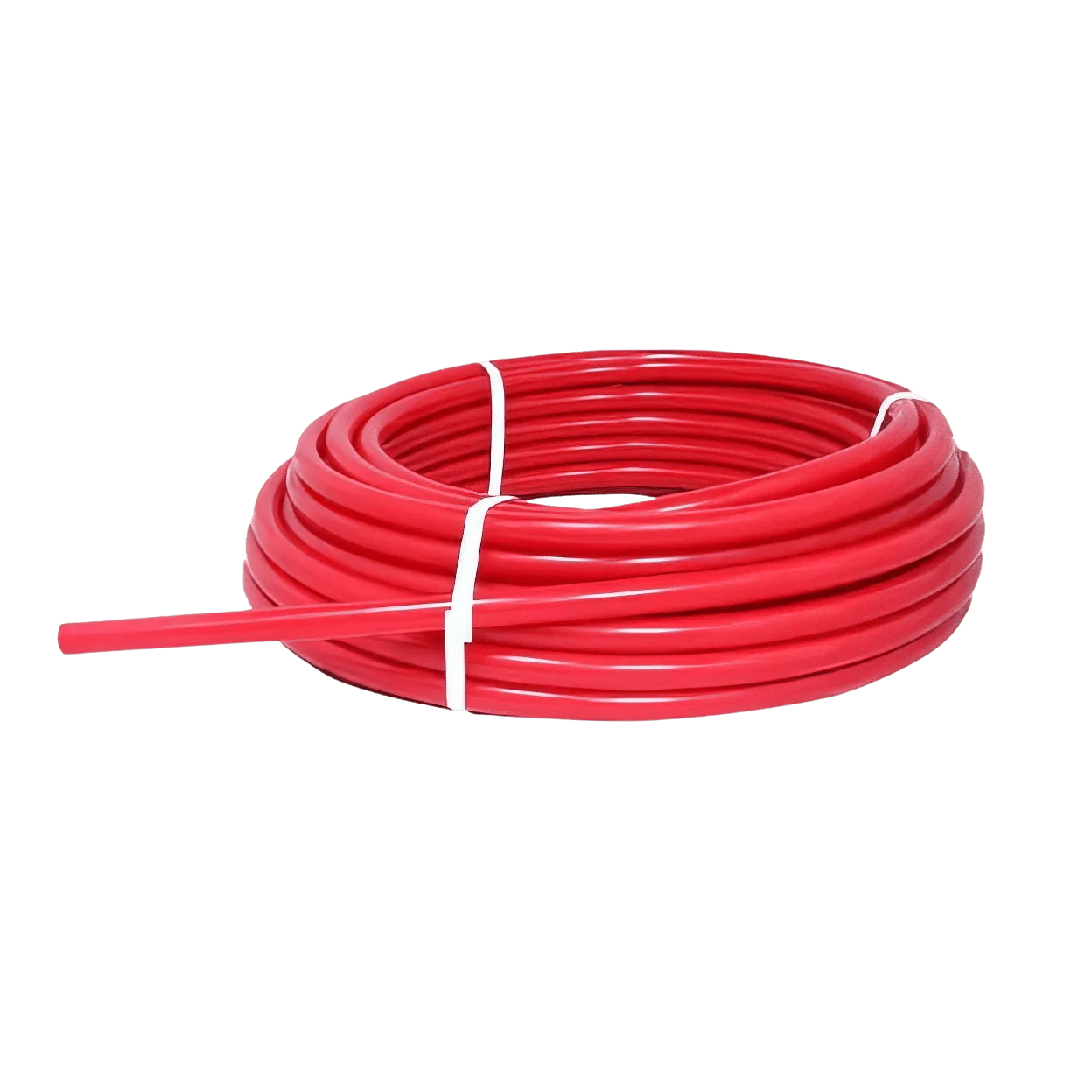

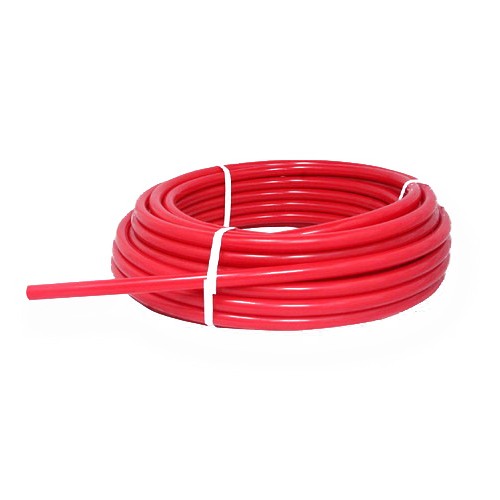

Uponor Wirsbo F2040500 AquaPEX 1/2 inch x 100 ft Polyethylene PEX Tubing, Red

Product Description

Uponor Wirsbo F2040500 AquaPEX tubing provides a reliable solution for water distribution. This tubing features a non-barrier PEX material and is available in a length of one hundred feet. It is marked with the PEX 5306 designation as required by ASTM F876, ensuring compliance with chlorine-resistance standards for systems operating up to one hundred forty degrees Fahrenheit.

• Type: Non-Barrier, PE 5306
• Material: Polyethylene
• Color: Red

Product Highlights

Designed for both hot and cold water applications, this tubing is ideal for residential plumbing and hydronic heating systems.

Product Information

Standard Information

• Nominal Size: 1/2 inch
• Length: 100 ft

Technical Specifications

• Material: PEX
• Maximum PSI: 160 psi
• Wall Inner Diameter: 0.475 inch
• Wall Outer Diameter: 0.625 inch
• Approvals: CSA B137.5; ASTM F876; ASTM F877; ASTM F1960; ASTM-E84; ASTM-E119/UL 263
• Temperature Rating: 73.4 to 200 Deg F
• Pressure Rating: 80 to 160 psi
