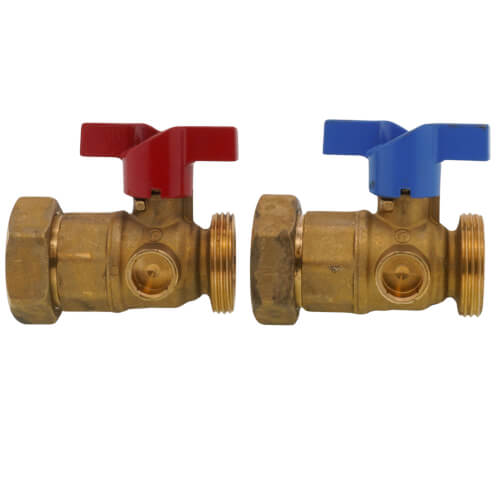

Uponor Wirsbo A2631252 TruFLOW Manifold Supply and Return Ball Valves Set of 2

Product Description

The Uponor Wirsbo A2631252 manifold supply and return ball valves are designed to connect seamlessly to Uponor TruFLOW and Engineered Polymer Heating Manifolds. This set includes two full-flow, one and one-quarter inch ball valves, suitable for controlling the supply to the heating manifolds. The robust construction ensures reliability in heating applications.

• Connection Size: one and one-quarter inch
• Max Temperature: 220°F
• Max Pressure: 145 PSI

Product Highlights

These ball valves effectively manage the flow of water in heating systems, ensuring efficient performance.

Product Information

Standard Information

• Material: Brass
• Application: Accessory

Technical Specifications

• Connection Size: one and one-quarter inch
• Max Temperature: 220°F
• Max Pressure: 145 PSI
• Warranty: 10 Year
• Cv: 23.8
• End Size 1: one and one-quarter inch
• End Size 2: one and one-quarter inch
• End Type 1: ISO 228-G
• End Type 2: ISO 228-G
• Operating Pressure 1: 160 PSI
• Operating Pressure 2: 100 PSI
• Operating Pressure 3: 80 PSI
• Operating Temperature 1: 73°F
• Operating Temperature 2: 180°F
• Operating Temperature 3: 200°F
• Material Group: Brass
• Prop 65 Label Required: Yes
• Standards: R32: ISO 228-G, ASTM F877
