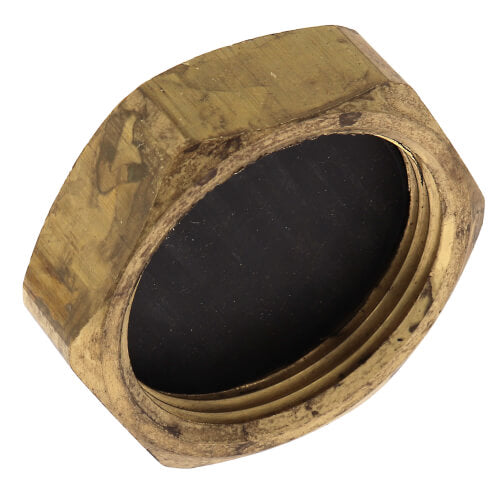

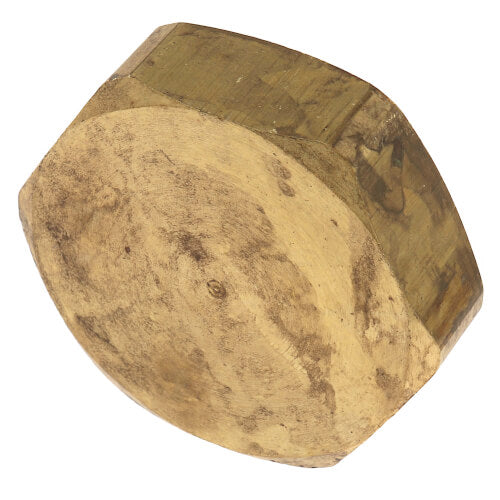

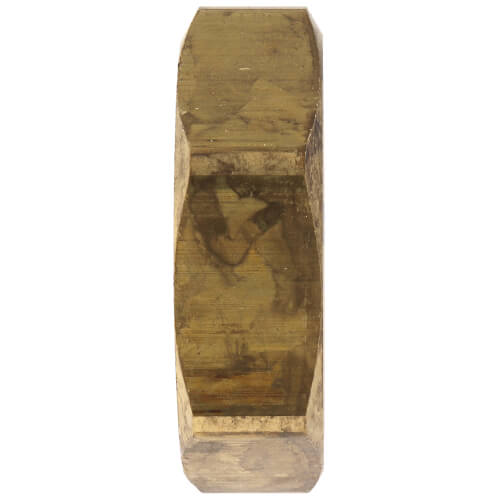

Uponor Wirsbo A2080032 Basic End Cap R32

Product Description

The Uponor Wirsbo A2080032 Basic End Cap is designed to be used with one and one-fourth inch brass manifolds. It effectively terminates the end of the TruFLOW Jr. Modular manifolds. A required gasket is included for a secure fit. This component is made of brass and is compliant with NSF, ASTM F1960, and ASTM F877 standards. It is suitable for heating applications.

• Brass construction
• Maximum pressure of 200 PSI
• Meets NSF, ASTM F1960, ASTM F877 standards

Product Highlights

This basic end cap serves as a critical connection point for heating systems, ensuring durability and compliance with industry standards.

Product Information

Standard Information

• Material: UNS C3850 Brass
• Application: Heating

Technical Specifications

• Max Pressure (PSI): 200
• Max Temp (F): 200°F
• Connection Type: R32
• Fitting Type: Cap
• Length: 2-3/4 inches
• Width: 1-3/4 inches
• Height: 3-1/2 inches
• Item Name: Basic End Cap with Vent
• Nominal Size: 1-1/4 inches
